SYSWALL SYSFRAME45-3-PD Bordbrønn For 3 x 45 moduler/3 x 45 moduler under SYSWALL SYSFRAME45-3-PD Bordbrønn For 3 x 45 moduler/3 x 45 moduler under

SYSWALL SYSFRAME45-3-PD Bordbrønn

For 3 x 45 moduler/3 x 45 moduler under

Varenr: 152168
Alt. varenr: SYSFRAME45-3-PD
1 956,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Nothing's swept under the carpet

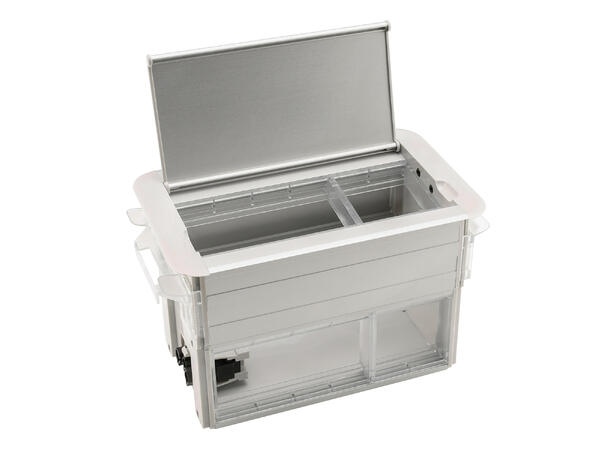

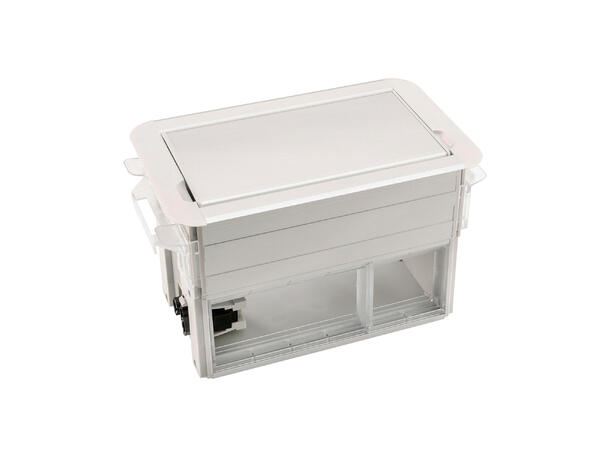

SYSFRAME 45 – the smart one (Steel mounting frame)

...for classrooms, offices, conference halls or any other places where power, data and media connections are needed in a compact, well-priced installation unit. The slim steel frame with its powder-coated surface can be integrated almost anywhere. Owing to the two available sizes it also adapts perfectly to the installation requirements.

The optional cable management tray with side-on connection plane for SYSBOXX front modules also helps to clear the mess under the table; moreover it is perfectly suitable for the integration of e.g. HDMI ® extender solutions.

desk mounting frame 'Light' for 3 SYSWALL45 modules on and under the table Width: 175 mm (6.89 in.) Depth: 112 mm (4.41 in.) Height: 65 mm (2.56 in.) max. desktop thickness 32 mm (1.26 in.)


Advantages:

  • Energy, data and media connections combined in one compact unit
  • Optional cable management tray with lateral SYSBOXX front panel mounting facility (4 WU)
  • Schuko connection modules (only for D/BE/FR) with scoop-proof GST18i3 connections (no professional electrician required)
  • Easy integration even into existing furniture systems
  • Innovative clamping technology for assembly in tabletops of 10 to 60 mm / 0.4 to 2.36' thickness
  • Dimensionally stable and robust all metal frame

Miscellaneous:

  • 1.5 mm thickness

Application:

  • Cost-effective media connection panels for the object sector


Specifications:

Article numberSYSFRAME45-3-PD
EAN4049371306614
BrandSYSWALL
SeriesSYSWALL45
TypeTable mounting frame
Colourgrey
Colour detailedsilver
Weight kg.49856
ModelTable mounting box 'Light' for 3 SYSWALL45 modules
Width mm175
Height mm65
Depth mm112
