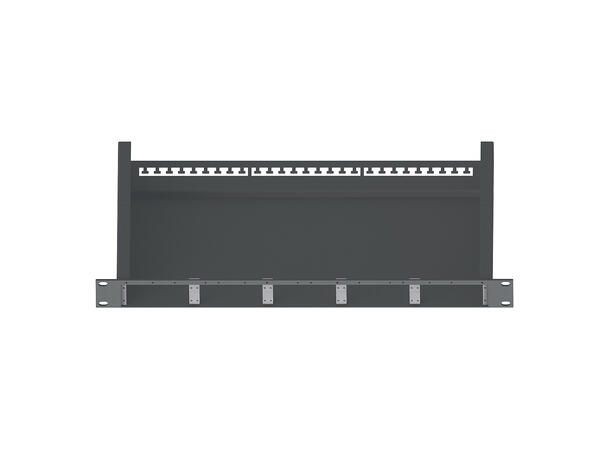

The SYSPANEL5-XL allows the fast and easy construction of patch panels, device connection panels or transfer points, e.g. in control or equipment rooms.
The SYSPANEL5-XL can be fitted with up to 5 CARDINAL DVM 1 WU units (e.g. DVM-SYS-DIS, DVM-SYS-DISH, DVM-HDF4-FIBER-over-HDMI® or also SYSBOXX SYKP cassette profile), 5 SYSBOXX front panels (1 WU, SYFB21-…) or also 5 SYSBOXX connection modules (1B, SYC1-…), thus enabling the realization of modular 1 RU connection panels. The large housing depth also allows an easy integration of extender systems or format changers. The module fronts are integrated flush-mount into the housing front.
As a strain relief for the feed lines, the case offers 28 metal tongues for attaching cable ties. The case earthing (PE) is provided by an M4 ground screw.
The individual lettering can be done using our SYSBOXX labeling profile. Optionally the SYSPANEL can be closed from above with the cover (SYSPAN-C).
The labeling profile as well as the modules are fastened in a time-saving manner with self-tapping M2.5 Torx screws.
