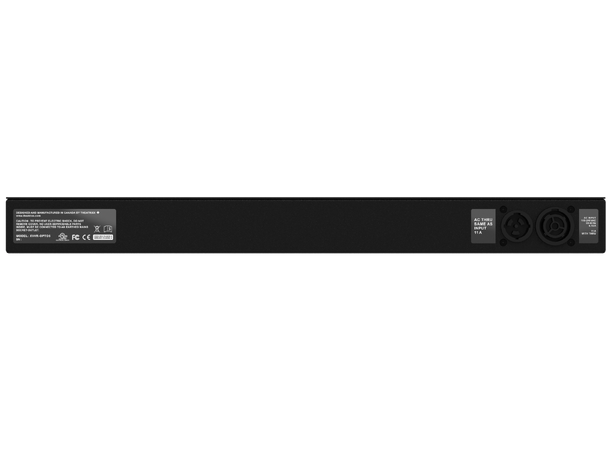

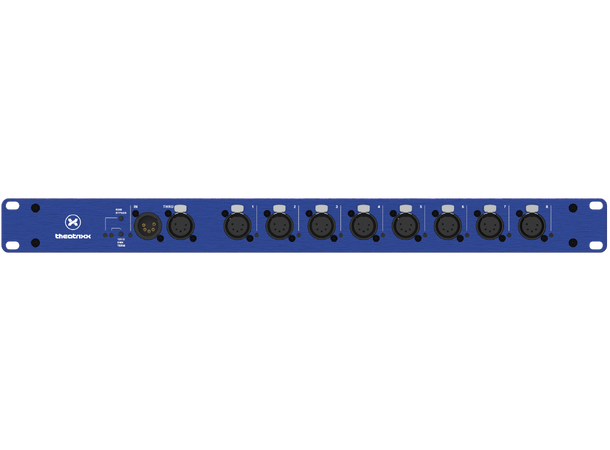

The DMX/RDM splitter is a high quality, rugged distribution device for
your DMX-512 and RDM signals.
Available in both traditionnal 1RU, 8 channel form factor, or as a
modular, 3 channel unit compatible with Theatrixx’s Award-Winning
8-Bay Reversible Converter System, the product opens up interesting
possiblities for high-universe count, high density configurations. For
maximal compatibility, the device is offered with a choice of 3-pin or
5-pin XLR connectors.
The input and each output are optically isolated up to 1000 volts,
ensuring line failures are contained and do not take down the whole
network. RDM data is forwarded to each port, and a special “Timing
Safe Mode” bypasses RDM transmissing and boosts the DMX signal
quality to ensure compatibility with older-generation fixtures. It is also
a handy troubleshooting feature that can be easily switched on or off
at the push of a button.
Features
- Compatible with DMX-512A (RDM) and DMX-512 (1990).
- Comprehensive protection against severe electrical faults on DMX lines.
- Switchable DMX Termination on input.
- Timing-safe mode filters and retimes incoming signal.
- Fully isolated input and output ports.
- Multi-function LED status indicator for each port.
- Available both as a standalone rack-mountable device or as part of the xVision Reversive Converter modular system.
