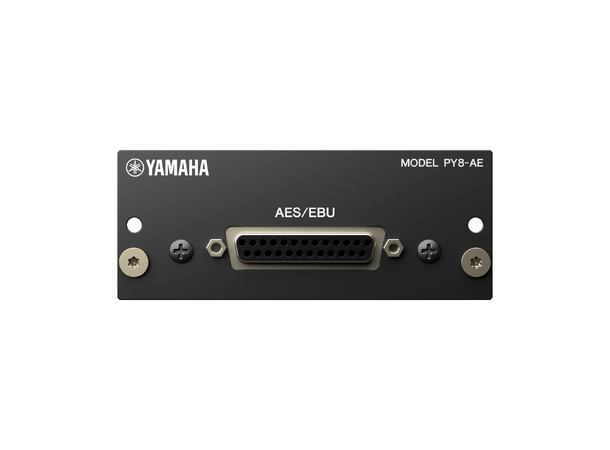

The PY8-AE audio interface card provides AES / EBU connectivity, handling up to 8 input and 8 output channels of 96 kHz / 24-bit digital audio. The onboard sample rate converters for the input channels allow connection between devices operating at different sampling rates.
- Number of Channels: 8 in / 8 out
- AES/EBU terminal: D-sub 25-hole chassis (8 in / 8 out)
- Dimensions (W x H x D): 100 mm x 40 mm x 135 mm (4.0" x 1.6" x 5.4")
- Net Weight: 0.2 kg (0.5 lb)
