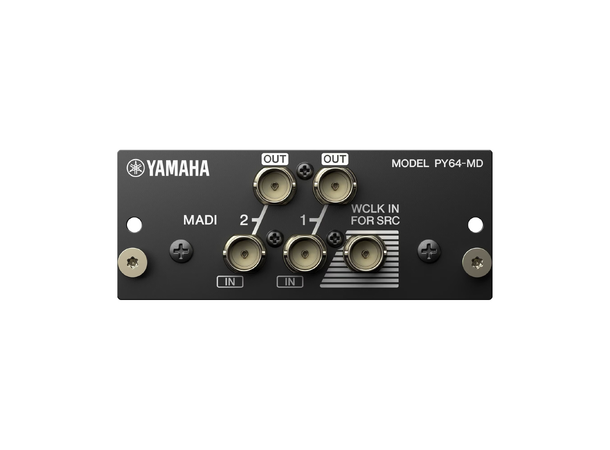

The PY64-MD audio interface card provides MADI connectivity, handling up to 64 input and 64 output channels of 96 kHz / 24-bit digital audio. The onboard sample rate converters allow interconnection between devices operating at different sampling rates.

• Number of Channels: 64 in / 64 out
• MADI input: 2 BNC connectors with SRC (Up to 64 channels on each terminal)
• MADI Output: 2 BNC connectors with SRC (Up to 64 channels on each terminal)
• Dimensions (W x H x D): 100 mm x 40 mm x 141 mm (4.0" x 1.6" x 5.6")
• Net Weight: 0.2 kg (0.5 lb)
