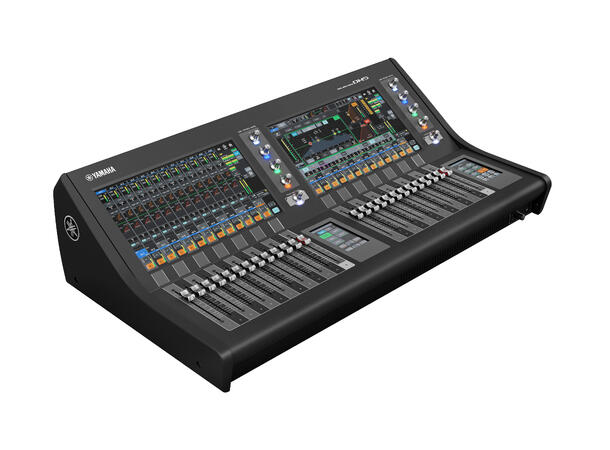

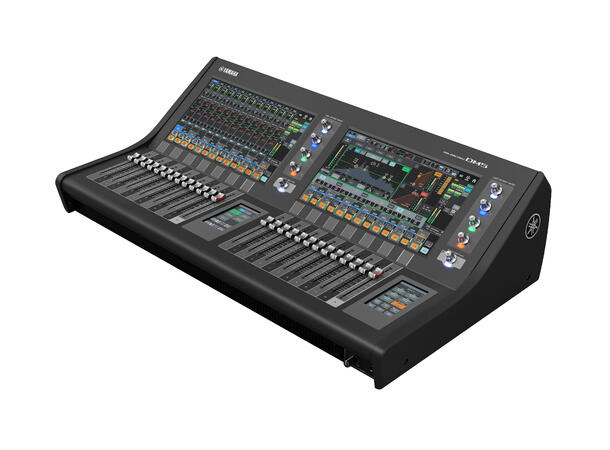

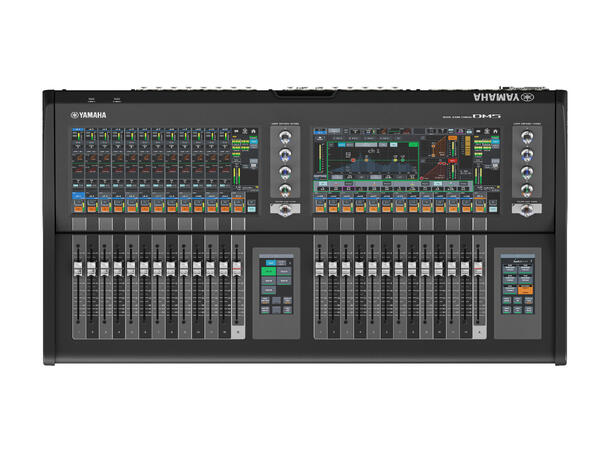

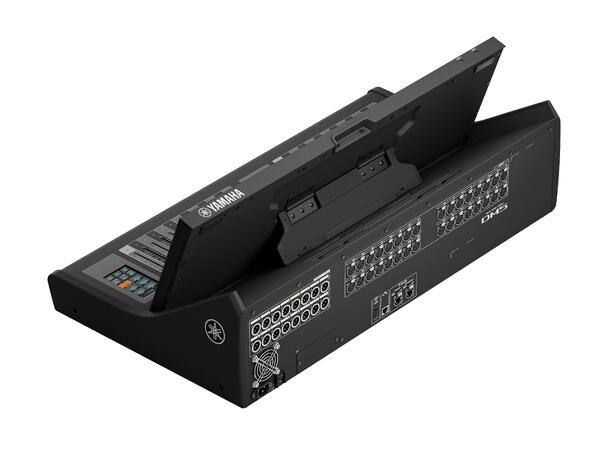

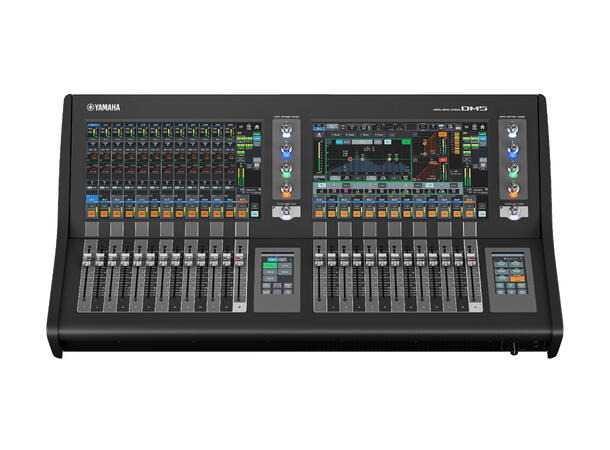

The DM5 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM5 is configured with 26 faders and a 2 x 13.3” + 2 x 4.3” multi-touch screen with glass keys.
- Input mixing channels: 60 mono
- Buses: 24 Mix + 12 Matrix + 2 Stereo?
- Display: 13.3" multi-touch screen x 2, 4.3" multi-touch screen x 2
- Faders: 26 (12 + 1 + 12 +1)

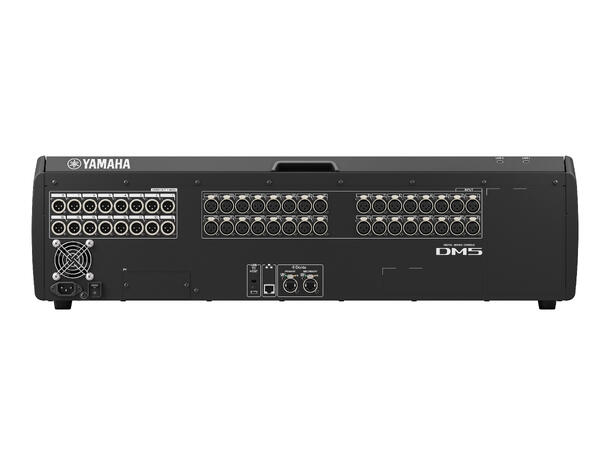

- Analog I/O: 32 inputs / 16 outputs
- Dante: 64 in / 64 out

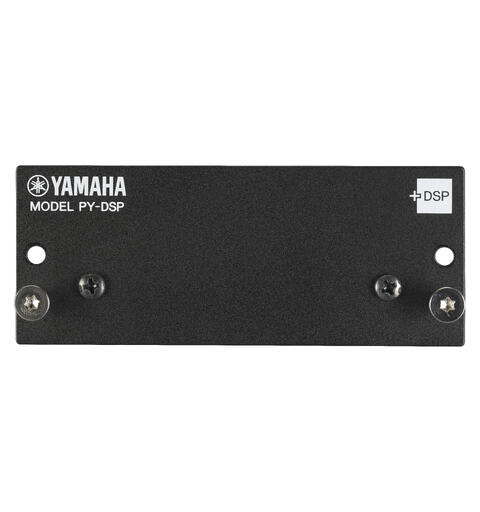

- Slot: PY Slot x 1
- USB Audio Interface: 18 in / 18 out
- Power consumption: 130 W
- Dimensions (W x H x D): 826 mm x 235 mm x 441 mm (32.5” x 9.3” x 17.4”)
- Net Weight: 21.5 kg (47.4 lb)
