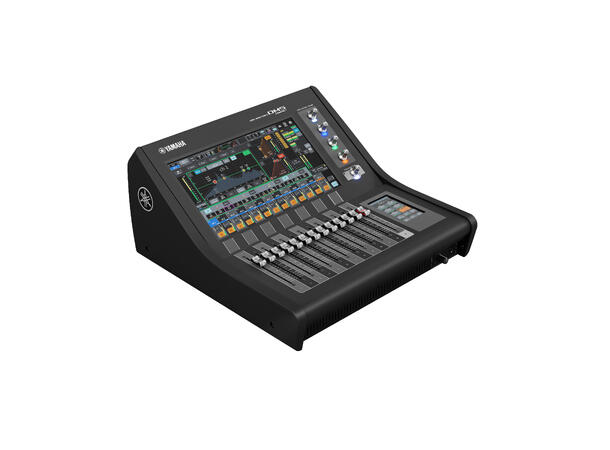

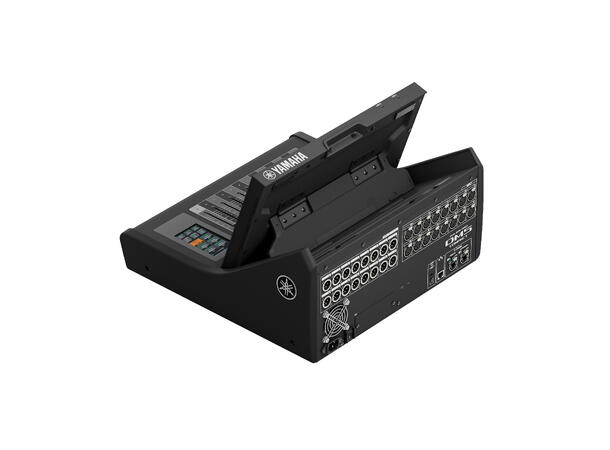

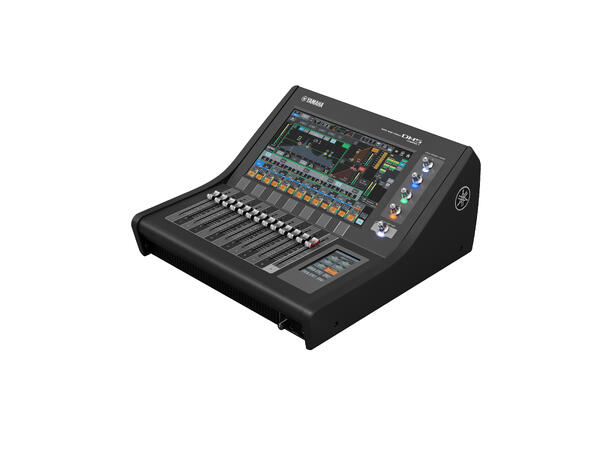

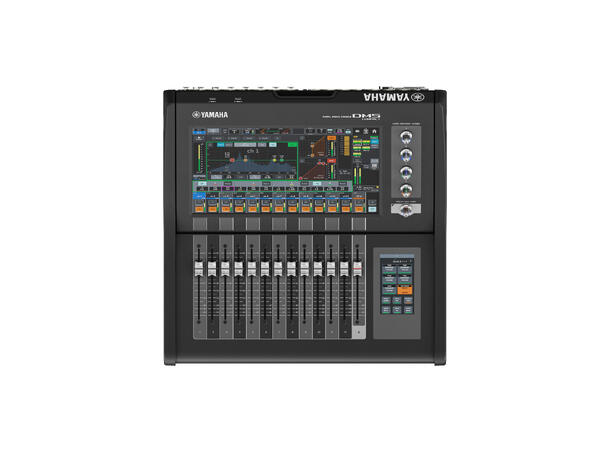

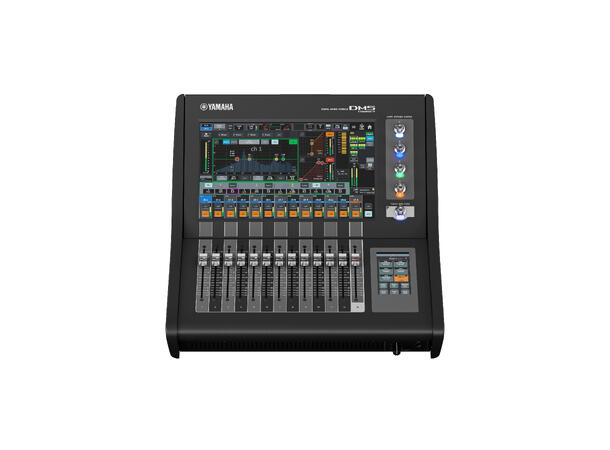

The DM5 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM5 Compact is configured with 13 faders and a 1 x 13.3” + 1 x 4.3” multi-touch screen with glass keys.
- Input mixing channels: 48 mono
- Buses: 24 Mix + 12 Matrix + 2 Stereo?
- Display: 13.3" multi-touch screen x 1, 4.3" multi-touch screen x 1
- Faders: 13 (12+1)

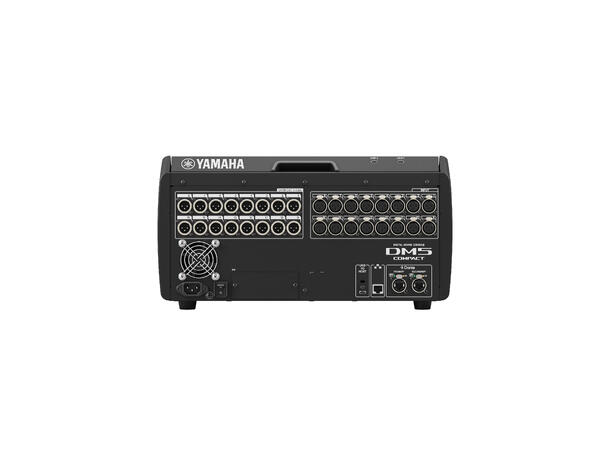

- Analog I/O: 16 inputs / 16 outputs
- Dante: 64 in / 64 out
- Slot: PY Slot x 1
- USB Audio Interface: 18 in / 18 out
- Power consumption: 130 W
- Dimensions (W x H x D): 446 mm x 235 mm x 441 mm (17.6” x 9.3” x 17.4”)
- Net Weight: 13.3 kg (29.3 lb)
