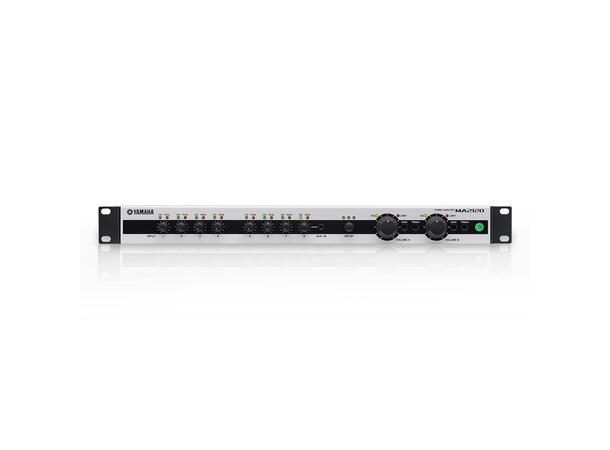

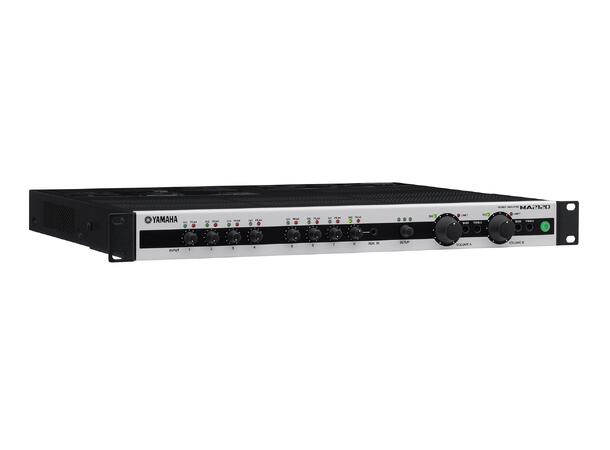

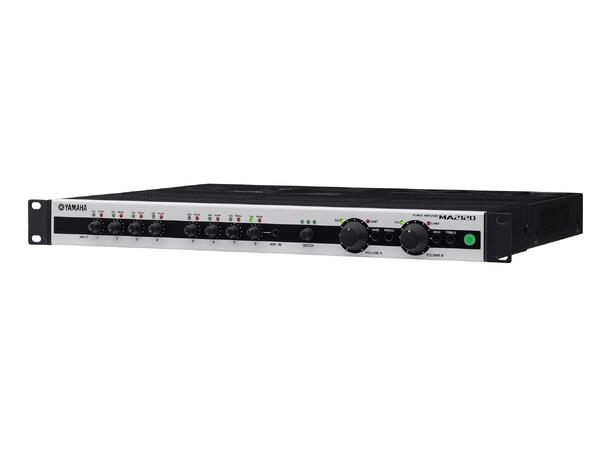

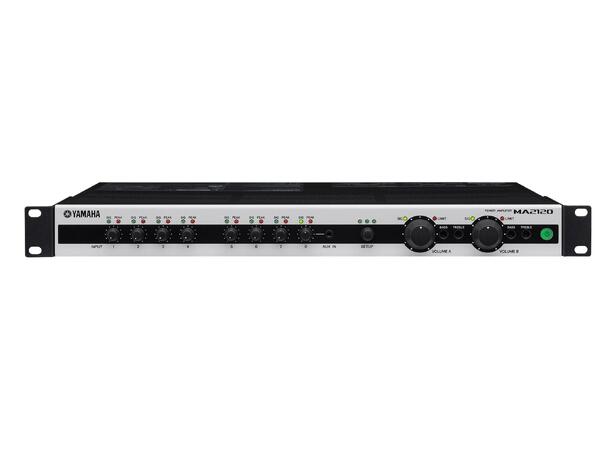

Lo-Z/Hi-Z switchable Class-D mixer amplifier (Lo-Z: 120W x2 @4?, 100W x2ch @3?/8?,
Lo-Z/Hi-Z: 120W x 2ch or 200W x1ch, 70V/100V) equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions for high quality music playback and microphone use.
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (120W x2ch @4? or 100W x2ch @3?/8?) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
- Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V settings
- DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo)
- Bass and treble stereo source EQ with an enhancer function
- Output EQ for optimizing the sound of each Output channel
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
- Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
- Service areas or zoning areas can be expanded by adding a PA2120
- Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
- Intelligent protection function ensures safe, reliable operation
- Certified by ENERGY STAR
- Certified as Yamaha Eco Products
Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
General Specifications
Output Power 8O 100W x 2
(1kHz Non-clip 20msec 4O 120W x 2
Burst Both Channels Driven) 3O 100W x 2
100V Line 120W x 2 or 200W x 1
70V Line 120W x 2 or 200W x 1
Total Harmonic Distortion =0.2% (Line in to Speaker out, Half power @1kHz, 3O/4O/8O),
=0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W)
Frequency Response 0dB, -2.5dB, +1.0dB (Line in to Line out, 20Hz to 20kHz),
0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3O/4O/8O),
0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W)
Crosstalk = -70dB (MIC/LINE input to other MIC/LINE input)
I/O Connectors Mic/Line Input 3.5mm Euroblock (6-pin, balanced) x 3
Line Input 3.5mm Euroblock (6-pin, balanced) x 3
Line Out MONO RCA pin x2 (unbalanced)
Speaker Output Barrier strip x 2 pairs
Control Ports RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin)
Input Level Mic input: -56dBu (Sensitivity), -36dBu (Nominal), -8dBu (Max before clip) /
Line input (unbalanced): -30dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) /
Line input (balanced): -24dBu (Sensitivity), -4dBu (Nominal), +24dBu (Max before clip)
Output Level -10dBV (LINE OUT, Nominal)
Processors Speaker EQ (VXS: Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz)
Protection Circuit Load Protection Power switch on/off: Mute the output*, Output voltage protection: Compress the output*,
DC-fault: Power supply shutdown
Amplifier Protection Thermal: Limit the output*
? Mute* ? Shutdown, Over current: Mute the output*,
Integrated power limit: Compress the output*
Power Supply Protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown,
Over current: Limit the output*
? Power supply shutdown

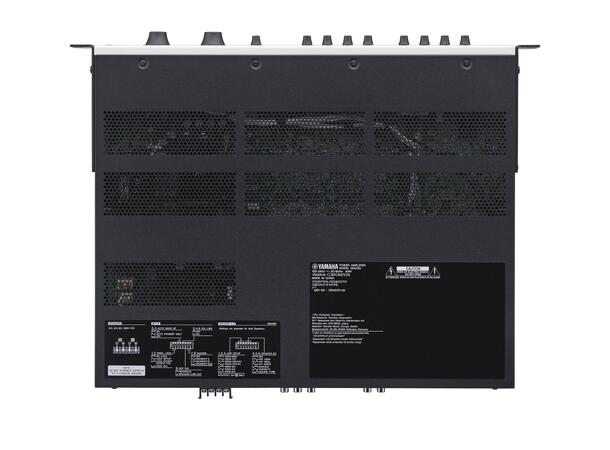

Cooling Conventional cooling, bottom to up airflow
Power Requirements 100V, 120V, 230V-240V, 50Hz/60Hz
Power Consumption 60W (1/8 max power, 4O, AC100V, pink noise at all channels)
Dimensions (W x H x D) 480mm x 45mm x 379mm (18.9" x 1.8" x 14.9")
incl. knobs, rubber feet and rack-mounting ears
Net Weight 4.9kg (10.8lbs)
Accessories AC power cable, 3.5mm Euroblock plug (6-pin) x 3, Euroblock pulg (3-pin) x 1, Owner’s manual, Setup guide
Certificate ENERGY STAR
Options DCP4V4S, DCP1V4S, DCP4S (Digital Control Panel)
Others Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C,
Rack-mountable when ensuring sufficient ventilation above and below the unit
