Easily switch between truss constructions

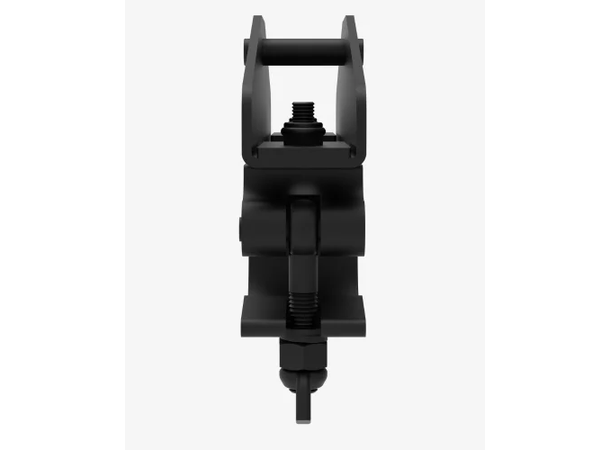

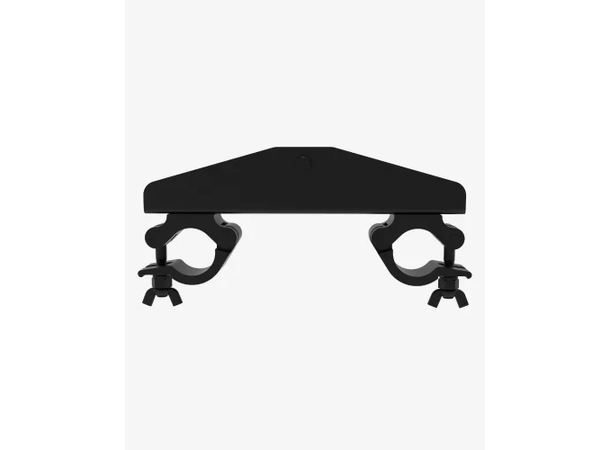

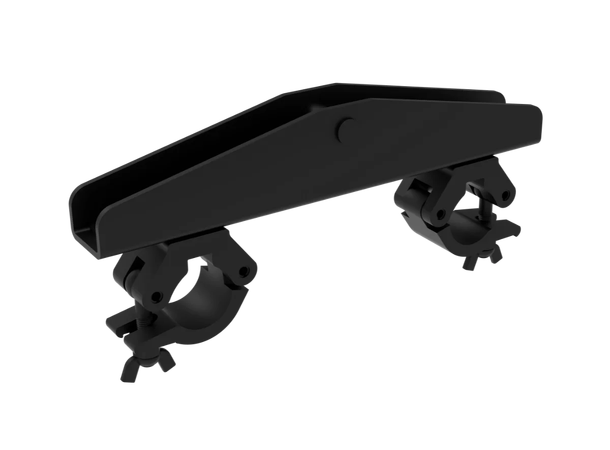

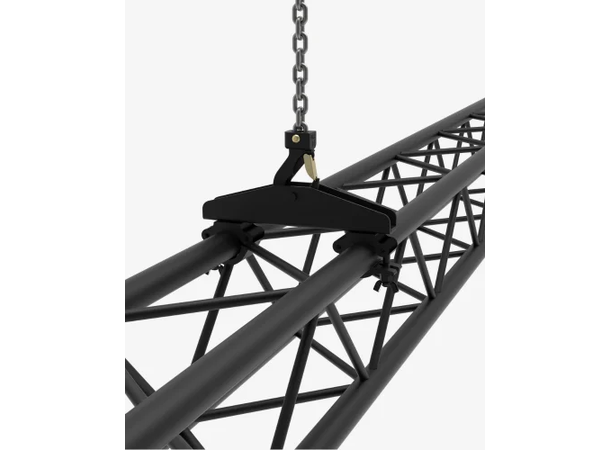

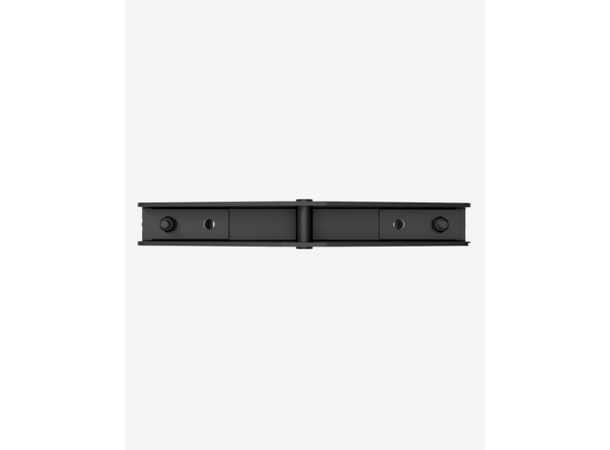

The Admiral Truss Bracket 30/40 is ideal for suspending or lifting 30 or 40 truss with a motor or chain hoist.

Designed to handle up to 1000 kg and equipped with half couplers, it is a convenient option for temporary installations and adaptable truss setups.

Note: The Truss bracket 30/40 with half couplers is compatible with trusses that have a center-to-center distance of 239 mm (30 truss) and 339 mm (40 truss), including Prolyte, Eurotruss, Global Truss, NEXT Truss and LITEC.

Specifications

ELL: 1000 kg
Colour: black gloss 30% (RAL 9005)
For truss: 30 an 40 truss
Material: steel
Finish: powder coated
Safety factor: 8 : 1
Dimensions: 452 x 62 x 192 mm (L x W x H)
Weight: 3 kg
Compatible with: Prolyte, Eurotruss, Global Truss, NEXT Truss, LITEC
