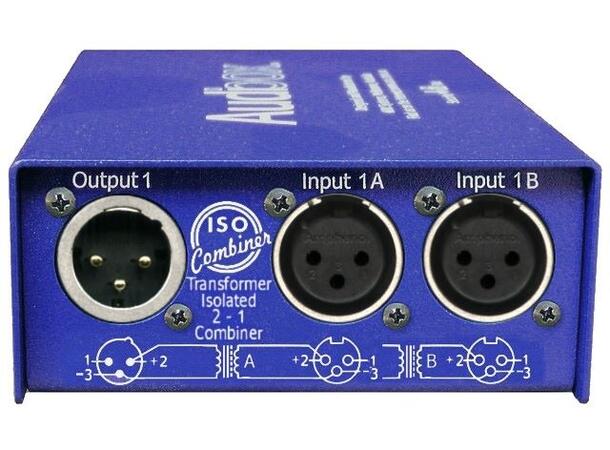

The ISO-Combiner is a new transformer isolated combiner for the Audibox range of Pro Audio tools and problem solvers. It is ideal for use in applications where two sources have to be combined into one silently and easily.
A pair of transformer balanced female XLR inputs combine to deliver a single transformer isolated male XLR output in this essential audio package.
Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads.
The ISO Combiner is a totally passive device with no power requirements, making it a universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
The DUO version has a second input and output set on the rear, making it doubly useful
- Input Impedance 600 Ohms Balanced
- Max Input Level +20 dB
- THD Max 0.2% 30Hz to 20 KHz
- Frequency Response 20 - 20 KHz ± 0.5 dB
- Insertion Loss < 6dB @ 1 KHz (600 Ohm source/load)
- Power Requirements None
- Input Connectors 2 x Female XLR, Wired Pin 1 Not Connected, Pin 2 + Hot, Pin 3 – Cold.
- Output Connectors Male XLR, Wired Pin 1 Chassis Ground, Pin 2 + Hot, Pin 3 – Cold.
- Construction All-steel powdercoated chassis chassis, fibreglass PCB, ultra low noise audio transformers
