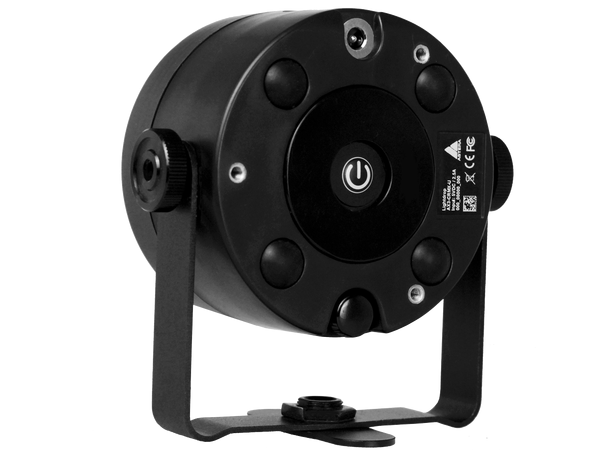

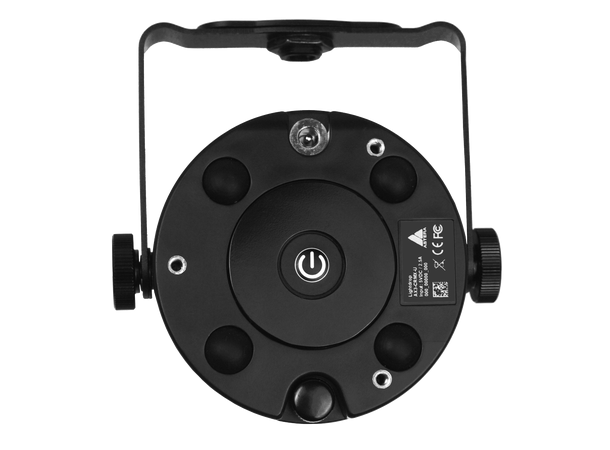

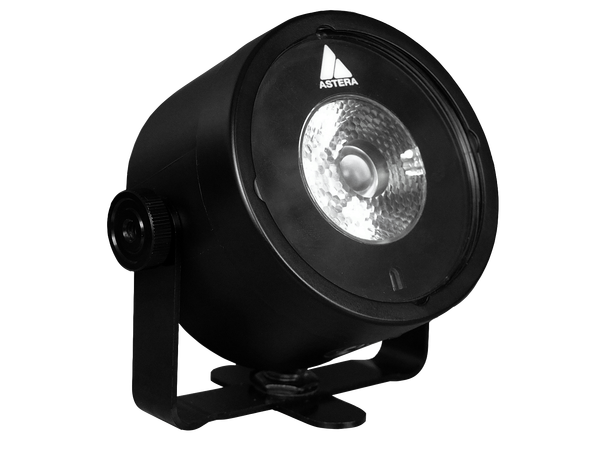

15W RGBW CREE LED – 13° Beam
The AX3 is a battery operated, easy to use IP65 RGBW puck aimed at stage lighting and corporate events. It can be used as uplight as well as hanging or standing spotlight and inside translucent objects, truss, etc. It is extremely compact and yet offers a high brightness paired with long battery runtime and range.
Technical spesifications:
Optical
Colours: RGBW
Total LED power: 15W
Luminous Flux: 430Lm
Emittance (@2m): 1300Lx
Strobe: 0-25Hz
Beam Angle: 13 °
Pixels: 1
Electrical
Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
LED Lifetime: 50.000 Hours
Charging time (nominal): 7 Hours
Input Voltage (charger): 90-264V 47-63Hz
Input voltage (light): 5V 2.5A
Control
Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
Wired DMX: supported via Astera PowerBox
Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical
Construction
Housing: ABS
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 °C | 32-104 °F
Weight: 0.679kg |1.4Lbs
Dimensions (with bracket): 120 x 59 x 114 (mm) | 7.4 x 2.3 x 4.4 (inches)
