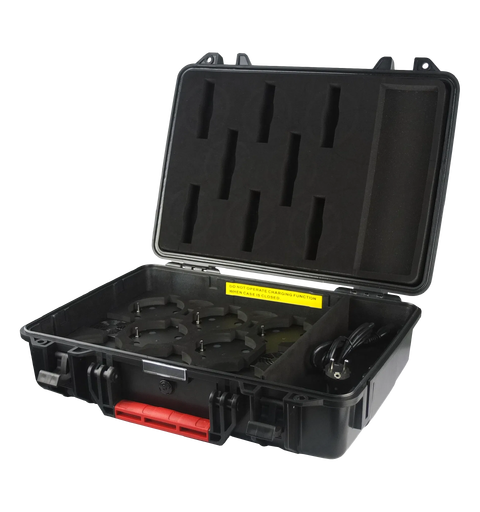

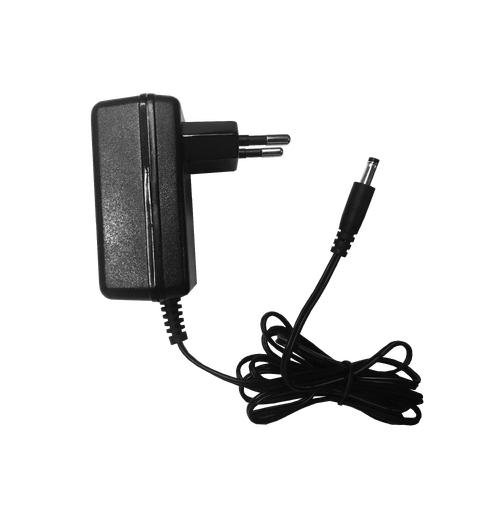

Comes with a power cord and all AX3 accessories (8x brackets, 8x 30° filter, 8x 120° filter, 8x socket covers, 24x hooks, 32x rubber feet), but no individual power supplies are included.

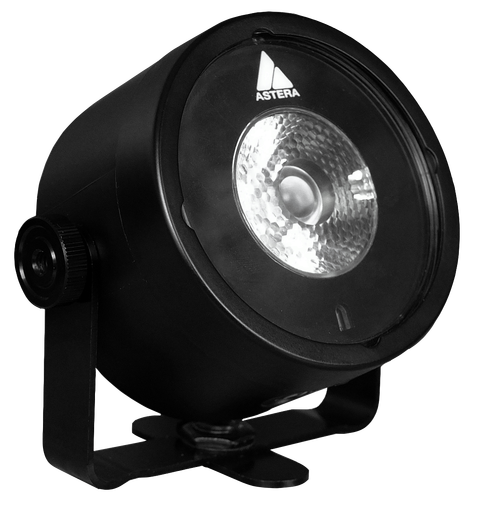

15W RGBW CREE LED – 13° Beam
The AX3 is a battery operated, easy to use IP65 RGBW puck aimed at stage lighting and corporate events. It can be used as uplight as well as hanging or standing spotlight and inside translucent objects, truss, etc. It is extremely compact and yet offers a high brightness paired with long battery runtime and range.
Technical spesifications:
Order Codes | FP5-E26,
FP5-E27,
FP5-B22 |
|---|
Order Codes Black Edition | FP5-E26-B,
FP5-E27-B,
FP5-B22-B |
|---|
LED Engine | Titan LED Engine |
|---|
Colors | RGBMintAmber |
|---|
Total LED Power | 14 W |
|---|
LED Power Draw | 10 W |
|---|
Luminous Flux 3200K | 618 Lumens |
|---|
Luminous Flux 4000K | 750 Lumens |
|---|
Luminous Flux 5500K | 683 Lumens |
|---|
Light Output 3200 K @ 1m | 114 Lux |
|---|
Light Output 5500 K @ 1m | 124 Lux |
|---|
CRI (Ra)/ TLCI 3200- 6500 K* | =96 |
|---|
Beam Angle | 155° |
|---|
Field Angle | 205° |
|---|
Strobe | 0 – 25 Hertz |
|---|
Pixels | 1 |
|---|
DC Input | 5-18 VDC, 2.1 A |
|---|
DC Connector | 3.5 mm x 1.35 mm |
|---|
AC Input | FP5-E26: 100-120 VAC,
FP5-E27: 100-240 VAC,
FP5-BC: 100-240 VAC |
|---|
AC Connector | E27 (EU) / E26 (US) / BC (on special order) |
|---|
Wired DMX | No |
|---|
CRMX Receiver | Built-in |
|---|
BluetoothBridge BTB | Built-in |
|---|
Wireless Protocols | CRMX, UHF, Bluetooth |
|---|
Wireless Range | CRMX/UHF up to 100 m / 110 yds
Bluetooth up to 3 m / 3.3 yds |
|---|
Infrared Control | Yes |
|---|
Housing Material | Metal & Polycarbonate |
|---|
IP Rating | IP44: connected via AC + FP5-SP in DC socket
IP20: connected via DC socket |
|---|
Ambient Operating Temperature | 0 – 40 °C / 32 – 104 °F |
|---|
Weight | 240 g / 0.53 lbs |
|---|
Dimensions L x W x D | Ø 70 mm x 130 mm / Ø 2.76" x 5.12" |
|---|
Mounting Options | E26/27/BC socket |
|---|
