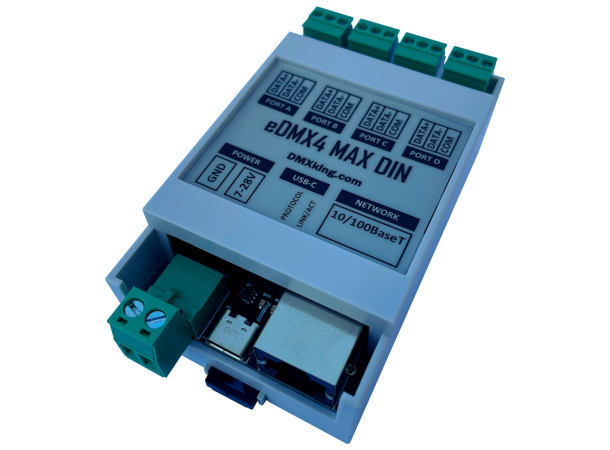

DMX KING eDMX4 MAX DMX Node

The most compact 4 port sACN/E1.31 and Art-Net to DMX512 node available. DMX512 IN/OUT independently configurable ports with advanced stream merging and built in show recording for standalone operation.

Main Features

• Wide input power range 7-28Vdc
• Power input via USB-C
• USB DMX functionality in addition to Network ArtNet/sACN
• 4x DMX512 OUT or DMX512 IN non-isolated
• Merge 2 incoming Art-Net streams per output channel with both HTP and LTP options
• Merge Art-Net + DMX input -> DMX output(s)
• Merge 2x DMX input -> DMX output(s)
• sACN Priority takeover for multi-tier controller arrangements
• Recording and playback of shows to microSD card (not supplied) - See eDMX MAX Record / Playback manual
• Static scene recording and playback without requiring SD card. See eDMX MAX Record / Playback manual
• Standalone scene/show playback without computer or network connection
• Real time clock with battery (not supplied) backup for intermittent power standalone playback
• Art-Net I, II, 3 & 4 + sACN/E1.31 protocol support including universe synchronization
• Static or DHCP IPv4 networking
• Integrated DIN rail and wall mount with OEM board also available for integration into your designs
