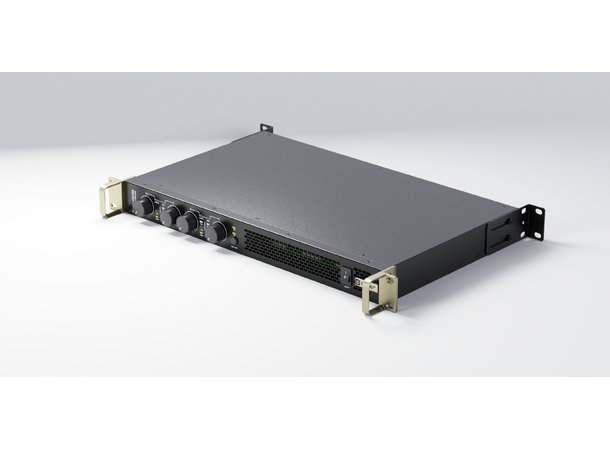

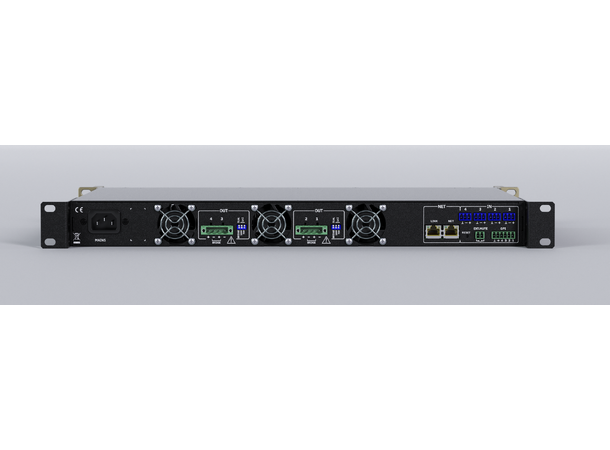

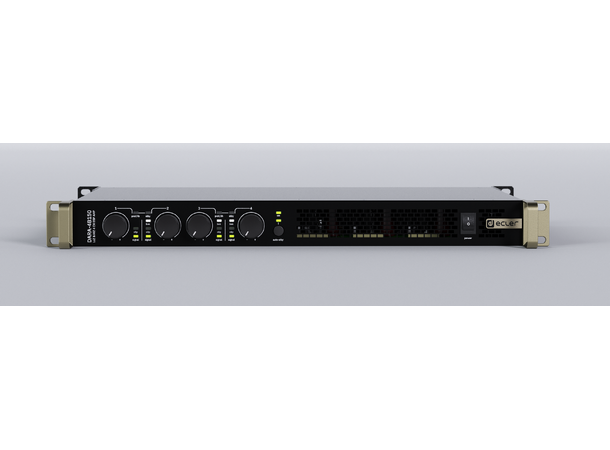

DARA-4B150
4x150 W RMS @ 4 Ohm networked Class D DSP amplifier, low/high impedance (70V/100V) + Bridge mode, part of the new DARA series (2026 launch).
Main features
- 4-channel Class D
- 2/4/8 Ohm, 70V/100V, Bridge mode per channel pair
- 4 balanced inputs w/ 4x4 digital matrix
- integrated DSP
- Ecler speaker EQ presets
- dual Ethernet w/ switch for daisy-chain
- PULSO Series app control
- embedded web GUI
- auto standby
- full protections
- lockable front panel.
Technical specifications
- Output: 150W @ 2/4/8 Ohm & 70V/100V per ch, 300W bridge @4/8 Ohm
- Voltage gain: 30.8dB
- Input sensitivity: 0dBV/1Vrms
- THD+N: <0.1%
- SNR: 95dBA
- AD/DA: 24-bit Tandem @48kHz, 115/120dB-A dynamic range
- Efficiency: 70%, 3 fans
- Presets: 15 amp + 40 speaker
- Dimensions: 484x44x296.6mm (19")
- Weight: 4.95kg
