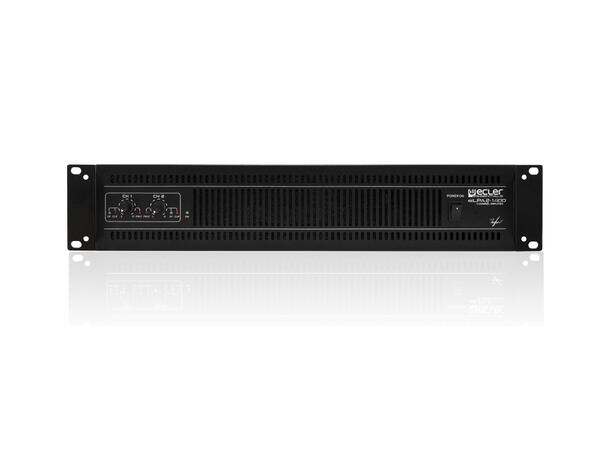

eLPA2-1400
Stereo amplifier delivering 1400W, top of the lightweight eLPA range, bringing classic Ecler reliability to a versatile and affordable format.
Main features
- 2 analogue audio inputs x 2 powered audio outputs
- Ultra light technology
- Efficient progressive ventilation system
- Rotary input attenuation controls
- POWER ON/SIGNAL/CLIP/PROTECT LEDs
- Efficient short-circuit, overheat and DC signal protection
- Permanently activated anti-clip circuit
- Balanced XLR3 inputs

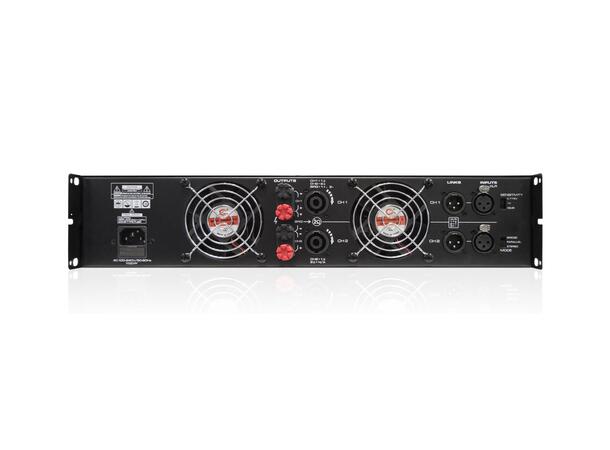

- Amplified outputs with terminal and Speakon connectors
Technical specifications
- Output channels: 2
- Output connection: Speakon & binding posts
- Output configuration: 2x1400 WRMS @4 ohm
- Input connection: XLR3 balanced
- Max output @4 ohm: 1300W
- @8 ohm bridge: 2600W
- Input impedance: 20k ohm (10k ohm unbalanced)
- Frequency response: 20Hz-25kHz
- THD+Noise: <0.1%
- SNR: >85dB
- CMRR: >55dB
- AC mains: 100-240V@50-60Hz
- Power 1/3 @4 ohm: 1171.0W
- Power 1/8: 473.0W
- Idle: 53.0W
- Cooling: Progressive ventilation, rear-to-front
- Protections: DC/Short-circuit/Clip/Thermal Yes
- Output settings: STEREO/PARALLEL/BRIDGE
- Gain: 0.775V/1V/32dB
- Installation: 19" rack (2RU)
- Dimensions: 482.6x88x304mm
- Weight: 6.35kg
- Shipping weight: 7.9kg
