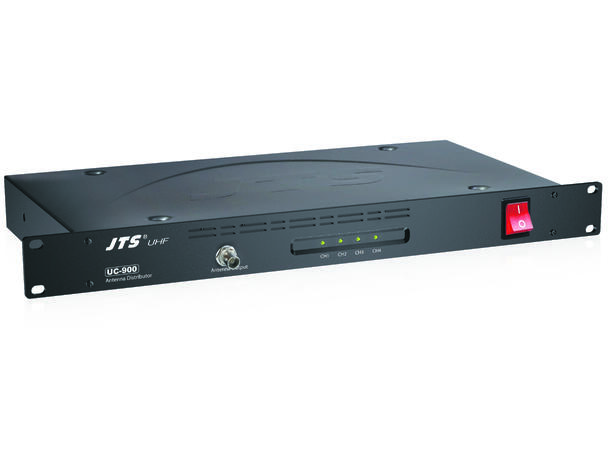

This 4 inputs and 1 output antenna combiner is compatible with transmitters like SIEM-2T, TG-10STX, TG-10GSTX and other transmitters with BNC antenna connecters. It is designed to improve RF performance by reducing intermodulation distortion. This product will also help to save investment in antenna systems. * Provides 4 DC outputs each of 12 V x 800 mA for 4 sets of transmitters.
SPECIFICATIONS
Frequency Range 470~970 Mhz
Full System Gain 0dB(±2dB)
VSWR Input / Output 1.5:1
RF Input Power +20dBm (100mW)
Input Signal Indicator Threshold +5dBm
Power Consumption 6W

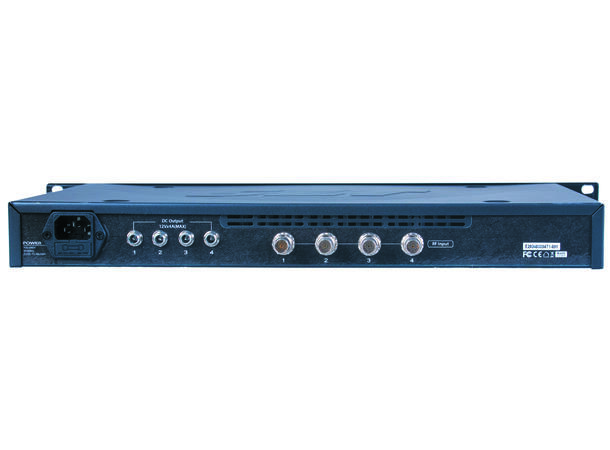

Input/Output Connectors BNC female (4 input at back,1 output at front)
DC female (4 input, Maximum Power OutputLimit at 12V/1A)
Input Voltage 100~240VAC MAX2A 50/60Hz
Dimensions 480 (W) * 45 (H) * 260 (D)
Wieght 2.3kg
