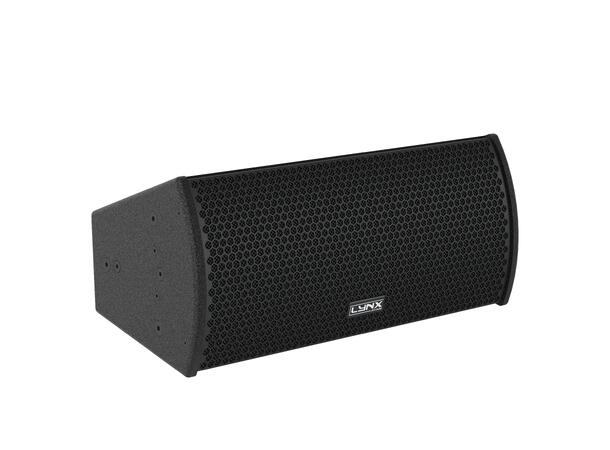

The HR-206 enclosure is a high-performance passive full range, with an excellent power-size ratio.It consists of two 6.5”transducers (at 8ohm impedance) and a 1”high frequency compression driver.
Different models available depending on the coverage angle: HR-206/64, HR-206/96 and HR-206/124. It offers a wide dispersion of 60º x 40º / 90º x 60º / 120º x 40º and 122dB SPL (800W program).
This enclosure offers a selectable operation between bi-amp or passive mode and is ideal for a wide variety of applications and has several accessories that provide an easier installation. Although this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.
For Low Frequency reinforcement, several subwoofer options are available.
Technical Data
Components
|
LF: 2 x 6.5?, 2? voice coil
|
|
HF: 1? Exit compression Driver , 1.75? aluminium voice coil, High temperature polymer
|
| Frequency Range |
72 Hz – 20 KHz (-10dB) |
Frequency Response
|
78 Hz – 20 KHz (± 3dB)
|
| Sensitivity |
Passive Mode: 90 dB (1W@1m) |
Max SPL*
|
Passive Mode: 116 dB – 122 dB Peak
Bi-Amp LF: 116 dB – 122 dB Peak
Bi-Amp HF: 131.5 dB – 137.5 dB Peak
|
| Coverage Angle |
60º x 40º / 90º x 60º / 120º x 40º rotatable |
Power
|
Passive mode: 400 W (800 W program, 1600 W peak)
Bi- Amp LF: 400 W (800 W program, 1600 W peak)
Bi-Amp HF: 70 W (140 W program, 280W peak)
|
| Crossover |
Bi-Amp / Passive (Selectable) |
Nominal Impedance
|
8 O – also available in 4 O
|
| Connectors |
2 x Neutrik Speakon NL4MP |
Finish
|
Polyurea coating – other colours (RAL) available
|
| Material |
15 mm premium birch plywood |
Dimensions
|
249 x 568 x 252 mm (H x W x D)
|
| Weight |
15 Kg (33 lbs) |
* Calculated maximum SPL based on rated peak power and measured sensitivity.
