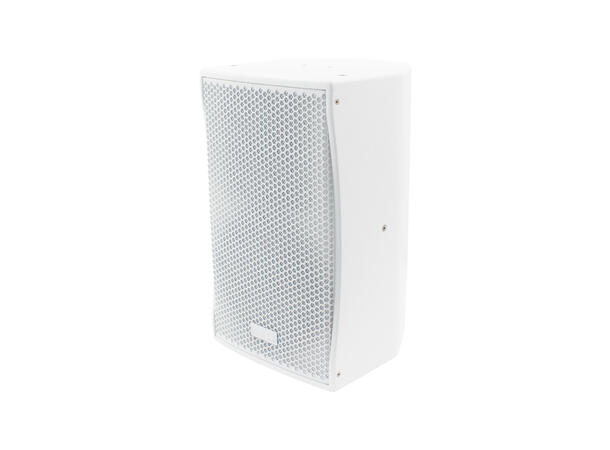

The BS-12 is a compact, two-way passive cabinet. Consists of a 12” (3” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.
The 12” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The ultra compact 1” HF driver achieves high sensitivity, with exceptional dynamic range creating remarcable depth and definition.
The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over medium distances. Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with a number of dedicated accessories. Although the BS-12 can be used without a processor we recommend that the cabinet presets are applied for maximum optimization and performance.
Specifications.
LF: 12” speaker, 3” ( 75 mm) copper wire voice coil, Waterproof cone with treatment on both sides
HF: 1” exit throat, (25,4 mm) voice coil, annular diaphragm driver
Frequency range: 60 Hz – 20 KHz (± 3 dB)
Sensitivity: 96 dB
Max. SPL/Peak*: 122 dB / 128 dB
Rated Power (AES): 400W AES (800W program, 1600W peak)
Dispersion: 90º x 60º rotatable
Nominal Impedance 8 O
Connectors: 2 X NEUTRIK Speakon NL4 Pin connections: +1 / -1 input +1 / -1 link
Finish: Polyurea coating
Material: 15 mm premium birch plywood
Dimensions: 589 x 350 x 348 mm (H x W x D)
Weight: 19 Kg (41.8 lbs)
Fittings: 5 x M8, double pole-mount with 10º angle, ergonomic handle on the back position
Optional accesories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole
Enclosure type: Multi angle enclosure
* Calculated maximum SPL based on rated peak power and measured sensitivity
