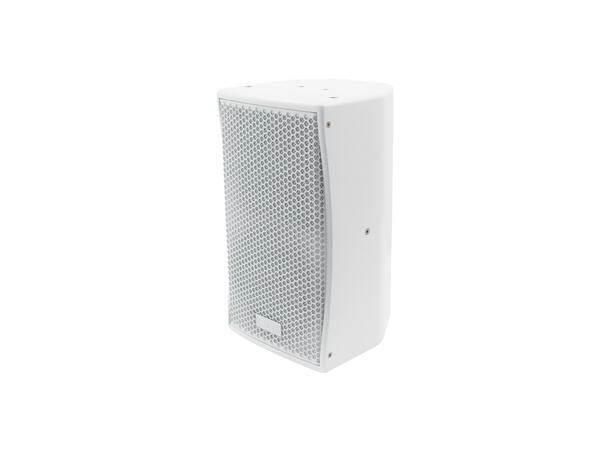

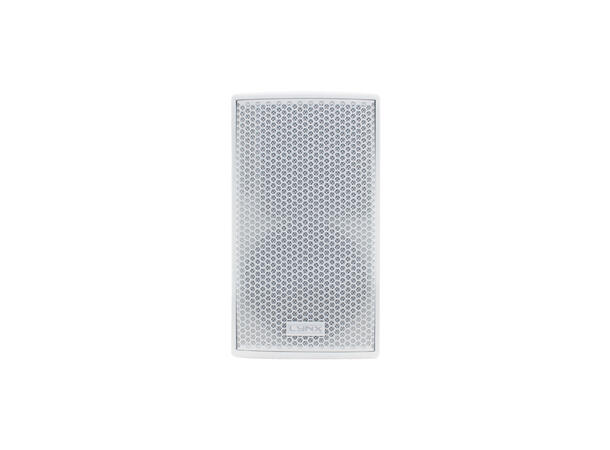

The BS-8 is a compact, two-way passive cabinet. Consists of a 8” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.
The 8” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The 1” HF driver delivers high sensitivity with a PETP diaphragm. The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over short/mid distances.

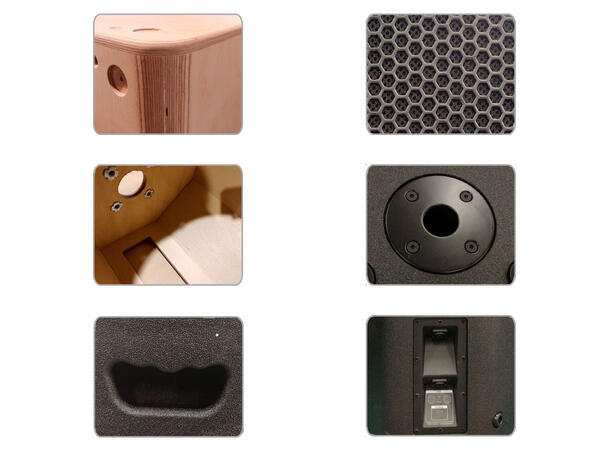

Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with a number of dedicated accessories. Although the BS-8 can be used without a processor we recommend that the cabinet presets are applied for a maximum optimization and performance.
Specifications.
LF: 8” speaker, 2” ( 50 mm) copper wire voice coil, Waterproof cone with treatment on both sides
HF: 1” exit throat, (25 mm) voice coil, PETP dome compression driver
Frequency range: 70 Hz – 18 KHz (± 3 dB)
Sensitivity: 93 dB
Max. SPL/Peak*: 118 dB / 124 dB
Rated Power (AES): 300W AES (600W program, 1200 peak)
Dispersion: 90º x 60º rotatable
Nominal Impedance: 8 Ohm

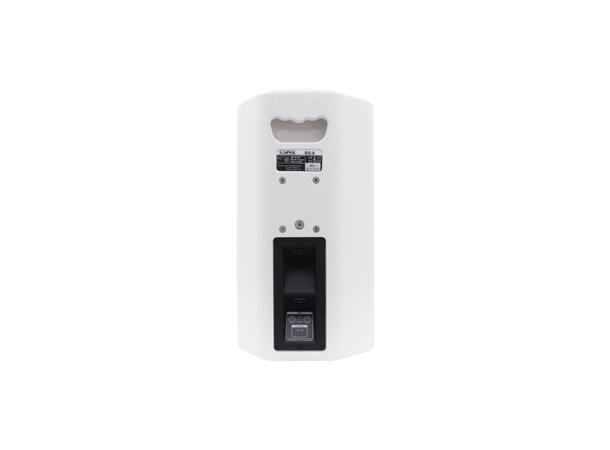

Connectors: 2 X NEUTRIK Speakon NL4 Pin connections: +1 / -1 input +1 / -1 link
Finish: Polyurea coating 15 mm premium birch plywood

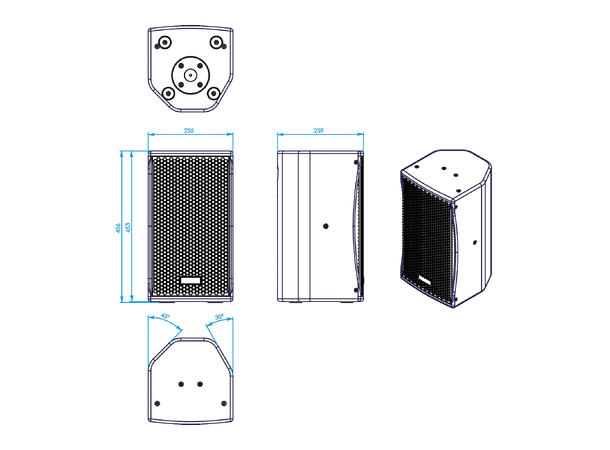

Dimensions: 456 x 255 x 259 mm (H x W x D)
Weight: 12 Kg (26.4 lbs)

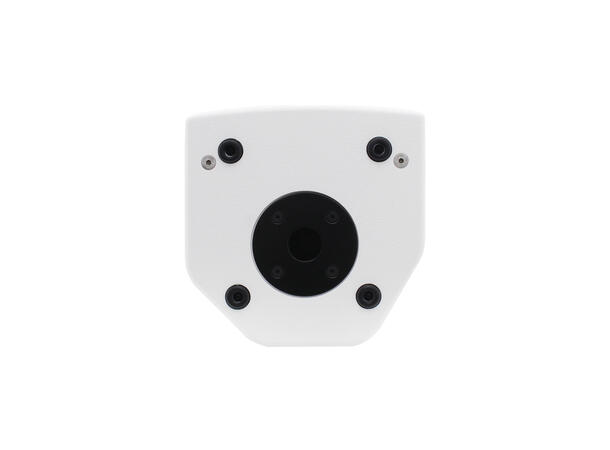

Fittings: 5 x M8, single pole-mount, ergonomic handle on the back position

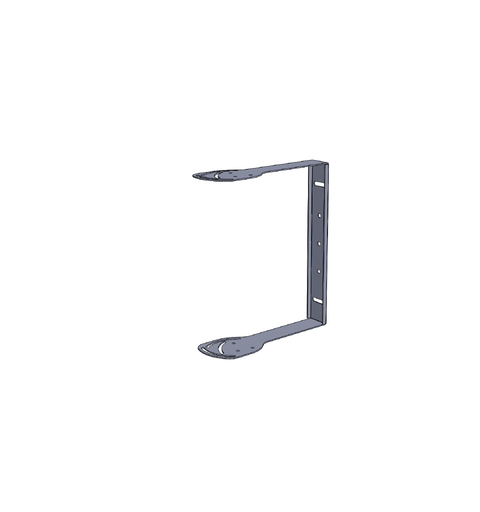

Optional accesories:U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole
Enclosure type: Multi angle enclosure
* Calculated maximum SPL based on rated peak power and measured sensitivity
