NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER
250W Variable White LED Fresnel (2,700K - 5,600K), with manual zoom 17° - 64°

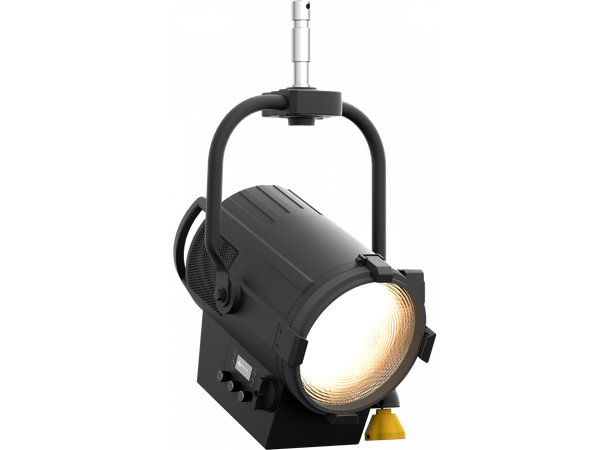

The EclFresnel VW is a powerful LED Fresnel lamp, designed as a replacement for a 1,000W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 250W LED source.
This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclFresnel VW has a manual zoom range from 17° to 64°, with precise focusing, and an 8-leaf barndoor (included).
This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.
LIGHT SOURCE
- Source: 250W Variable White LED
- CCT: 2.700 K - 5.600K
- Luminous flux: (17°) 8'693 lm - (64°) 10'955lm @full
- Lux: (17°) 9'492 lx - (64°) 2'557lx @3 m full
- CRI: 95 @WW; 95 @CW; 94 @full
- R9: 97 @WW; 92 @CW; 81 @full
- TLCI: 97 @WW; 98 @CW; 98 @full
- TM30 Rf: >94 @WW; >92 @CW; >93 @full
- TM30 Rg: >103 @WW; >103 @CW; >104 @full
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Zoom: 17° - 64° manual
- Lens diameter: 8'' - 200mm / 0.31''
- Lens type: fresnel zoom lens
COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control through dedicated DMX channel
- White presets: 2.700 K - 5.600K
- Colour wheel: built-in white presets
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Static mode: selection of static dimmer and color temperature
- Manual mode: manual adjustment of intensity and CT from knob
- Auto mode: built-in programs with execution speed adjustment
BODY
- Hardware on-board: filter frame, 8 doors barndoor, spigot
- Pan angle: (for pole operated version) 360° with manual regulation
- Tilt angle: (for pole operated version) 340° with manual regulation
- Body: sturdy die-cast aluminium body
- Body colour: RAL 9004 or RAL 9003
CONTROL
- Protocols: DMX512, RDM
- Stand Alone: 3 rotatory knobs
- DMX channels: 1 / 2 / 4 / 5 / 11channel
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 240W
- Output (at 230V): 14 units on a single power line
- Power factor: > 0,93
PHYSICAL
- IP rating: 20
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: bracket for hanging and positioning
- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 283x440x343mm / 11.14''x17.32''x13.5''
- Dimensions with PO system (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
- Weight: 7,8kg / 17.2lbs
- Weight with PO system: 10kg / 22.05lbs
- CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
- 1 x ECLFRESNELVW
- 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
- 1 x ECLFRSPG
- 1 x ECLFRSBD
- 1 x ECLFRSTPG
- User Manual
