PROLIGHTS ECLPANELTWCXL Softlight

NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

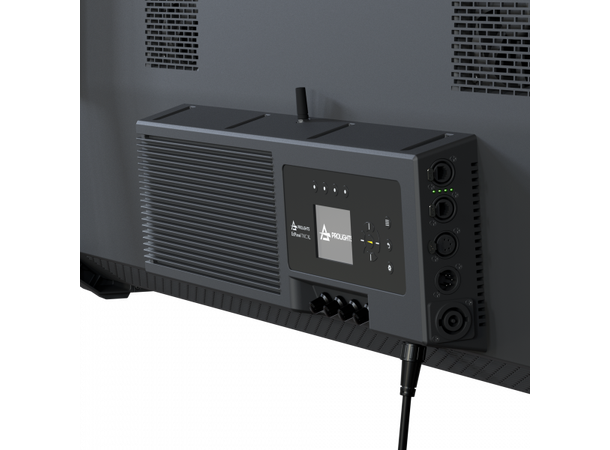

The EclPanel TWCXL is an ultra-bright 2x1 LED soft light engineered for large scale Film & TV productions that provides an outstanding soft source of powerful lighting. The PROLIGHTS EclPanel TWCXL comes with a full range of white tones, from daylight to tungsten, attaining a superior light quality with high CRI, TLCI, and TM-30 values. The EclPanel TWCXL allows for quick and accurate local control through 4 rotatory knobs with three fully-featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity and FX mode to access the pixel cinema effects. Each of the 48 sections has individual control to play the customisable cinema effects or by pixel mapping from an external controller. The unit has an onboard driver, a built-in power supply, a Wireless transceiver for remote DMX and RDM control, and network connectivity (Art-Net, sACN).


LIGHT SOURCE

• Source:1.500 W RGB + Warm White LED
• Luminous flux:136’060 lm @3.200 K with LD filter
• Lux:1’892 lx @5 m full
• CRI:93 @3.200 K; 93.6 @5.600 K
• R9:95.7 @3.200 K; 88,9 @5.600 K
• TLCI:93 @5.600 K
• TM30 Rf:91 @3.200 K; 89,9 @5.600 K
• TM30 Rg:103 @3.200 K; 103 @5.600 K
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle:100 °
• Field angle:155 °

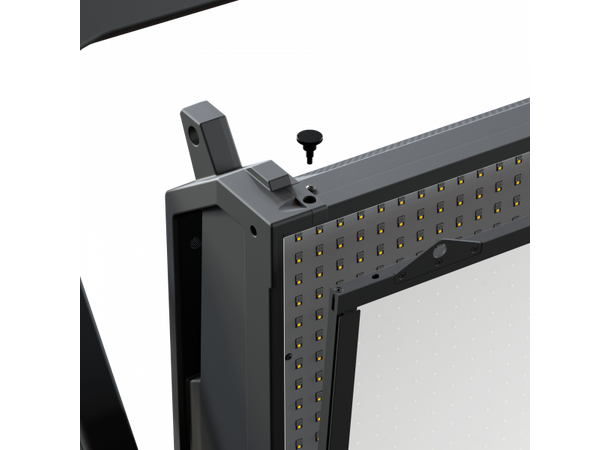

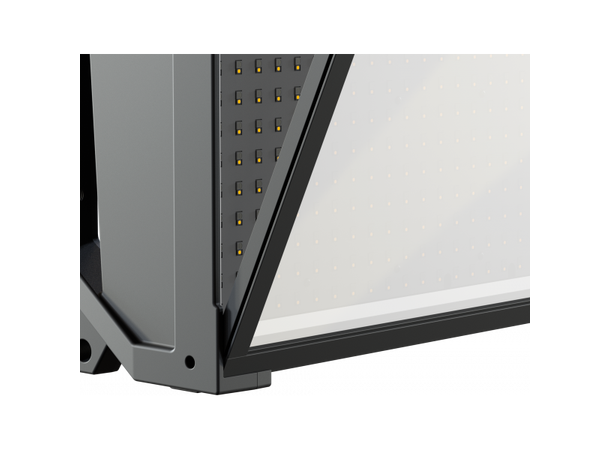

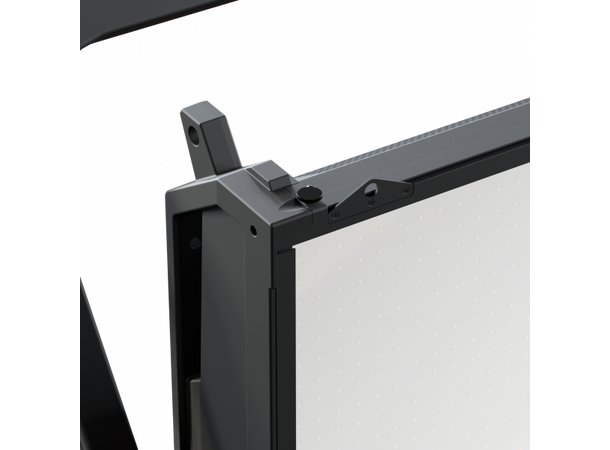

• Lens type:medium density diffusion panel (interchangeable)
• Additional optics: see available accessories

 COLOUR SYSTEM

• Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
• Colour mixing: RGB + Warm White
• CCT: CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation
• White presets:1.800 K - 20.000 K with 28 K resolution
• Colour wheel: virtual colour wheel with macros
• Macros: Gels library on-board

 DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
• Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

• Body: sturdy die-cast aluminium body
• Body colour: black

CONTROL

• Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
• Stand Alone:selectable mode through 4 rotatory knobs
• Pixel control:48 section control
• Wireless Control: included, Lumen Radio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings

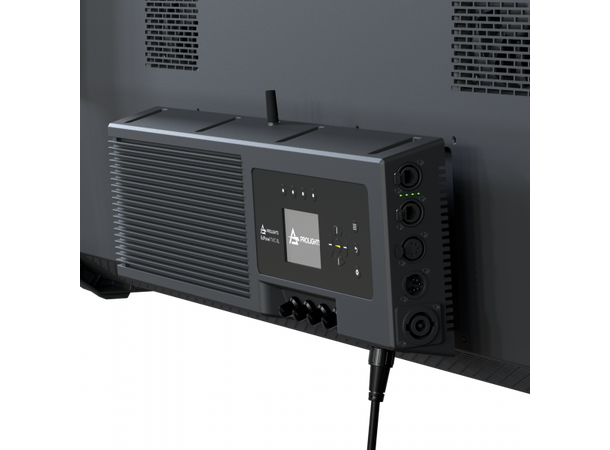

• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves:4 selectable dimming modes available
• Strobe / shutter:1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption:1.600 W
• Output (at 230V):1 units on a single power line
• Power factor:>0,96

 PHYSICAL

• IP rating:20

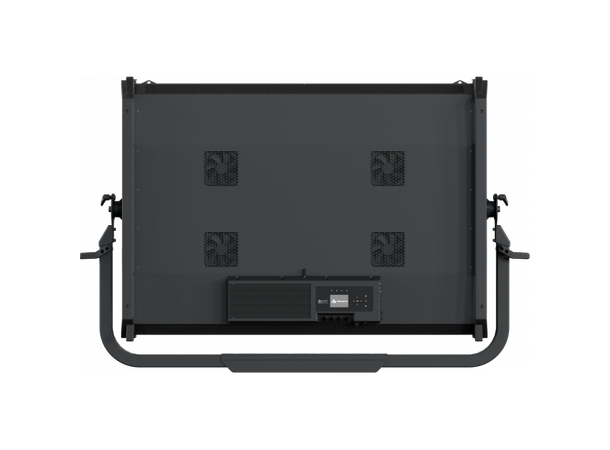

• Cooling: active, silent operation

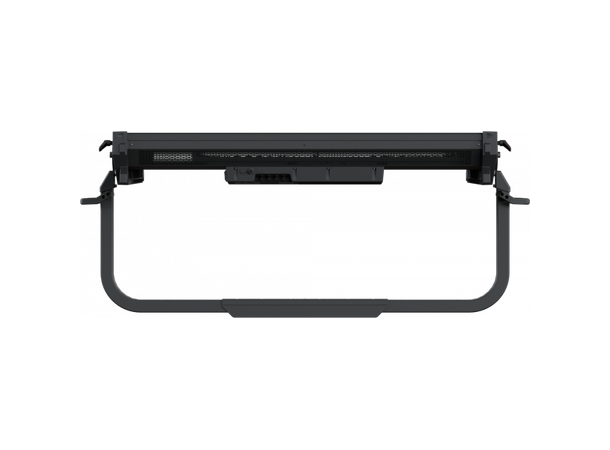

• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection:32A Neutrik powerCON TRUE1 IN/OUT connectors
• Low Voltage DC connector: XLR 4p

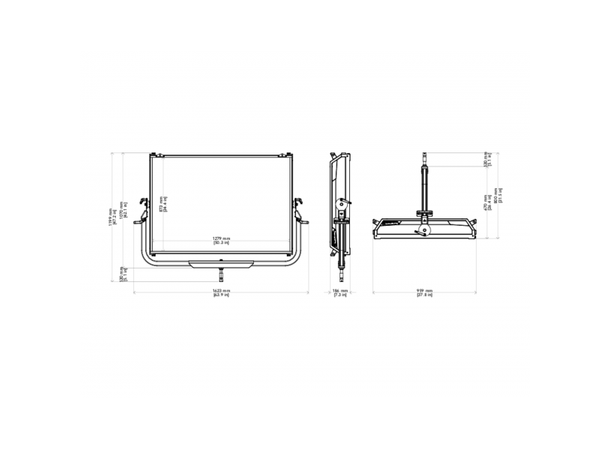

• Dimensions (WxHxD):1638x862x144 mm
• Weight:48,7 kg

CERTIFICATIONS / APPROVALS

1. Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
