NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

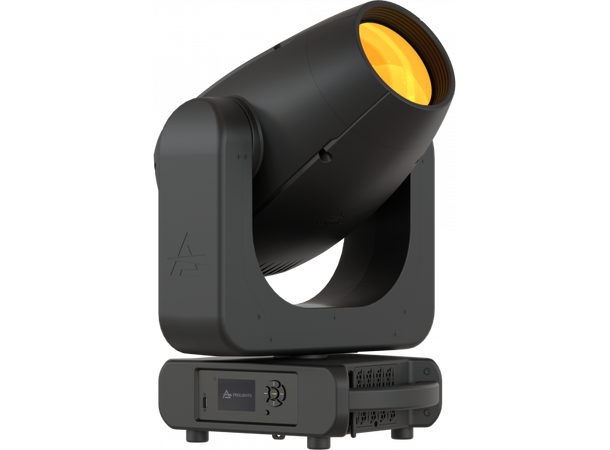

The Astra Hybrid330 is a bright LED hybrid moving head that boasts exceptional power relative to its compact size, producing an array of breathtaking visual effects.
Its optical system offers a linear range from 3.5° to 52°, furnished with a sizable 140mm front lens. This unique combination enables an intense beam and homogenous spotlight, providing an exceptional lumen output and surpassing the evenness offered by arc-discharge fixture in its category.
The comprehensive features of the Astra Hybrid330 encompass a variety of functions. These include aerial effects with a dense, parallel beam and sharp projection textures, pattern effects, linear CMY, three colour wheels, an animation wheel, dual overlapping prisms, frost, and two gobo wheels.
Features:
- 330W LED hybrid moving light
- Zoom range from 3.5° to 52°
- Full features with linear CMY, animation wheel, two gobos, three colours, two prisms, and frost
- LIGHT SOURCE
- Source: 330W high-power white LED
- CCT: 7.000
- Luminous flux: (3,5°) 8'158 lm - (52°) 11'684lm
- Lux: (3,5°) 97'996 lx - (52°) 1'566lx @5 m full
- Source life expectancy: > 30.000 h
OPTICS
- Zoom: 3,5° - 52° motorised linear zoom
- Lens diameter: 140mm
- Lens type: HD anti-reflection lenses with achromatic coating
- Focus: motorised
COLOUR SYSTEM
- Colour mixing: CMY colour system on 3 gradually fading colour wheels
- CCT: on wheel 2.400 K and 3.200 K
- Colour wheel: 9 dichroic filters on 3 independent colour wheelsColour wheel: High CRI colour filters
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Animation wheel: animation wheel with CW and CCW rotation
- Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
- Gobo size: outer: 20 mm - image: 16 mm - thickness: up to 3 mm
- Fixed gobos: 11 fixed gobos + open
- FX generator: 2 prisms overlap for spectacular aerial effects
- Circular prism: 8f with bi-directional rotation, indexing
- Linear prism: 6f with bi-directional rotation, indexing
- Frost: linear 0 - 100% frost filter
BODY
- Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
- Pan angle: 540°
- Tilt angle: 270°
- Pan/Tilt resolution: bit 16-bit
- Feedback: automatic repositioning after accidental movement
- Body: aluminium structure with high-resistance polycarbonate cover
- Body colour: RAL 9004
CONTROL
- Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
- DMX channels: 29channel
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: LCD high resolution colour display with autoflip
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included or via USB pen drive
- Other: Ethernet pass through in case of PSU or Master PCB failure
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -10° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
- Max power consumption: 517W
- Output (at 230V): 4 units on a single power line
- Power factor: > 0,98
PHYSICAL
- IP rating: 20
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: any position with quick-lock omega brackets
- Pan / tilt lock: for transportation and maintenance
- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Data connection: Neutrik Art-Net RJ45 IN/OUT
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors

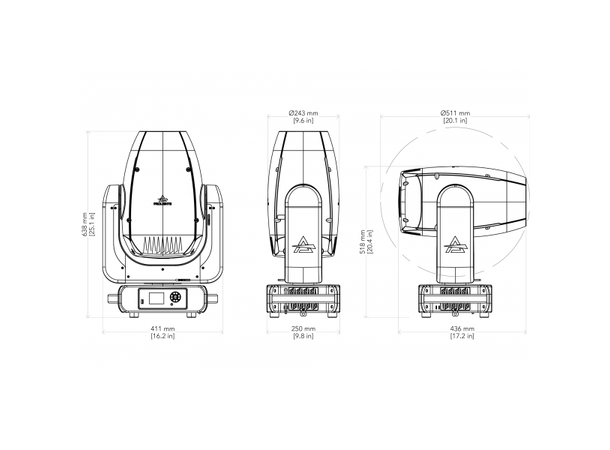

- Dimensions (WxHxD): 411x638x244mm
- Weight: 21,6kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
- 1 x ASTRAHYB330
- 2 x OS24
- 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
- User manual
