PROLIGHTS GAMMAGIX48T1X1WF LED-panel

50x50cm, Innendørs,SMD1921, 3500nit

Varenr: 171016
Alt. varenr: GAMMAX48T1X1WF
10 798,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
På lager hos leverandør, forventet leveringstid er ca. 27 dager
BeskrivelseTilbehørAlternativerLenker & dokumenter
Beskrivelse

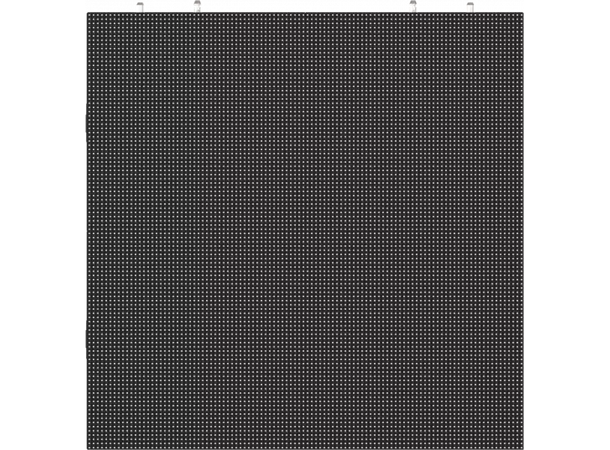

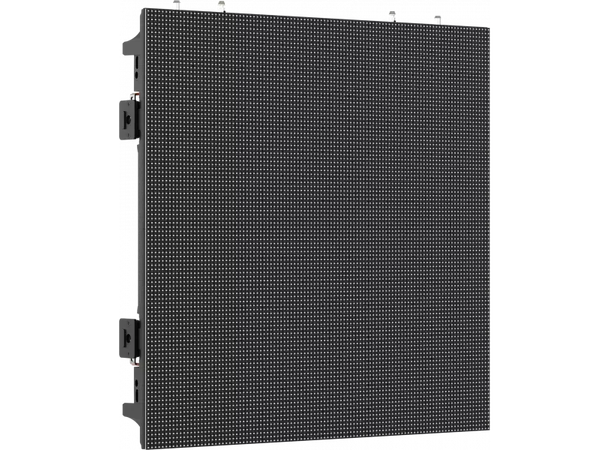

GammaPix 48T is a rental LED screen for outdoor use with a 4,8 mm pixel pitch, designed to meet requirements for touring, events and install applications. This series is available in both 50x50cm and 50x100cm tiles, mechanically compatible in order to assemble a large surface of screen in a shorter time.

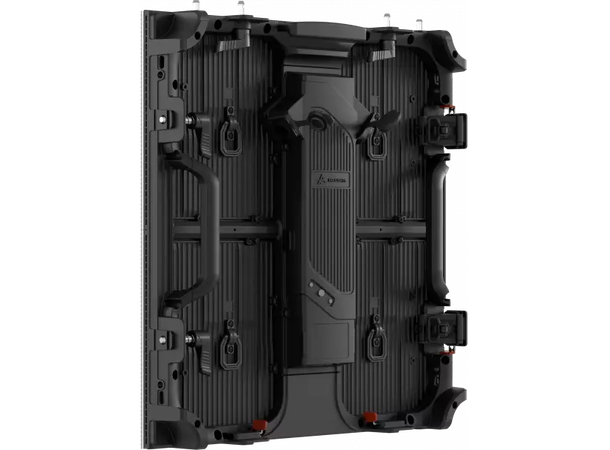

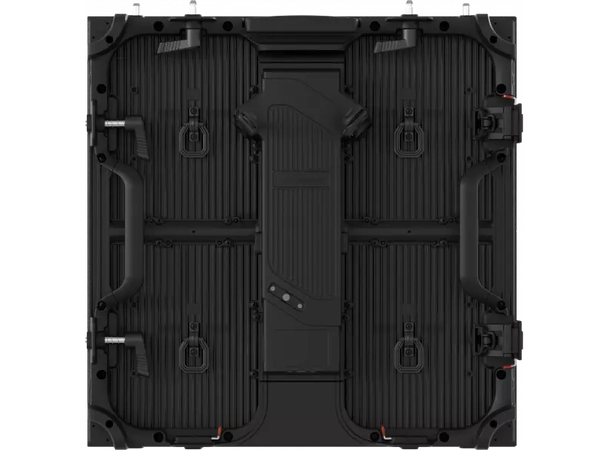

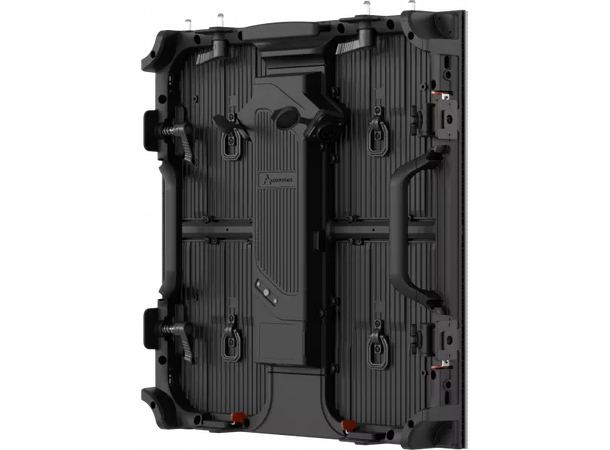

The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as scratch protection of the lamp face, flip corner shield and bottom protection.

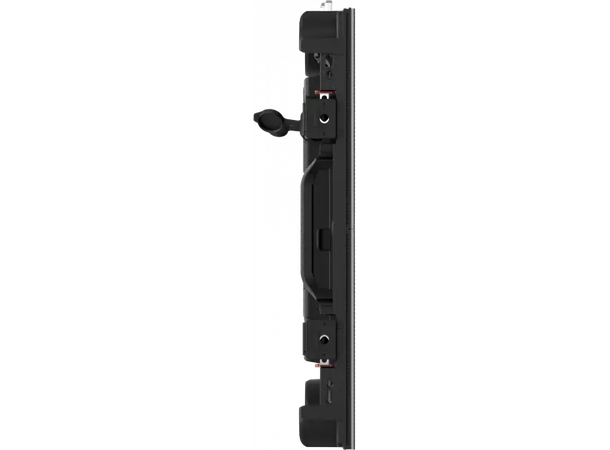

GammaPix 48T tiles have on board curve mechanics allowing both concave and convex precise installation of  +10° / -10° each tile and the weight has been reduced down to 6,4 kg (50x50cm tiles) and 11,4 kg (50x100 tiles).

The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.

Features:
Single person installation, auto lock design, scratch protection and flip corner shield
Built in curve mechanics for +10° / -10° concave & convex
Refresh rate of 3.840 Hz

VIDEO
  • Driver chip type: ICN 2153
  • LED source: Nationstar SMD1921 black frame and white face
  • Pixel pitch: 4,8mm
  • Panel resolution: 104x104pixels
  • Module resolution: 52x52pixels
  • Luminous flux: 3.500nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate =: 3.840Hz
  • Drive Mode: 1/13 scan, constant current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 43.264LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 150W
  • Avg power consumption (panel): 50W
  • Max power consumption (sqm): 600W
  • Avg power consumption (sqm): 200W
  • Standby power consumption (pannello): 50W
  • Max rated current/panel:: AC 220 V / 0.68 A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A5S PLUS
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration chip on LDM (module flash)
  • Control protocol: Novastar
  • Signal input: RJ45
  • Signal output: RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Magnetic LED modules: not available
  • Module size (WxH): 250x250mm
  • Panel size(WxHxD): 500×500×64mm
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Curvability: convex and concave -10° / +10°
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP65/IP54 (front and rear)
  • Panel weight: 6,4kg
  • Weight per square meter: 25,6kg
  • Hanging Panel Quantity =: 20 for hanging and 12 for stacking
  • Compliant Standard: CE, UKCA
