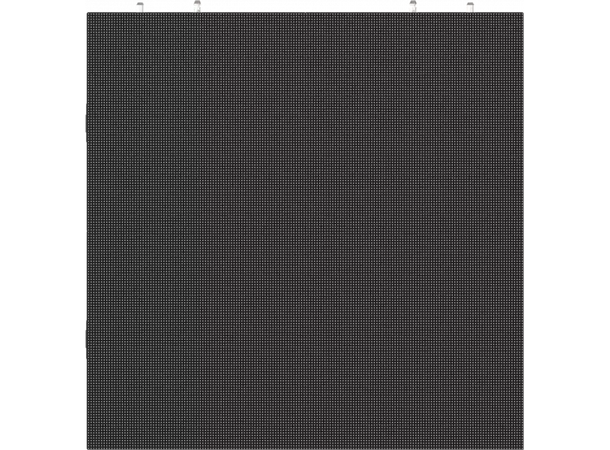

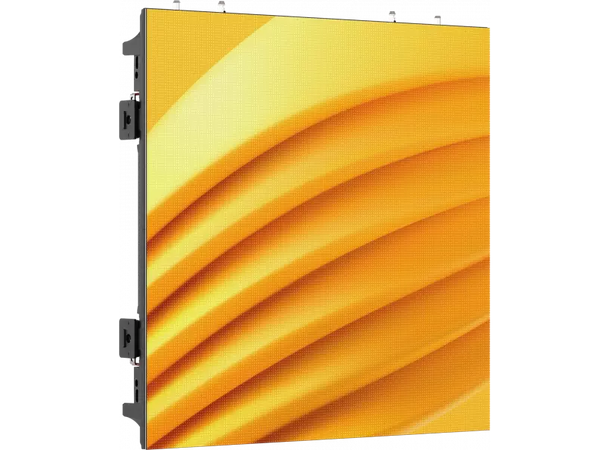

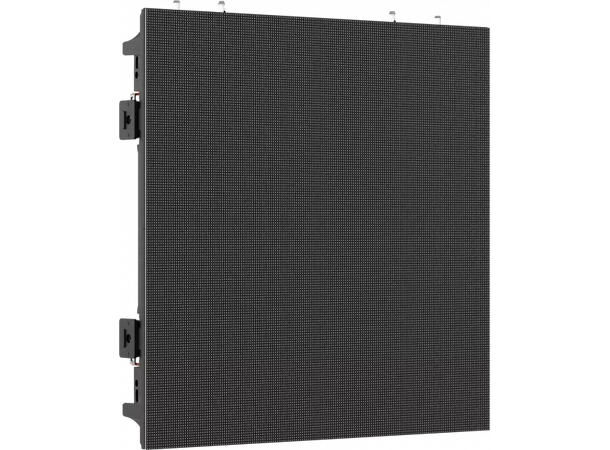

GammaPix 29B is a rental LED screen for indoor use with a 2,9 mm pixel pitch, designed to meet requirements for corporate, studio and install applications.

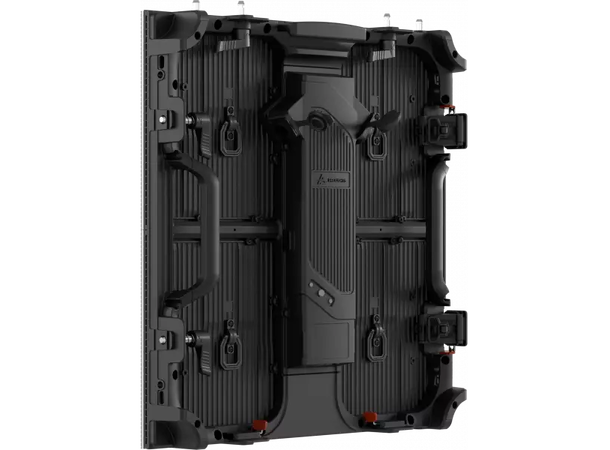

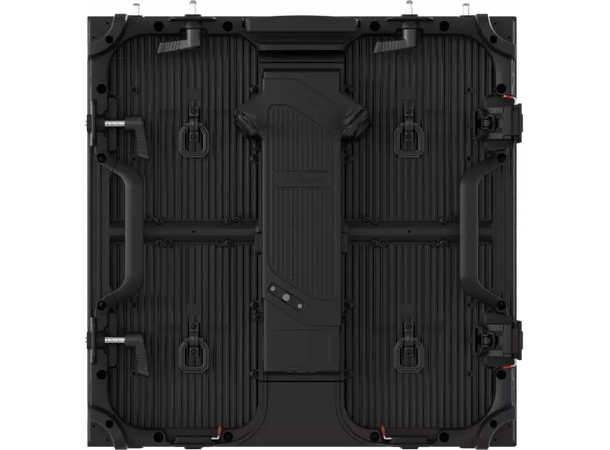

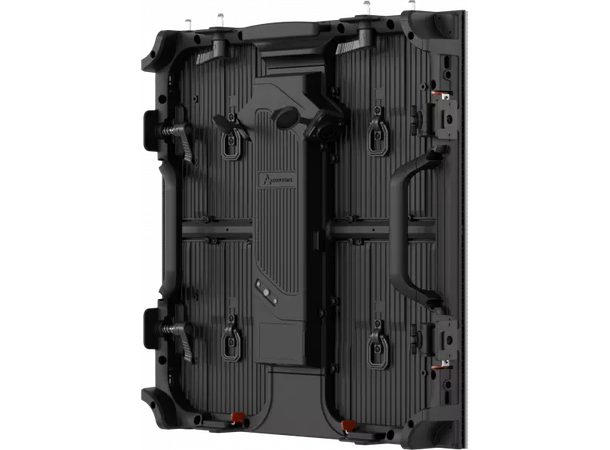

The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as scratch protection of the lamp face, flip corner shield and bottom protection.
GammaPix 29B tiles have on board curve mechanics allowing both concave and convex precise installation of +10° / -10° each tile and the weight has been reduced down to 5.9 kg per panels (23,6 kg per sqm).
The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.
Features:Single person installation, auto lock design, scratch protection and flip corner shield
Built in curve mechanics for +10° / -10° concave & convex
Refresh rate of 3.840 Hz
VIDEO
- Driver chip type: ICN 2153
- LED source: Nationstar SMD 1515 full black
- Pixel pitch: 2,97mm
- Panel resolution: 168x168pixels
- Module resolution: 84x84pixels
- Luminous flux: 650nit
- Contrast: 3.000:1
- Grayscale: 14 bit
- Refresh rate =: 3.840Hz
- Drive Mode: 1/21 scan, constant current
- Vertical viewing angle: 120°
- Horizontal viewing angle: 140°
- LED density: 112.896LED/sqm
- Dead Pixel Ratio: <0,002
- LED avg life span: 100.000
ELECTRICAL
- Power input/output: IPKON Seetronic IN/OUT
- Power supply: AC 110/230 V 50/60 Hz
- Max power consumption (panel): 120W
- Avg power consumption (panel): 40W
- Max power consumption (sqm): 480W
- Avg power consumption (sqm): 160W
- Standby power consumption (pannello): 35W
- Max rated current/panel:: AC 220 V / 0.55 A
- Working temperature: -10°C / +45°C
- Working humidity: 10~80 RH%
CONTROL
- Receiving card type: A5S PLUS
- Other controllers type: mapping, firmware copy, RCFGX restore, calibration chip on LDM (module flash)
- Control protocol: Novastar
- Signal input: RJ45
- Signal output: RJ45
MECHANICS
- Magnetic LED modules: available
- Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
- Module size (WxH): 250x250mm

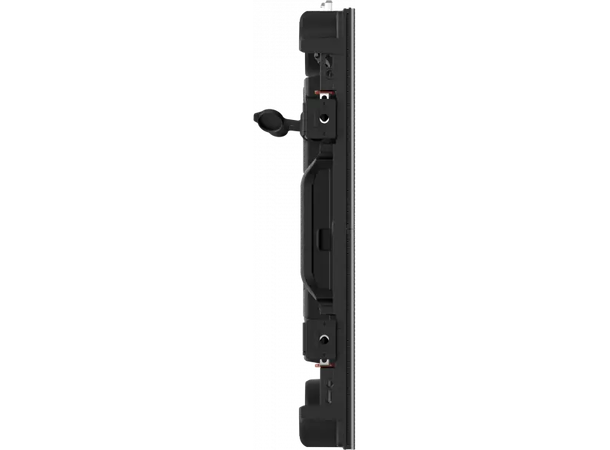

- Panel size(WxHxD): 500×500×63mm
- Vertical hanging system: built-in aliscaf clamp support
- Cooling: natural cooling of the peculiar chassis and to absence of fans
- Connection: seamless locking system
- Curvability: convex and concave -10° / +10°
- Body: die-cast aluminium housing
- Color: black
- IP rating: IP30 (front and rear)
- Panel weight: 5,9kg
- Weight per square meter: 23,6kg
- Hanging Panel Quantity =: 20 for hanging and 12 for stacking
- Compliant Standard: CE, UKCA
