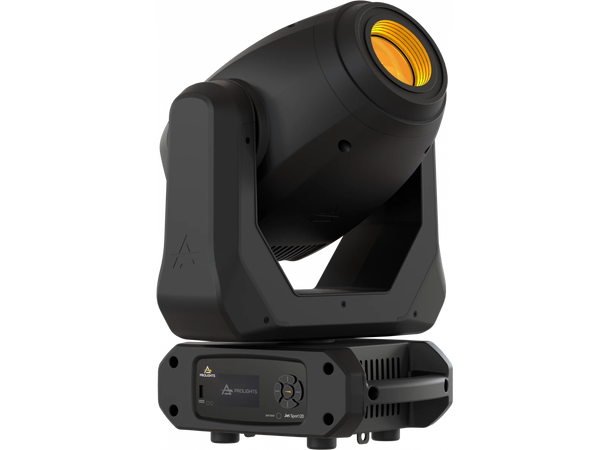

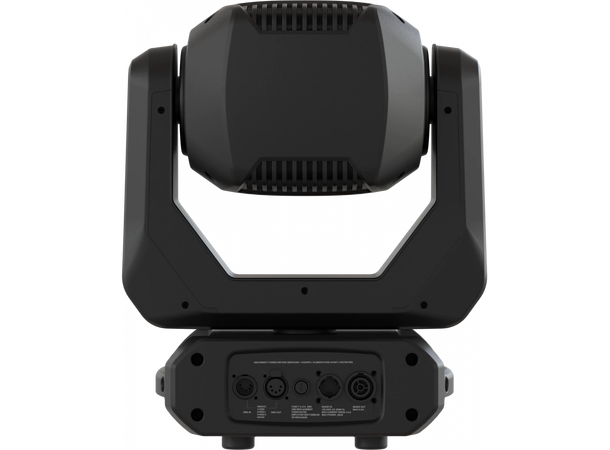

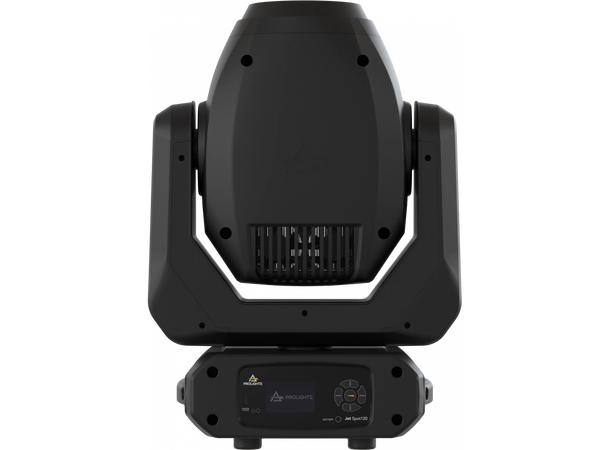

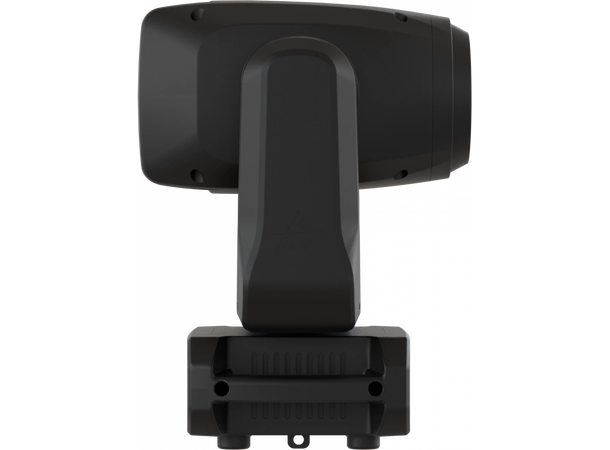

120W Spot Moving head with 9° - 46° zoom
Jet Spot120 is a budget friendly, zoomable, and compact moving spotlight, making it a perfect fit for various venues and corporate events with its compact form factors.
Jet Spot120 delivers remarkable flexibility with its motorized zoom, which ranges from 9° to 46°. The 120W white LED source produces a surprising 5.600 lumen fixture output.
The effect section includes one color wheel, one rotating and one static gobo wheel, prism and frost, meeting the creative demands of lighting designers.
Main features:
120W White LED source, 5.600 fixture lumen output
Motorized zoom from 9° to 46°
One color wheel, one rotating and one static gobo wheels, prism and frost
Technical specifications
LIGHT SOURCE
Source: 120W high-power white LED
CCT: 7.500K
Luminous flux: (9,1°) 4'502 lm - (46,3°) 5'686 lm @Full
Lux: (9,1°) 9'452 lx - (46,3°) 681lx @5 m full
Source life expectancy: > 30.000 h
OPTICS
Zoom range: 9,1° - 46,3° motorised linear zoom
Lens diameter: 75mm / 2.95''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised
COLOUR SYSTEM
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: 22,5 mm - image: 17 mm - thickness: up to 3 mm
Fixed gobos: 10 fixed gobos + open

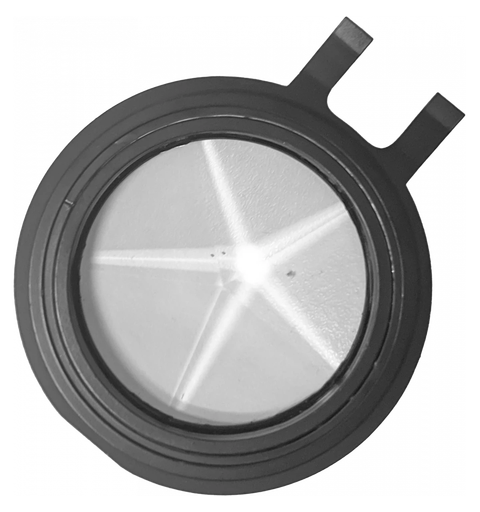

Circular prism: 3f with bi-directional rotation, indexing, interchangeable
Frost: linear 0 - 100% light frost filter, interchangeable
BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan range: 540°
Tilt range: 260°
Pan/Tilt resolution: bit 8 / 16-bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: RAL 9004
CONTROL
Protocols: DMX512, RDM
DMX channels: 20channel
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 238W
Standby power: 50,2 W
Output (at 230V): 16 units on a single power line
Power factor: > 0,94
PHYSICAL
IP rating: 20
Cooling: active, silent operation
Suspension and fixing: any position with quick-lock omega brackets
Signal connection: Neutrik XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
Dimensions (WxHxD): 340 x 479 x 205mm / 13.39''x18.86''x8.07''
Weight: 13,5kg / 29.76lbs
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM
BOX CONTENT
