NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

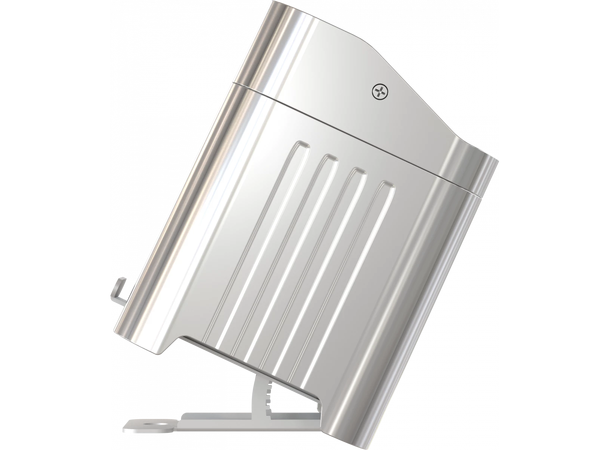

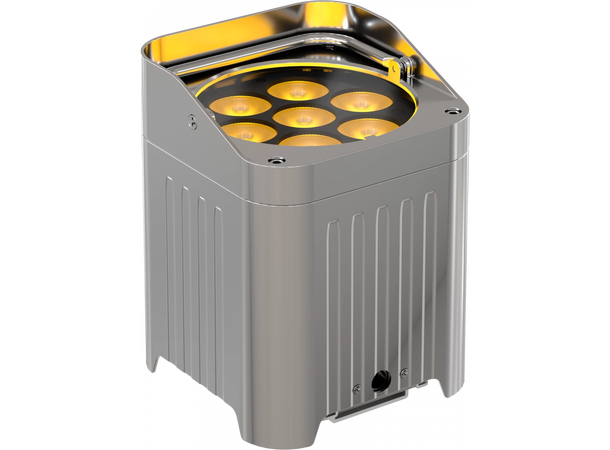

Battery Uplighter with 60W LED source RGB+WW, IP rated
The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.
Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.
With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.
Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.
The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.
Main features:
Technical specifications
LIGHT SOURCE

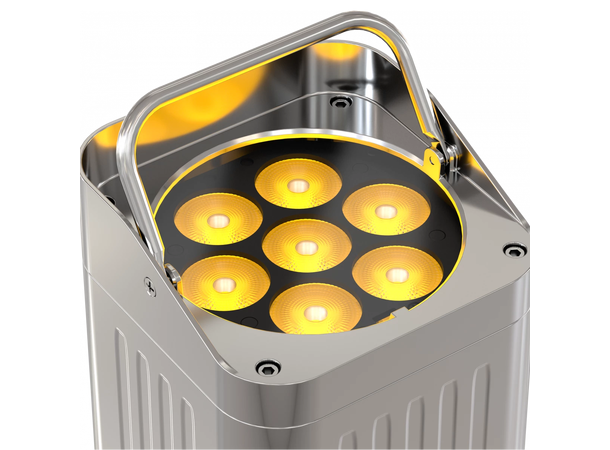

Source: 7x10W RGB + Warm White LED
Luminous flux: 2'927 lm @Full
Lux: 1'493lx @5 m full
CRI: Up to 90
R9: Up to 80
TLCI: Up to 80
TM30 Rf: > 90
TM30 Rg: < 107
Source life expectancy: > 50.000 h
OPTICS
COLOUR SYSTEM
Colour mixing: RGB + Warm White
White presets: 2.700 K -10.000K
Colour wheel: virtual colour wheel with macros
Macros: built-in white presets
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer, colours
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Tilt range: 20° adjustable foot support for tilt regulation (up to 20°)
Body: sturdy die-cast aluminium body
Body colour: black, mirror finishing available
CONTROL
Protocols: CRMX+W-DMX, DMX512, RDM
DMX channels: 4/6/10/3 ch in legacy mode | 1/5/11/17channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings

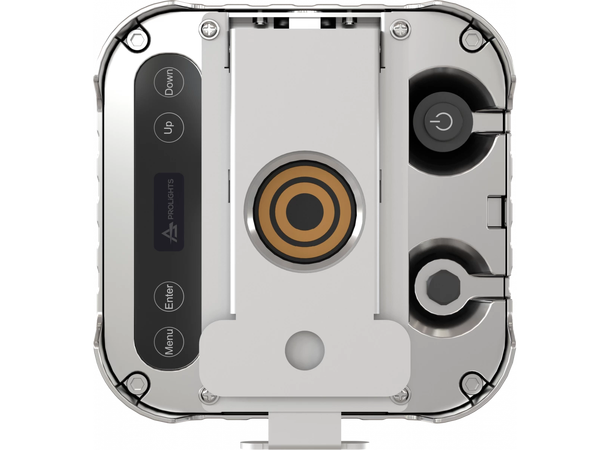

Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
Master/Slave: for multi-unit sync, set one unit as wireless TX (master DMX) and all others as slave receivers.
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: 0° ~ +45° Ta
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
BATTERY
Battery: 16,8V lithium
Estimated battery life: Selectable 3h / 6h / 8h / 12h / 18h
Re-charge connection: magnetic fast-charge in case
Re-charge time: 4h/max
Battery status: shown on display
PHYSICAL
IP rating: 65 for temporary outdoor application, not for fixed installations
Cooling: passive cooling and fan-free
Suspension and fixing: M12 threaded insert for easy clamp installation
Data connection: CRMX transceiver compatible with CRMX and W-DMX G3/G4s
Dimensions (WxHxD): 138x180x147mm / 5.43''x7.09''x5.79''
Weight: 3,4kg / 7.5lbs
CERTIFICATIONS / APPROVALS
BOX CONTENT
1 x SMARTBATPLUSNEO
1 x User Manual
