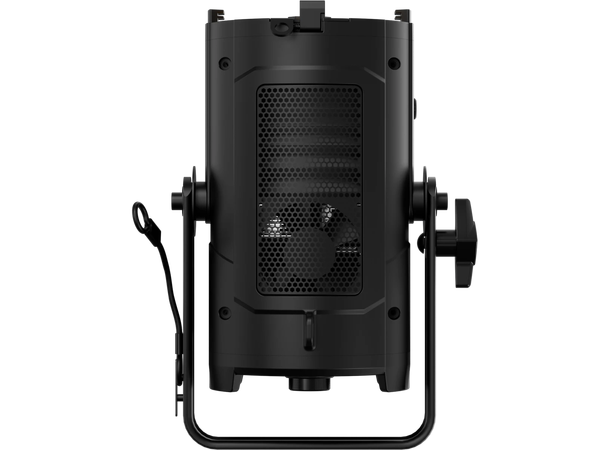

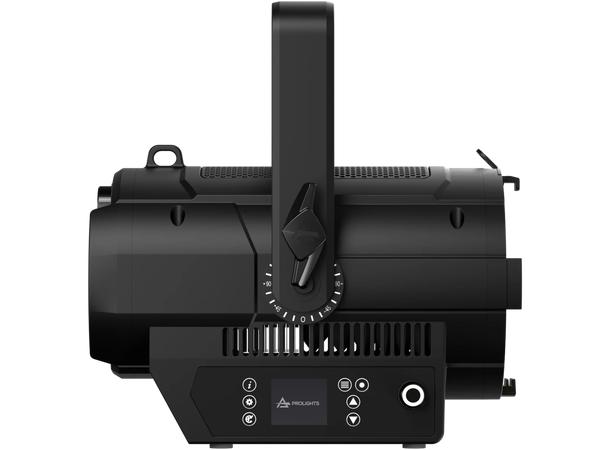

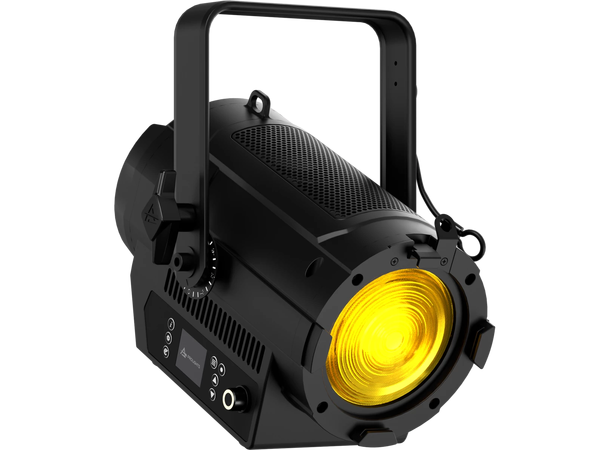

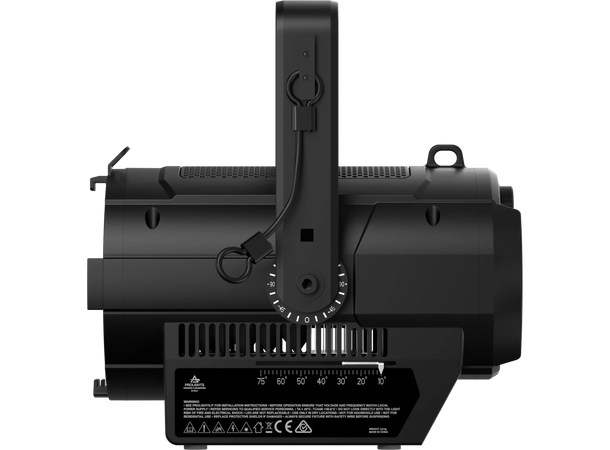

120 W Led Fresnel with 6 color source, 130mm-5'' lens, barndoor incl.
EclFresnel CT+XS is a compact 120W LED Fresnel, outputting 3700 lm and engineered with a 6 colours light source and a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresnels.
The newly designed optical system provides internal zoom from 10° to 75°, maintaining high efficiency at any beam angle without any change to the luminaire's physical size throughout the zoom range. An optional PC lens kit is also available to achieve its specific light distribution.
The SpektraOs algorithm delivers consistency in operations also with the other size of ECL Frensel, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.
The EclFresnel CT+ also performs silently, allowing it to be an indispensable workhorse for Broadcast, Theatre and coorporate applications.
Main features
- 120W 6 color LED Fresnel, provides 3,700 lm
- 10-75° Internal zoom system, 130mm/5'' Fresnel lens, and Optional PC kit
- SpektraOs allow high value in CRI up to 98, and consistent color reproduction across the range
- CRI: 97,7 @3.200K; 94,5 @5.600 K - R9: 96,5 @3200K; 95,4 @5.600 K
Technical specifications
LIGHT SOURCE
- Source: 120W 6 colour LEDs source
- Luminous flux: (11,3°) 2.437 lm - (74,7°) 3.669 @Full
- Lux: (11,3°) 2.309 lx - (74,7°) 218lx @5 m full
- CRI: 97,7 @3.200K; 94,5 @5.600 K
- R9: 96,5 @3200K; 95,4 @5.600 K
- TLCI: 87 @3200K; 92 @5.600 K
- TM30 Rf: > 94 @3.200K; > 91 @5.600 K
- TM30 Rg: < 101 @3.200K; < 105 @5.600 K
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Zoom range: 10°-75° manual
- Lens diameter: 5'' / 130mm / 0.2''
- Lens type: PMMA lens
- Additional optics: PC lens available as accessory
- Other: barndoor and gel frame included
COLOUR SYSTEM
- Spektra OS: unmatched color precision and consistency
- Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset
- Colour mixing: 6 colour LEDs source
- CCT: Linear CCT adjustment from 1.850 K-20.000K
BODY
- Hardware on-board: included filter frame and 8 doors barndoor
- Body: die-cast magnesium alloy
- Body colour: RAL 9004
CONTROL
- Protocols: DMX512, RDM, CRMX (optional)
- Stand Alone: 1 push encoder
- DMX channels: From 1 to 34channel
- Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and
- W-DMX, Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: 2.4'' Color display
- Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -10° ~ +45° Ta
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Low Voltage DC mains: 48V
- Max power consumption: 130W
- Standby power: 5,8 W
- Output (at 230V): 20 units on a single power line
- Power factor: > 0,94
PHYSICAL
- IP rating: IP20
- Cooling: active, silent operation

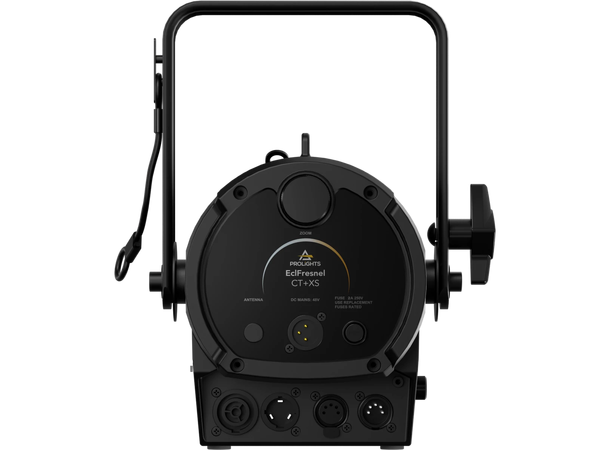

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 286x513x356mm / 11.26''x20.2''x14.02''
- Weight: 3,8kg / 8.38lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE
BOX CONTENT
- 1 x ECLFRCTPXSBK
- 1 x ECLFRCTPXSFFBK
- 1 x ECLFRCTPXSBDBK
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
- User Manual
