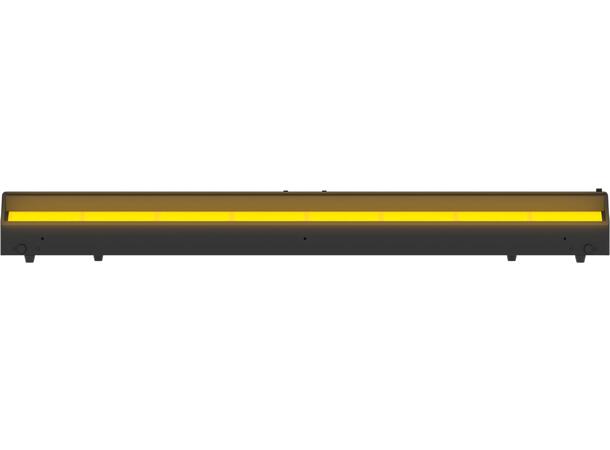

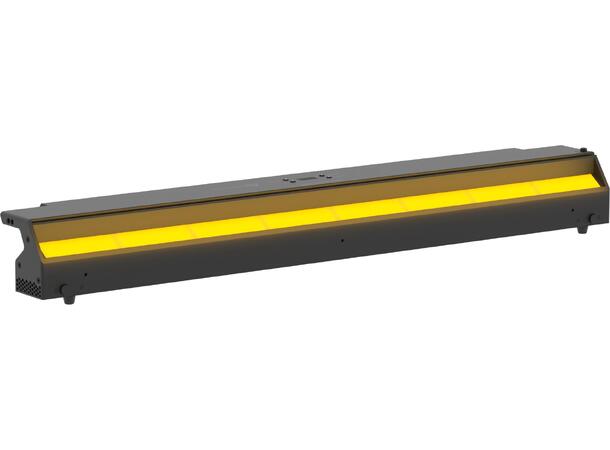

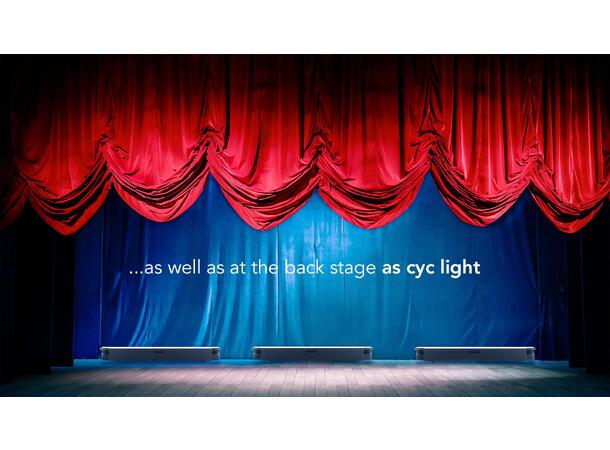

EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight,
designed in a surprisingly low profile form factor to meet applications
at both front and end of the stage, offering an unprecedent level of
brightness in its category. The fixture is equipped with a custom and
calibrated RGB+WarmWhite LED source, which is capable to deliver
a linear and high quality white reproduction of the entire spectrum
with high CRI, TLCI and TM30 performances. The Optical system
has been designed to offer a very wide asymetric beam angle, and
capable of a superior lumen efficiency, making the EclCyclorama
range a very flexible solution, suitable for both application where
fixture are connected each other or separated by a considerable
distance, without worrying of dark-edge or uniformity gaps. The
fixture is extremely user firendly and offers a moltitude of control
possibilities being DMX, RDM, Artnet and Wireless DMX.
MAIN FEATURES
• RGB+WarmWhite colour systems allows high quality of whites
(CRI 93 @ 3200K) and bright colours.
• Slim design, with only 12 cm height for easy implementation in
the front or at the back of the stage.

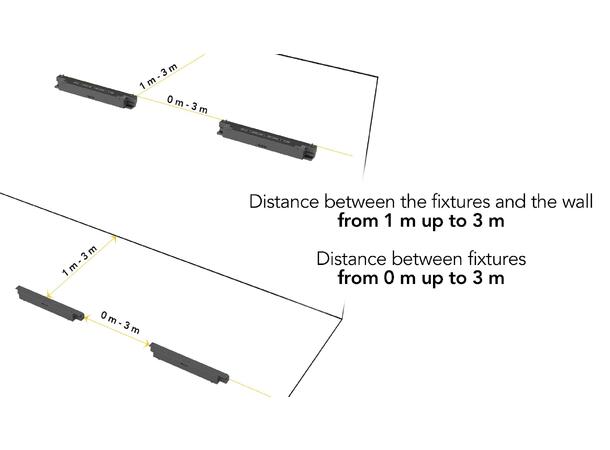

• Wide Asymmetric beam angle to allow flexible installation at
modular distances between fixtures
• Hardware designed with tilt angle adjustment, beam control
and flexible hanging and ground stacking applications.
TECHNICAL SPECIFICATION
EclCyclorama 100
330W Linear soft CYC and Flood light with RGB+WarmWhite color mixing
LIGHT SOURCE
Source: 330 W RGB + Warm White
Luminous flux: (with 80°x40° filter on board) 27’342 lm @full
Lux: @1 m to wall and 1,5 m height @ full (with standard filter 80°x40°)
1’240 lx - (with 40° filter) 2’610 lx - (with 10°x60° filter) 3’110 lx - (with
30°x60° filter) 2’880 lx
CRI: 93 @ 3200 K; 92,6@ 5600 K
R9: 88 @ 3200 K; 93,7@ 5600 K
TLCI: 91 @ 5600 K
TM30 Rf: 89,8 @ 5600 K
TM30 Rg: 106 @ 5600 K
Source life expectancy: > 50.000 h
OPTICS
Beam angle: (HxV) 80°x40°
Additional optics: see available accessories
COLOUR SYSTEM
Colour mixing: RGB + Warm White
CTC: CTC control, + / - green correction, Tungsten emulation
White presets: 2.800 K - 6.500 K
Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
Control Resolution: 16bit Dimmer, Colours
Special features: linear crossfade channel from any white to any colour;
virtual CTO on colours
BODY
Hardware on-board: sockets for Quick-Lock Omega bracket (clamp not
included)
Body: sturdy die-cast aluminium body
Body colour: black
Other: +/- 8° angle adjusting
CONTROL
Protocols: DMX512, RDM, Art-Net, W-DMX
W-DMX: included, wireless solution receiver
RDM: RDM ready for remote monitoring and settings

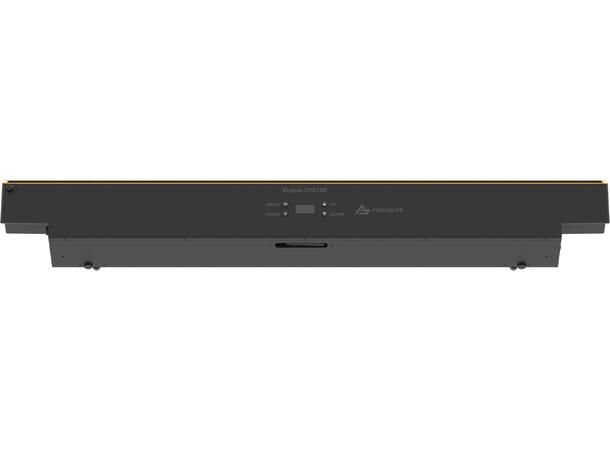

Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
Dimmer curves: Selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240 V - 50/60 Hz
Max power consumption: 400 W
Power factor: >0,94
PHYSICAL
Cooling: heat sink without fan

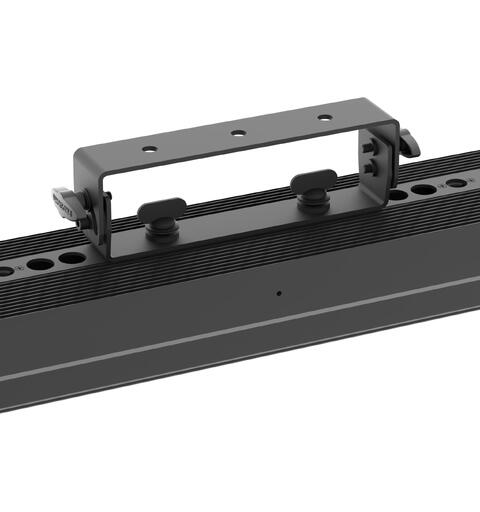

Suspension and fixing: any position with quick-lock omega brackets

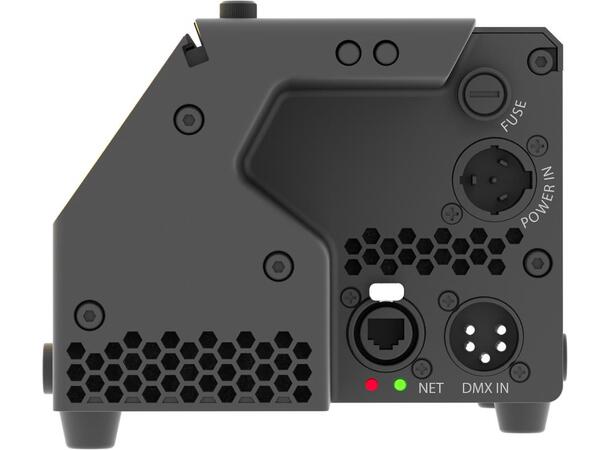

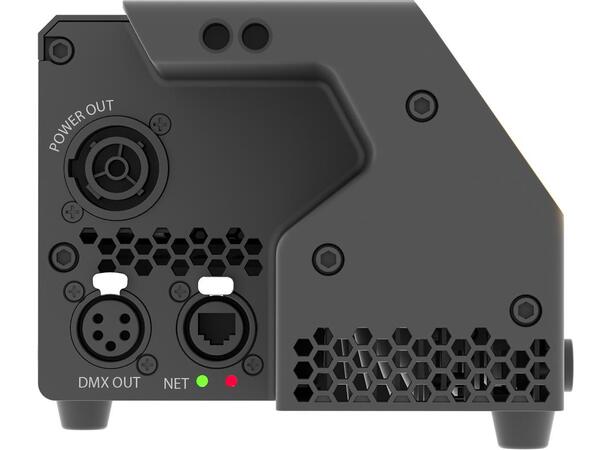

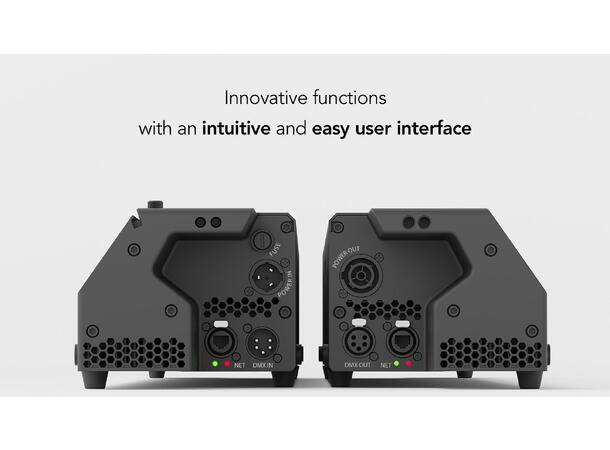

Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: RJ45 IN/OUT
Power connection: Seetronic powerCON waterproof IN/OUT
connectors
IP rating: IP20
Dimensions (WxHxD): 1000x119x148 mm
Weight: 9,6 kg
