NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

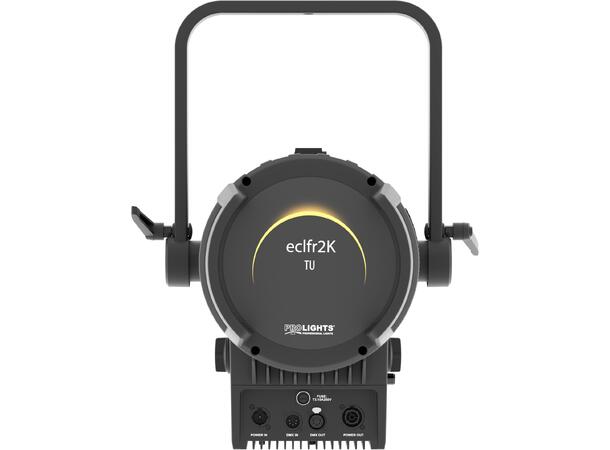

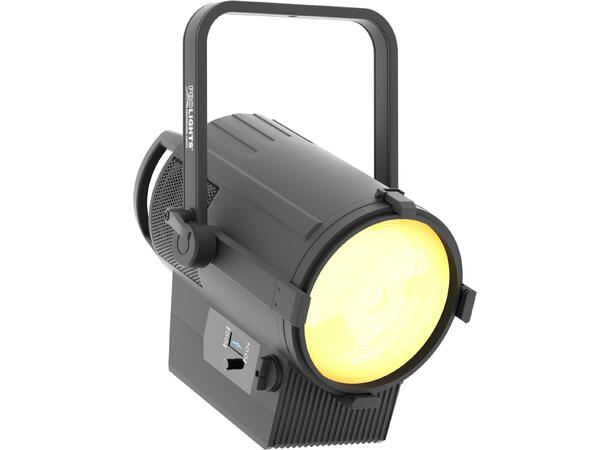

EclFresnel 2K is the LED replacement for a standard tungsten 2.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclFresnel 2K adds all the advantages of LED to the Fresnel.
Features:
TU (3.000 K) and DY (5.600 K) versions available both with HD dimming
Fresnel lens with 15° to 47° zoom range
Silent operation for studio and stage use
LIGHT SOURCE
Source: 500W high-power white LED
CCT: (TU) 3.000 K - (DY) 5.600K
Luminous flux: (TU) (15°) 20'256 lm; (47°) 26'126lm @full
Luminous flux: (DY) (15°) 26'255 lm; (45°) 32'428 lm @ full
Lux: (TU) (15°) 9'047 lx - (47°) 1'770lx @5 m full
Lux: (DY) (15°) 11'975 lx - (47°) 2'306lx @5 m full
CRI: (TU) >94; (DY) >91
R9: (TU) >73; (DY) >80
TLCI: (TU) >93; (DY) >93
TM30 Rf: (TU) >92; (DY) >88
TM30 Rg: (TU) <103; (DY) <104
Source life expectancy: > 50.000 h
OPTICS
Zoom: 15° - 47° half peak angle
Lens diameter: 250mm
Lens type: Fresnel zoom lens
Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
Colour mixing: warm white
Macros: several pre-build macros with adjustable speed
DYNAMIC EFFECTS
Static colour mode: selection of static dimmer
Manual colour mode: manual adjust of dimmer throught menu and knob
Auto mode: built-in programs with execution speed adjustment
BODY
Hardware on-board: filter frame, 8 doors barndoor, spigot
Pan angle: (for pole operated version) 360° with manual regulation
Tilt angle: (for pole operated version) 150° with manual regulation
Body: sturdy die-cast aluminium body
Body colour: black, white finishing available
Other: Spigot 28 mm
CONTROL
Protocols: DMX512, RDM, rotatory knob
DMX channels: 1 / 2 - 1 / 2 - 2 / 3 / 5channel
RDM: RDM ready for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain
Other: 16bit control of dimmer
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 500W
Output (at 230V): 4 units on a single power line
Power factor: >0,96
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: bracket for hanging and positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 421x537x456 mm - (for pole operated version) 401x691x456mm
Weight: 17,2 kg - (for pole operated version) 18kg
BOX CONTENT
1 x ECLFR2K
1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
1 x ECLFRSPG
1 x ECLFR2KBD
1 x ECLFR2KTPG
User Manual
