ECLIPSEJZIP is an IP rated zoomable ellipsoidal designed for exterior application. ECLIPSEJZIP reaches an exceedingly high lumen output of nearly 6'000 lumens, and all in a compact size allowing for use on any outdoor show or for logo and texture projection over buildings. ECLIPSEJZIP can use two different manual zoom lenses (optional) being 15° - 30° or 25° - 50° and it can be mounted at any distance from the projection surface.
Features:160 W white LED engine with 3.000 K CT, delivering nearly 6'000 lumens
IP65 allowing for temporary outdoor installations and events
Optional optics available: 15° - 30° and 25° - 50°
LIGHT SOURCE- Source: 160W Warm White LED
- CT: (TU) 3.100 K - (DY) 5.500K
- CRI: >90
- Luminous flux: (TU - 50°) 5'274 lm - (TU - 25°) 5'770 lm; (TU - 30°) 4'200 lm - (TU - 15°) 5'012 lm - (DY - 50°) 5'390 lm - (DY - 25°) 4'911 lm; (DY - 30°) 3'844 lm - (DY - 15°) 4'450lm
- Lux: (TU - 50°) 2'040 lx - (TU - 25°) 5'160 lx; (TU - 30°) 3'710 lx - (TU - 15°) 12'900 lx - (DY - 50°) 1'750 lx - (DY - 25°) 4'530 lx; (DY - 30°) 3'000 lx - (DY - 15°) 11'200lx @3 m
- Lux: (TU - 50°) 734 lx - (TU - 25°) 1'857 lx; (TU - 30°) 1'336 lx - (TU - 15°) 4'644 - (DY - 50°) 630 lx - (DY - 25°) 1'630 lx; (DY - 30°) 1'080 lx - (DY - 15°) 4'032lx @5 m
- Source life expectancy: > 50.000 h
- Other: TLCI: >91 - TM30-15 RE/RF: 97/88

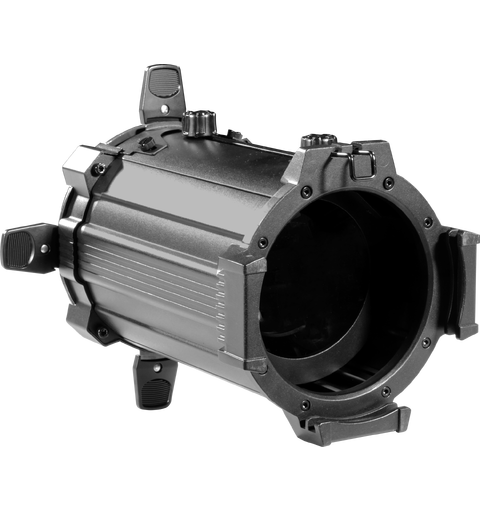

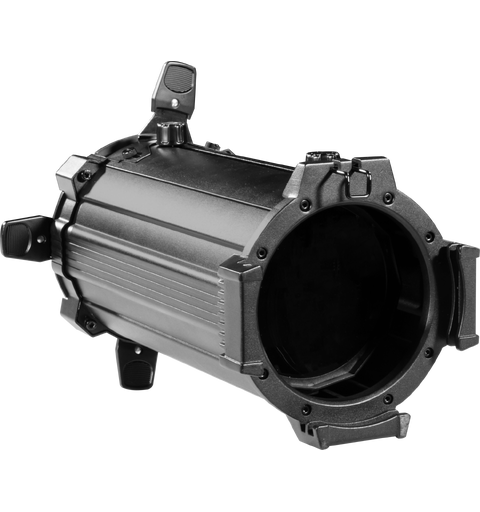

OPTICS- Beam angle: (optional) manual zoom lens 15°-30° or (optional) manual zoom lens 25°-50°
- Lens diameter: 87mm
- Lens type: high-quality glass lens optics
- Focus: manual
COLOUR SYSTEM- Macros: several pre-build macros with adjustable speed
DYNAMIC EFFECTS- Gobo size: M, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
- Static colour mode: selection of static dimmer
- Manual colour mode: manual adjustment of dimmer and strobe
- Auto mode: built-in programs with execution speed adjustment
BODY- Hardware on-board: on board mechanics for rigging to the ceiling
- Body: sturdy die-cast aluminium body conceived for long-time durability
- Body colour: black
CONTROL- Protocols: DMX512, W-DMX
- DMX channels: 1 / 3channel
- W-DMX: included, wireless solution receiver
- RDM: RDM ready for fixture remote monitor and settings
- Display: black OLED high resolution display
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
- Other: 16bit control of dimmer
ELECTRONICS- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 different dimming curves available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° ~ +45°
- Flicker: flicker free operation
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL- Power consumption: 136 W
- Power supply: 100-240 V – 50/60 Hz
- Power consumption (at 230 V): 136W
- Power consumption (at 120 V): 138,6W
- Power factor: pF 0,98 @120 V - pF 0,97 @230 V
PHYSICAL- Cooling: forced air with low noise fan
- Sospension and fixing: hanging bracket suitable for safe hanging and positioning
- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON waterproof IN/OUT connectors
- IP rating: 65 for temporary outdoor application, not for fixed installation
- Dimensions (WxHxD): 275x440x275mm
- Weight: 7,9kg
