NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

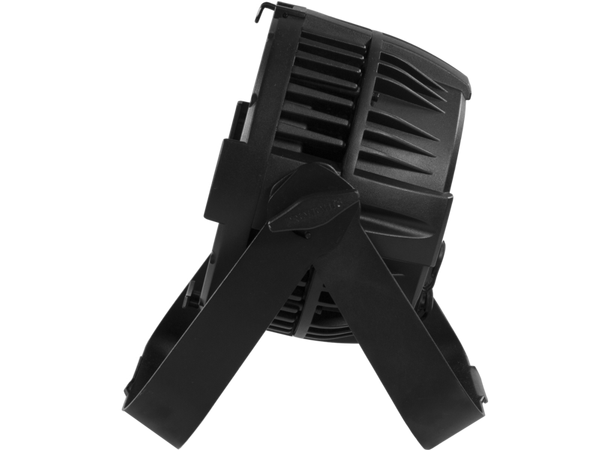

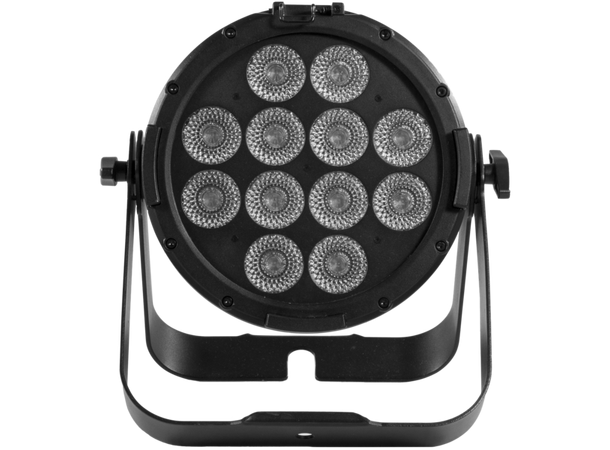

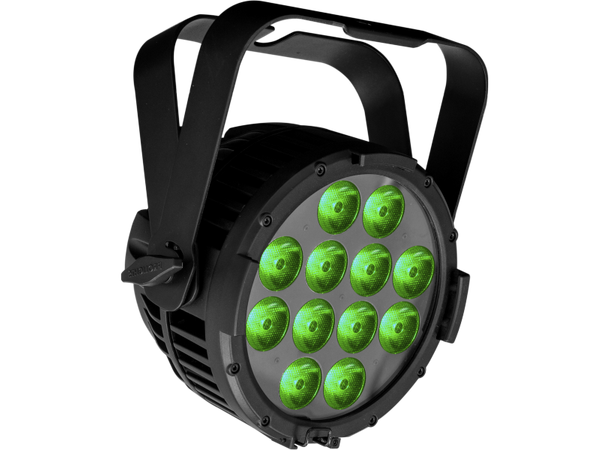

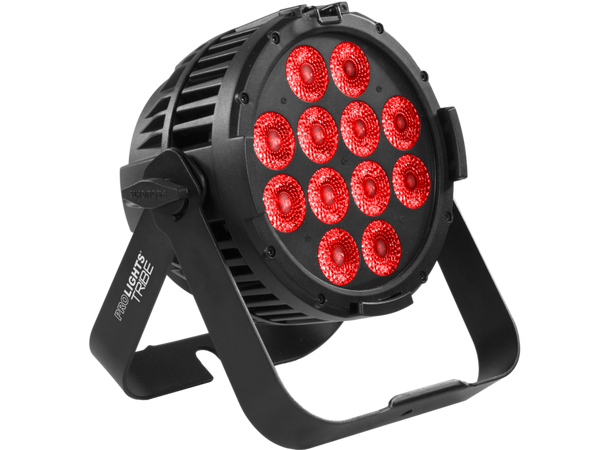

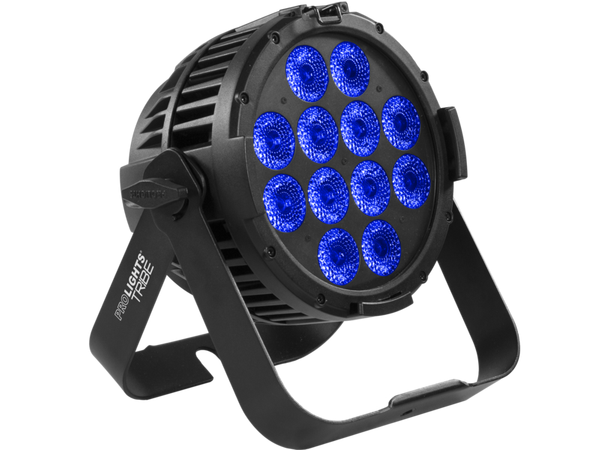

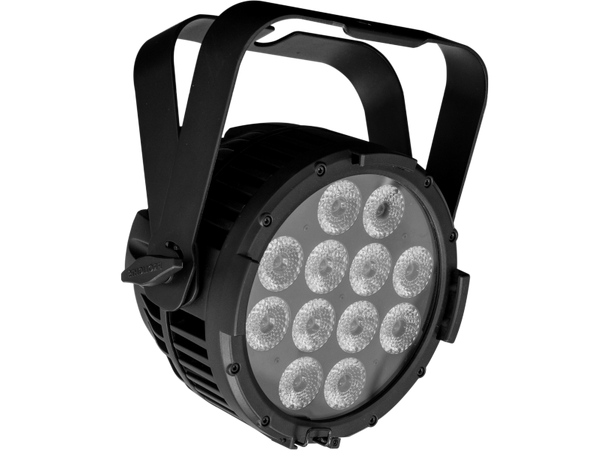

LumiPar 12IP is a bright and flexible IP LED PAR made for concerts, theatres and to perform as an architectural accent light for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and being totally fan-free allows for total silence during operation.
Features:
IP65 die-cast aluminium housing
12x9 W RGBW LED PAR
Fan-free and flicker-free
LIGHT SOURCE
Source: 12x9W RGBW LEDs
Luminous flux: (20°) 3'900 lm - (45°) 6'700lm
Lux: (20°) 2'535lx @3 m full
Lux: (45°) 1'154lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: available in 20° or 45°
Field angle: 36° or 60°
COLOUR SYSTEM
Colour mixing: RGBW / FC
White presets: 3.000 K ~ 10.000K
Colour wheel: virtual colour wheel with presets
Macros: built-in white presets
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512
DMX channels: 4 / 6 / 11channel
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 0 - 30 Hz, electronic
Operating temperature: -20° ~ +45°
Flicker: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 110W
Power consumption (at 120 V): 110W
Output (at 230 V): 33 units on a single power line
Output (at 120 V): 18 units on a single power line
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

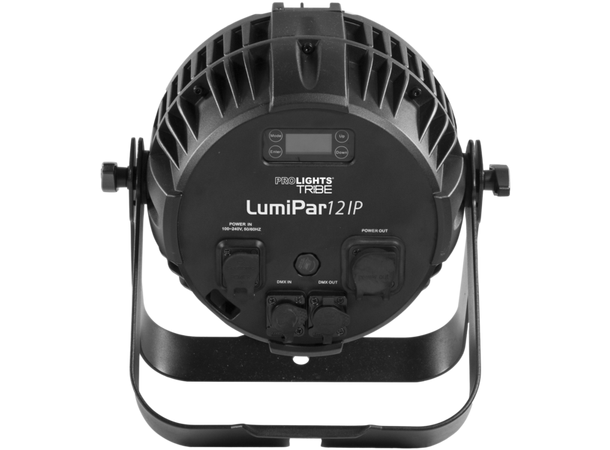

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
IP rating: 65 for temporary outdoor application, not for fixed installation
Dimensions (WxHxD): 305x326x177mm
Weight: 6,2kg
