NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER
PanoramaIP AirBeam is a stunning IP65 moving beam light which delivers an unbelievable bright, fat 2° beam ideal for an outdoor searchlight and big air look. Designed to make a statement, the PanoramaIP AirBeam can truly make an event stand out or fill a large outdoor space with spectacular beams.
Features:
IP65 rated for temporary outdoor application, not for fixed installation
Powerful 440 W S Osram HTI lamp combined with 167 mm HD front lens for bright 2° beam
Extensive set of effects including linear CMY mixing, rotating gobo wheel, static gobo wheel, circular and linear prisms, linear frost and focus
LIGHT SOURCE
Source: 440W S Osram Sirius HRI
CCT: 7.000K
CRI: 80
Luminous flux: 12'457lm
Lux: 1'270'259lx @5 m
Lux: 317'565lx @10 m
Source life expectancy: 1.500 h
OPTICS
Beam angle: 2°
Lens diameter: 167mm
Lens type: high-quality glass lens optics
Focus: motorised with auto-focus
COLOUR SYSTEM
Colour mixing: CMY colour system on 3 gradually fading colour wheels
CTC: on wheel 2.500 K and 3.200 K + CTB
Colour wheel: 13 dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
Rotating gobos: 9 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 15,8 mm - image: 9 mm - thickness: 0,3 mm
Fixed gobos: 15 fixed gobos + open
FX generator: prisms overlap for spectacular aerial effects
Circular prism: 16f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: linear 0 - 100% frost filter
BODY
Pan angle: 630° - 540°
Tilt angle: 230°
Pan/Tilt resolution: bit 16 bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black
CONTROL
Protocols: DMX512, RDM, Art-Net, W-DMX
DMX channels: 19 / 22 / 28channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX
ELECTRONICS
Dimmer: linear 0 ~ 100% mechanical dimmer
Strobe / shutter: 1 - 28 flash(s), mechanical
Operating temperature: -20° ~ +40°
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 522W
Power consumption (at 120 V): 522W
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: any position with quick-lock omega brackets
Signal connection: Seetronic XLR 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN connector
IP rating: 65 for temporary outdoor application, not for fixed installation

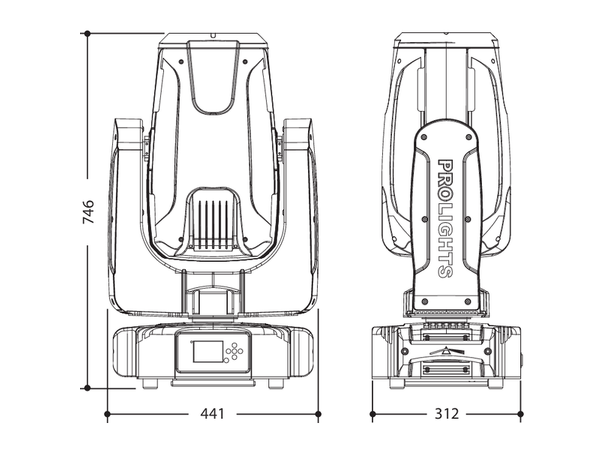

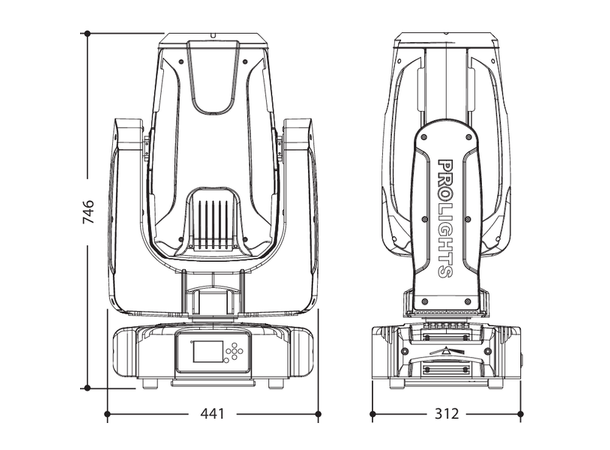

Dimensions (WxHxD): 441x746x327mm
Weight: 39kg
