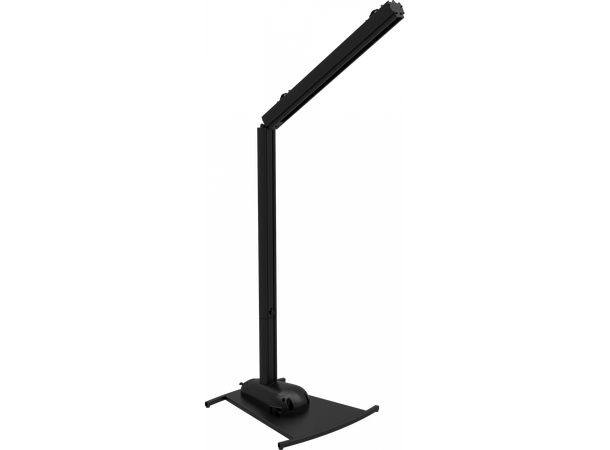

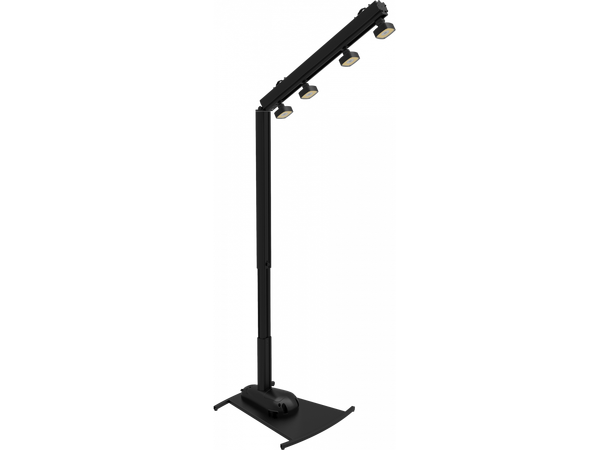

Smart Modula is a cable-free battery fixture which establishes a new form of decorative lighting for events, banquets and gardens. Its modular and customisable assembly allows for the light to stand from the floor or hang as a PINSPOT four-bar and to be packed in a comfortable carry-on size. The light emitters are adjustable and can slide on the track allowing for perfect focusing as well as fully interchangeable allowing for spot/wash or mixed configurations. All available in full colour or white colour mixing.
Smart Modula (Core components to be completed with accessories) includes:
- Metal baseplate
- Baseplate with supporting bar
- Extension bar with the adjustable height
- Heading bar with light track and electronics (containing 1 battery)
OPTIONAL accessories to complete the core element:

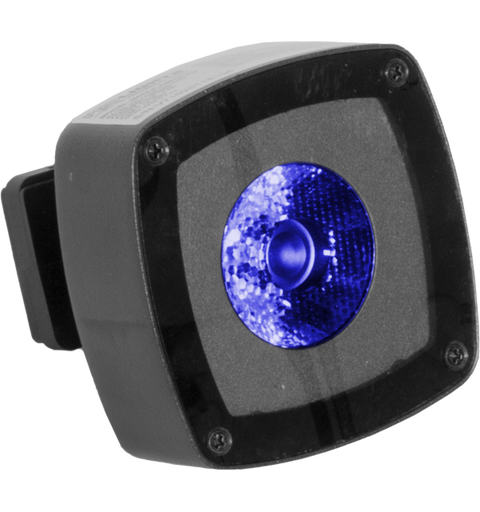

- MODULASPOT: 2pcs spot LED dot with 1 LED source 15° beam, available in full colour or white colour mixing (Max 6pcs on each SMARTMODULA)

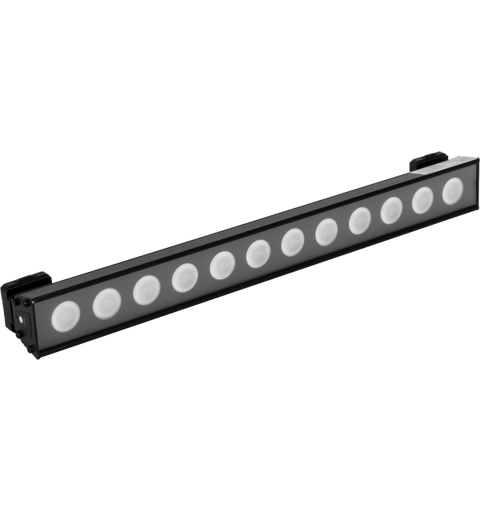

- MODULAWASH: 1pc wash LED strip with 12 LED source, 60° beam, available in full colour or white colour mixing (Max 1pcs on each SMARTMODULA + 2 spot)
- MODULABBAT: 1pc base extra-battery to be installed inside the base to extend battery operation (Max 1pcs MODULABBAT in each baseplate)
Features:
Smart Modula design allows floor standing with flexible swivel joints, tilt-able stand or hanging with quick-lock omega brackets
Accessory fixtures available in RGBW / FC and white colour mixing as well as with spot or wash optics
Each emitter is pixel mapped and can slide and be focused individually (not included)
The base houses room for an extra battery (optional) and the stand can be height adjusted
LIGHT SOURCE
Source: W light source is supplied as accessory as spot, wash, full colour or white
CCT: optional - FC or WH SPOT 5.600 K - WH WASK 6.400K
Source life expectancy: > 30.000 h
Other: Light source is supplied as accessory as SPOT or WASH, FC or White
OPTICS
Beam angle: SPOT (Opt) 15° - WASH (Opt) 60°
COLOUR SYSTEM
Colour mixing: interchangeable light source: spot or wash with full colour or white LED source
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Hardware on-board: see the introduction description
Pan angle: 360° metal joint for 360° rotation of header bar
Tilt angle: 120° with manual regulation
Body: sturdy stretching aluminium body conceived for long-time durability
Body colour: matte black
CONTROL
Protocols: W-DMX
Pixel control: pixel2pixel control
W-DMX: included, wireless solution receiver
Display: black OLED high resolution display
IR: infrared sensor controlled by remote
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: -10° ~ +40°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
BATTERY
Battery: (head) 1 x 14,8 V - (base - optional) 1 x 14,8V lithium
Estimated battery life in colour change mode up to: refer to the user manualh
Estimated battery life in single colour mode up to: refer to the user manualh
Estimated battery life in full-mode up to: refer to the user manualh
Re-charge connection: power cable
Re-charge time: head battery 5,5 h/max - base battery 11h/max
Battery status: LED battery status indicator
Other: check user manual for further information about battery autonomy for all possible compositions
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: hanging bracket suitable for safe hanging and positioning
Power connection: Neutrik powerCON IN connector
IP rating: 20
Dimensions (WxHxD): 739x(2.920~3.475)x689mm
Weight: w/o baseplate 23,5 kg - with baseplate 38,5kg
