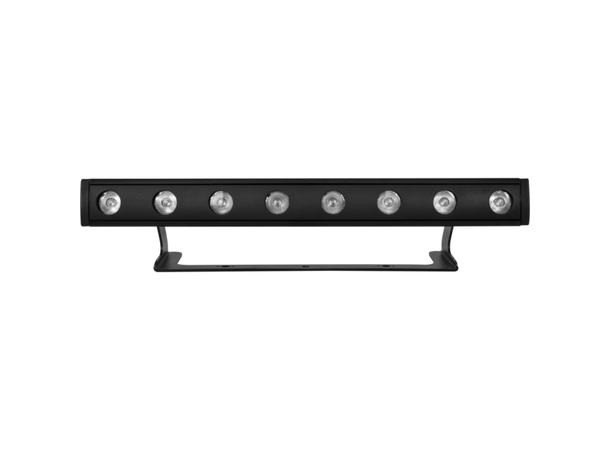

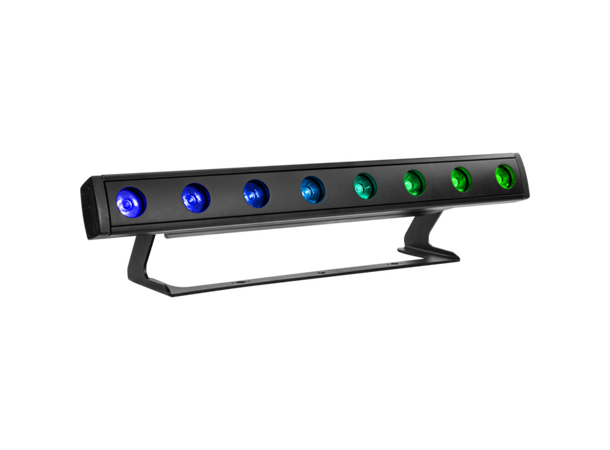

Z 8Strip is a new generation battery operated fixture that marks a new step in wireless lighting technology, being one of the brightest portable fixtures in the event industry. Z 8Strip is encased in IP65 rated housing allowing it to meet any working condition. Featuring 8x10 W high-power RGBW full colour CREE LEDs pixel controlled to achieve high brightness and can also a favourite for temporary architectural installations. Z 8Strip is equipped with a lithium battery pack allowing it to be left out for up to 16 hours (colour-changing) and W-DMX control for full cable-free operations.
Features:
Huge light output from a battery luminaire with 8x10 W CREE XML RGBW LEDs
Wireless DMX control, 8 hours battery life on full white and IP65 rating for incredible versatility
On-board mains and DMX connectors for standard use
LIGHT SOURCE
Source: 8x10W RGBW LEDs
Luminous flux: 1'064lm
Lux: 4'600lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 10°
Field angle: 21°
Other: magnetic holder for diffusion filters or gels
COLOUR SYSTEM
Colour mixing: RGBW / FC
White presets: 3.200 K ~10.000K
Colour wheel: virtual colour wheel with presets
Macros: built-in white presets
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512, W-DMX
DMX channels: 4 / 6 / 10 / 32 / 37channel
Pixel control: pixel2pixel control
W-DMX: included, wireless solution receiver
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: 0° ~ +35°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
BATTERY
Battery: 14,8V lithium
Estimated battery life in colour change mode up to: 16h
Estimated battery life in single colour mode up to: R: 16 h - G: 12,5 h - B: 13 h - W: 13h
Estimated battery life in full-mode up to: 6h
Re-charge connection: power cable
Re-charge time: 5h/max
Battery status: shown on display
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: hanging bracket suitable for safe hanging and positioning

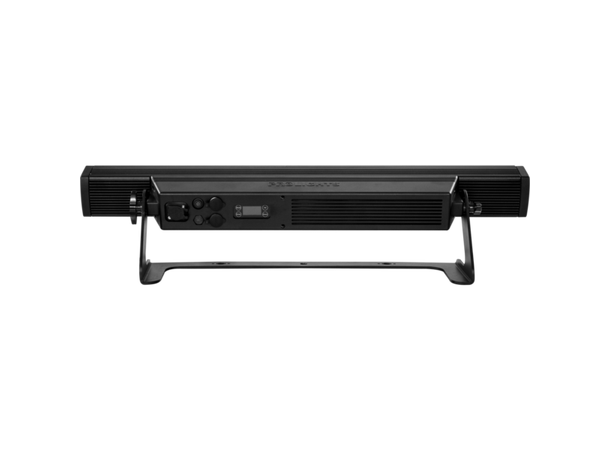

Signal connection: Seetronic XLR 5p IN/OUT connectors
Data connection: W-DMX receiver
Power connection: Seetronic powerCON waterproof IN/OUT connectors
IP rating: for temporary outdoor installation - IP65 (front) - IP54 (bottom)
Dimensions (WxHxD): 801x216x153mm
Weight: 10kg
