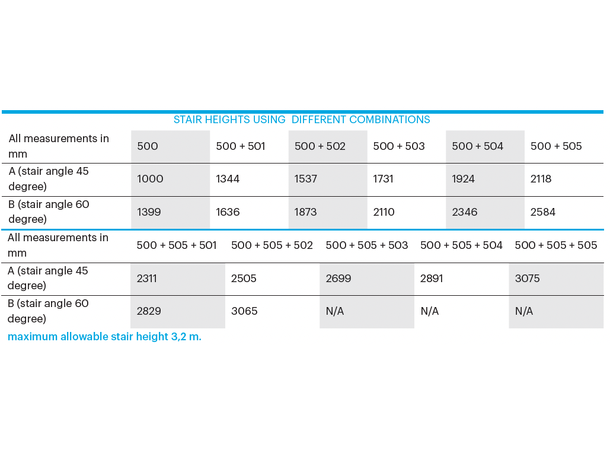

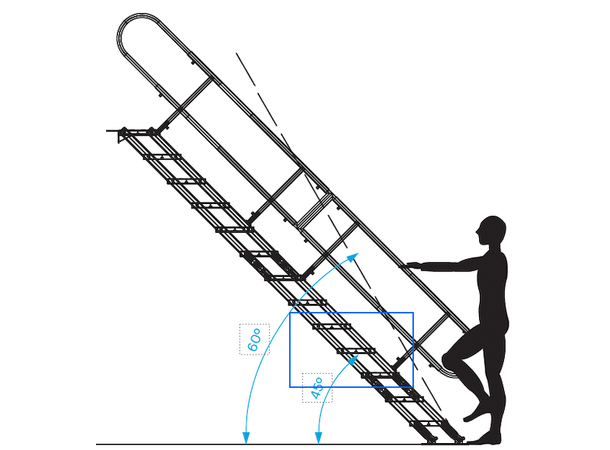

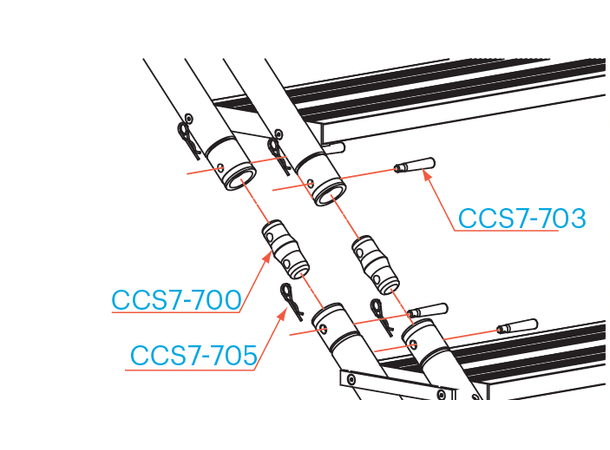

ADJUSTABLE STAIR System Description: This unique, fully adjustable, staircase consists of separate units which can be combined to form a staircase between 1 m minimum and 3,2 m maximum height. The units are based on four main beams of 60 × 6 mm tube to which the stair steps are connected. The stair steps are flexible and have a varying angle of 45 to 60 degrees. The adjustable stair is designed for a maximum loading of 500 kg/m2. BASIC ELEMENTS Top side: SM-STAIR-500, basic element with 6 steps. The upper step aligns with the stage floor. This basic element is connected to the stage by means of a profile that is bolted to the stage with a T-head bolt (M10 x 40 mm) which is placed in the StageDex profile. Bottom side: The SM-STAIR-510 base section. Connects to the stair elements by means of a CCS7 coupler combined with the CCS7 hinge (CCS7-H-FM-90). STEP UNITS To elongate the basic element, extra step units can be mounted. Units range from 1 to 5 steps. Several units can be coupled to reach the maximum allowed height. The extra units are connected using the standard CCS7 coupling system. SM-STAIR-501, 1 STEP BEAM. SM-STAIR-502, 2 STEP BEAM. SM-STAIR-503, 3 STEP BEAM. SM-STAIR-504, 4 STEP BEAM. SM-STAIR-505, 5 STEP BEAM. HANDRAILS Mounting the handrails completes the staircase. The railing can be combined by utilizing three parts: • SM-STAIR-520 is the adjustable basic part, can be coupled, to cover the full height of your stair. • SM-STAIR-521 is the rounded end part. • SM-STAIR-522 is the rectangular end part to which another railing can be coupled. The railing parts can be mounted only on the SM-STAIR-500 and the SM-STAIR-505. The railing is mounted to the main tube using the standard spigot (SM-RAIL-ATT-01), which is bolted to the tube using a M12 x 200 mm bolt.
