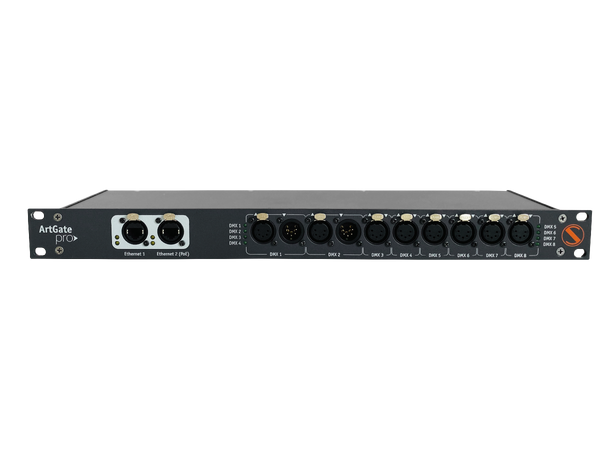

SUNDRAX ArtGate Pro Converter, 4 In/out

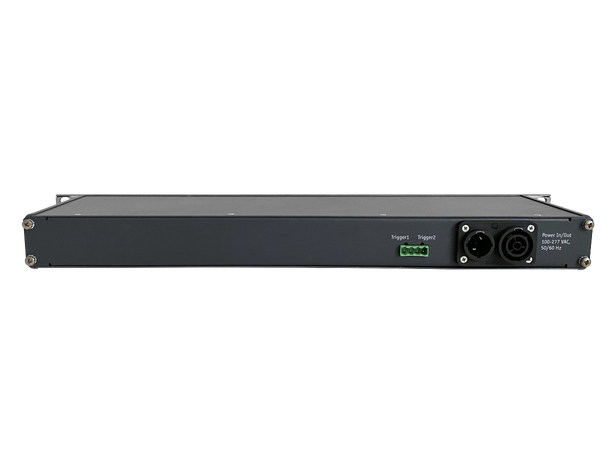

Rack mount bidirectional DMX512-Ethernet converter, splitter, booster, intelligent merger. Supports wide range of network protocols for DMX data transmission: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL. 2 Ethernet ports provide additional switch functionality. PowerCON TRUE1 inlet+outlet combination to daisy chain and trigger inputs to activate preset scenarios.

Various merging modes available: HTP, LTP, Auto, Priority, Backup, Trigger, XFade (see Merging options). Able to merge up to 4 incoming ArtNet/sACN/KiNet/RTTrPL streams in any combination into DMX512 output for perfect show backup. All DMX ports may be used as inputs or outputs. Can be managed by web interface, ArtGate utility, or any standard software supporting ArtNet. Available as 16-port device or with fibre optic link.
