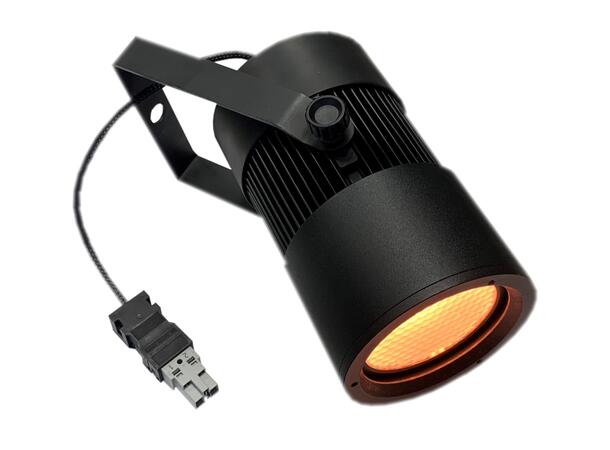

TDE LIGTTECH Moodspot WRGB1465

The Moodspot WRGB1465 Downlight is an Advanced Tunable White Downlight combined with full colour mix RGBW spectrum specially designed for houselights for Theater, auditorium and entertainment applications.
The Moodspot embraces the Black Body Locus tracking WarmDimming and CCT-tuning with perfect whites down to 1400K and dims flicker-free to 0%.
The internal IZI-Link Hybrid LED driver has built-in advanced user modes for seamless switching between Warm-Dimming, Advance Tunable White and RGBW modes.

• Advance Tunable White 1400K~6500K + RGBW
• Pure white tracking the Black Body Locus
• Smooth and flicker-free dimming to 0.0%

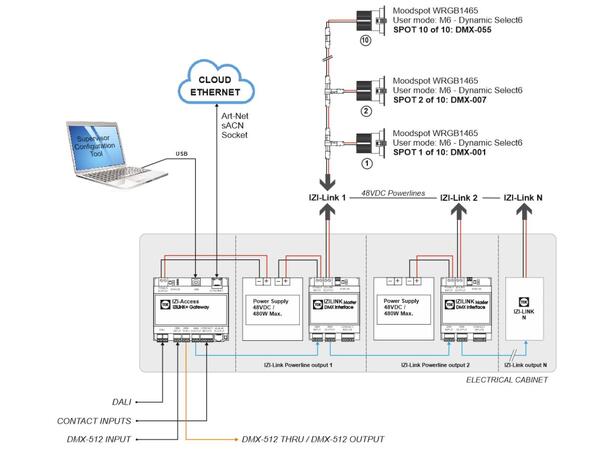

• 48VDC IZI-Link powerline communication
• HD Camera proof

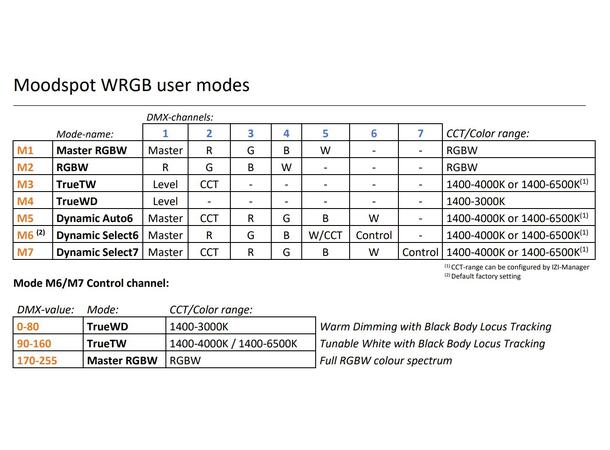

• Selectable WD / TW and WRGB Usermodes
• Technical specifications


Technical specifications

LED

• RGBW Colours mix RGBW tuning mode
• Lumen output 3000 lumen (@ 3000K)
• Colour rendering Ra > 90 / R9 > 80 (CCT @ 3000K)
• Colour variation 3 MacAdam Elipse
• Dimming range Smooth dimming to 0.0%
• User-modes CCT-tuning and Warm dimming

Power

• Current 750mA
• Power consumption 34Watt maximum

Control

• Hybrid dimming technology Flicker-free and HD Camera proof
• PWM-frequency 24kHz dynamic

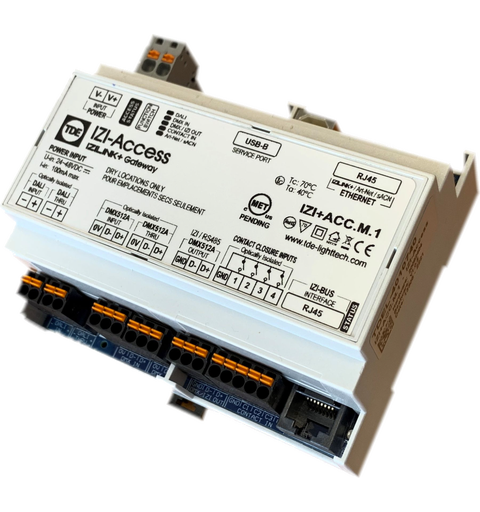

• Control Art-Net / sACN / DMX512 via IZI-Link system

Material

• Material Aluminium + PMMA (Reflector)
• Weight 950 gram
• IP-Rating IP20
• Connection WAGO 770-252 / Winsta MIDI / 2-pole
• Housings Recessed / Bracket / Pendant / Track
• Colours Black / White
• Accessories Snout / Honeycomb / Barndoor / Diffuser plates
