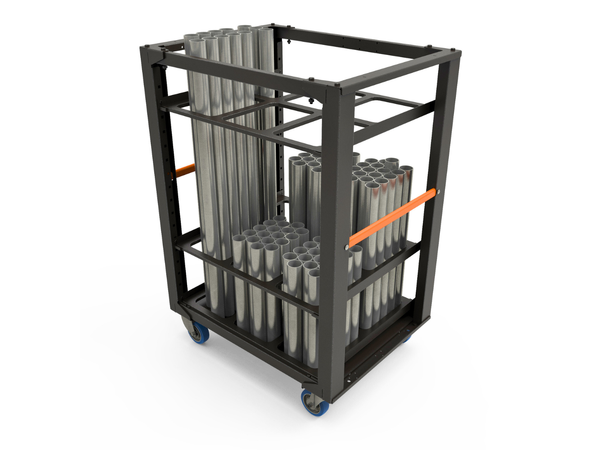

The Stage leg cart offers an organised and efficient solution for storing and transporting stage legs. Instead of keeping stage legs loose or in traditional flightcases with fixed compartments, the Stage leg cart keeps leg sets clearly separated and easily accessible.
Built using proven components from the Admiral Modular Transport System, the cart combines slim-line panels, length profiles and the drawer profile system from the Admiral Storage cart range. This creates a strong and versatile transport solution that can be adapted to suit different stage leg lengths and configurations.
The standard configuration includes two organiser plates, each featuring six compartments. Based on round stage legs with a diameter of 48 mm, the cart can accommodate up to 108 stage legs. The compartmented design helps crews quickly identify and select the correct leg length, reducing setup time and keeping storage areas organised.

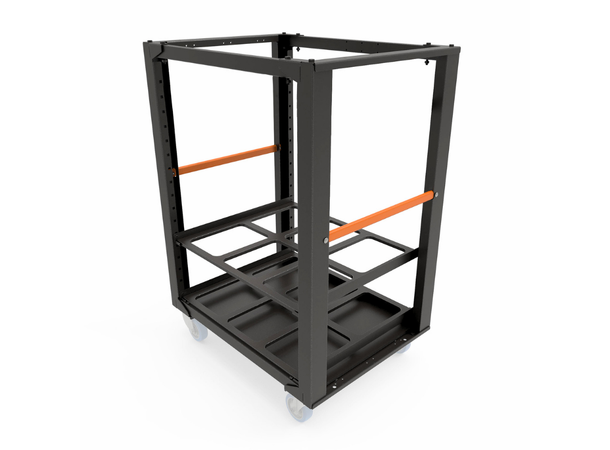

A unique feature of the Stage leg cart is its adjustable support system. The organiser plates can be positioned at different heights using the integrated drawer profiles, allowing the cart to be configured for short, medium or long stage legs. An additional organiser plate can be added to provide extra guidance and support for longer legs, creating a highly flexible storage solution for a wide range of stage systems.
Consists of:
1 × ZEM2SV10 – Bolt set transport carts
2 × WAM2R06 – Drawer profile MK2 set of 2
1 × WAM2SA68 – Stage leg cart bottom plate
2 × WAM2SA69 – Stage leg cart organiser plate
1 × WALPSL080 – Length profiles L80, set of 4
2 × WAM2P72 – Slim-line panel H112 × W60
