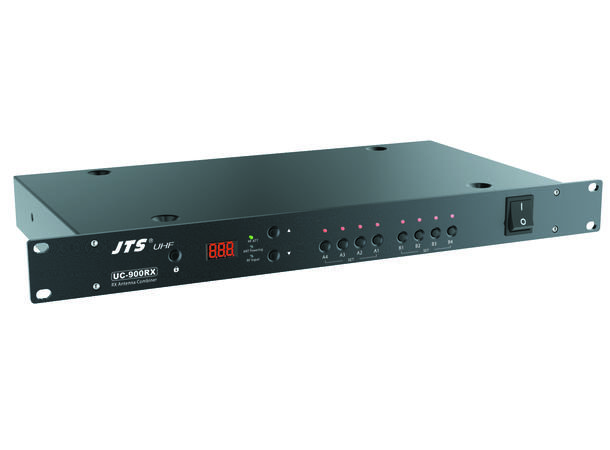

JTS UC-900RX Antenne combiner

The UC-900RX is designed for receivers. It provides 2 x 4 antenna inputs to minimize RF dead zone on a stage or any venue. It also feature RF input ON/OFF, input attenuation from -31 to 0 dB and input signal ON/OFF control. The UC-900RX makes RF engineers’ job easy.

• Frequency Range:  470~970  Mhz
• Full System Gain: 8dB(±3dB)
• Input Impedance: 50 ohm
• RF Input Power: 0dBm(Max)@Attenuation=0dB
• RF Input Attenuation: -31~0dB (Step:1dB)

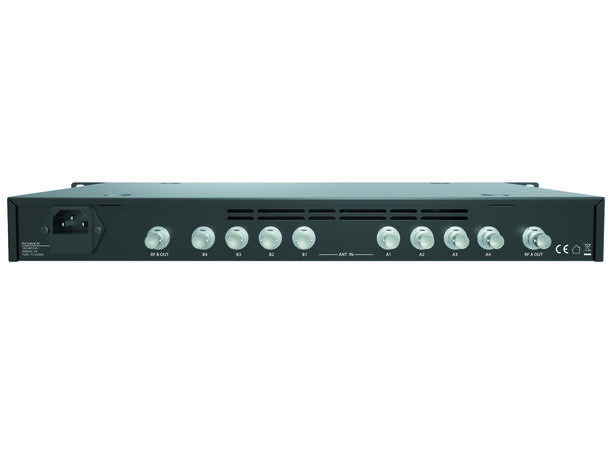

• Input/Output Connectors: BNC(F):Input x8 / Output x2
• Functions: 1. Antenna Booster Powering ON/OFF Control, 2. RF Input Attenuation Control, 3. RF Signal ON/OFF  Control
• Antenna Booster Power: 12V/200mA*8
• Power Supply: 100~240VAC;MAX2A 50/60Hz
• Dimensions: 480mm(W)*45mm(H)*260mm(D)
