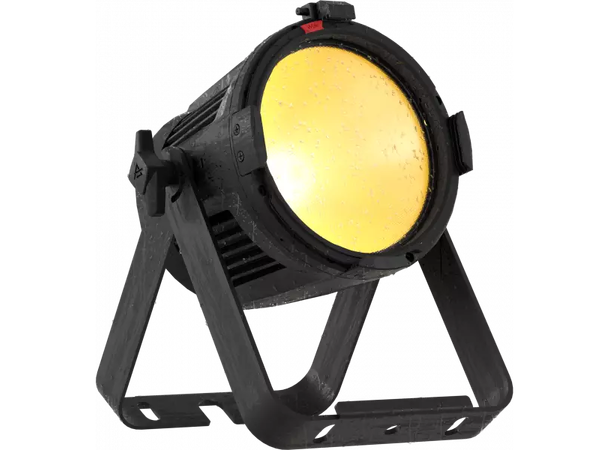

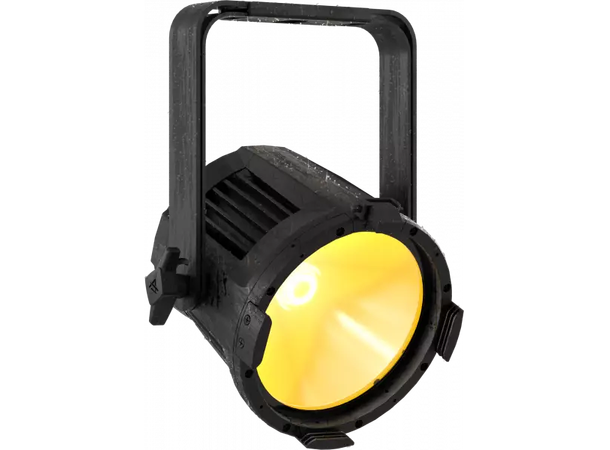

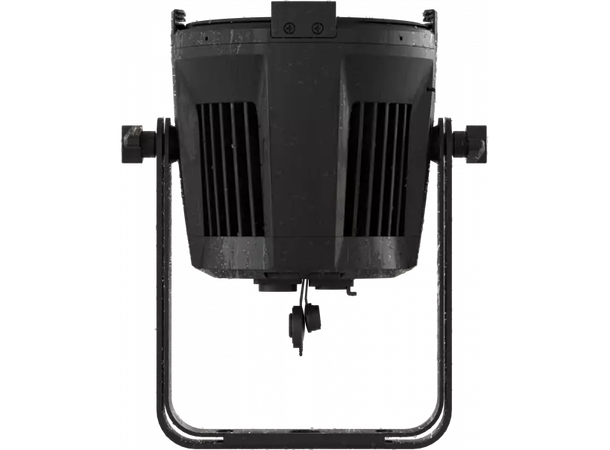

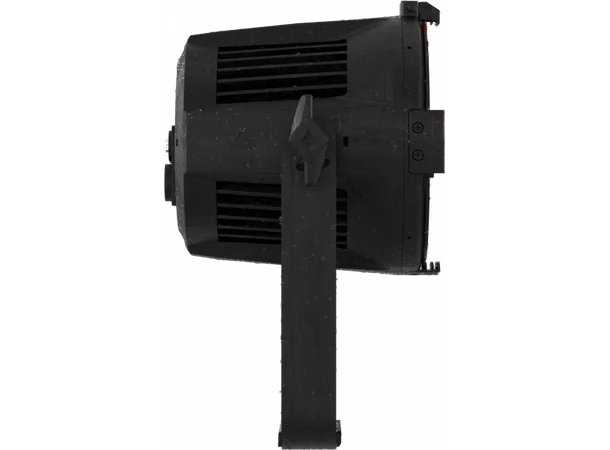

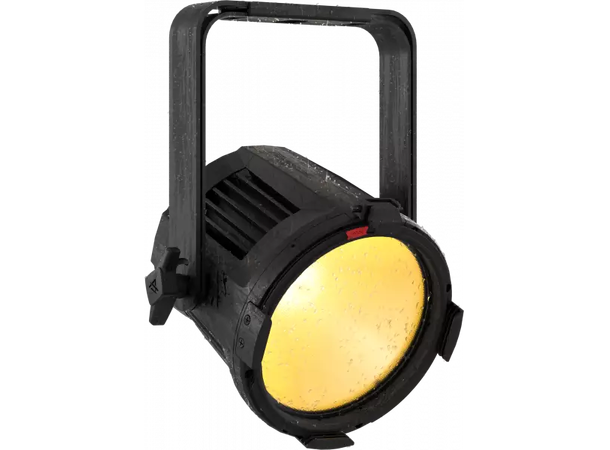

EclPar IPMFC
EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control.
Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.
The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas silent operations are required.
The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.
Features:100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
Flex lens system: 15° on-board - 30° and 60° optional
IP65 for exterior application, fan free
LIGHT SOURCE
- Source: 100W COB RGB+WW LED
- Luminous flux: (15°) 3'324 lm; (30°) 3'453lm @full
- Lux: (15°) 1'772 lx; (30°) 387lx @5 m full
- CRI: 93,7 @3'200K; 91,1 @5'600K
- R9: 89 @3'200K; 88 @5'600K
- TLCI: 77 @3'200K; 86 @5'600K
- TM30 Rf: 90 @3'200K; 89 @5'600K
- TM30 Rg: 109 @3'200K; 108 @5'600K
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: (on-board) 15° - (opt) 30°, 60°
- Field angle: (on-board) 26°
- Lens diameter: 172mm
- Lens type: parabolic reflector in combination with HD fresnel lens
- Additional optics: (opt) 30°, 60°
- Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
- Colour mixing: RGB + Warm White
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.700 K ~ 10.000K
- Macros: Gels library on-board
DYNAMIC EFFECTS
- Static mode: selection of static dimmer, colors and color temperature
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Body: sturdy die-cast aluminium body
- Body colour: black
- Other: Front mount holder for accessories as barn door, filter frame
CONTROL
- Protocols: DMX512, RDM, CRMX
- DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 120W
- Output (at 230V): 24 units on a single power line
- Power factor: > 0,94
PHYSICAL
- IP rating: 65 for temporary outdoor application, not for fixed installations
- Cooling: passive cooling and fan-free
- Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

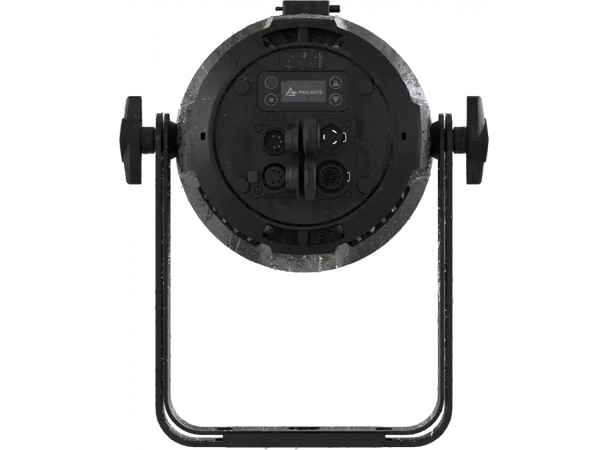

- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 262x327x213mm
- Weight: 4,1kg
(*)
- NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT- 1 x ECLPARIPMFC
- 1 x EPIPMLENS15
- 1 x ECLPARTPG
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- 1 x User Manual
