IP65 hybrid moving head, with 260W white phosphor Laser source and zoom 0.6° - 52°

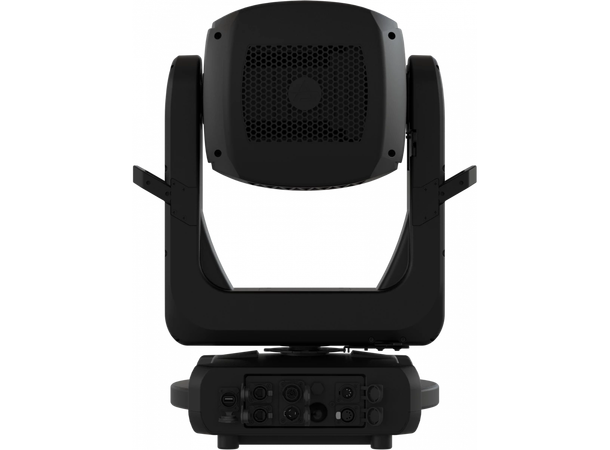

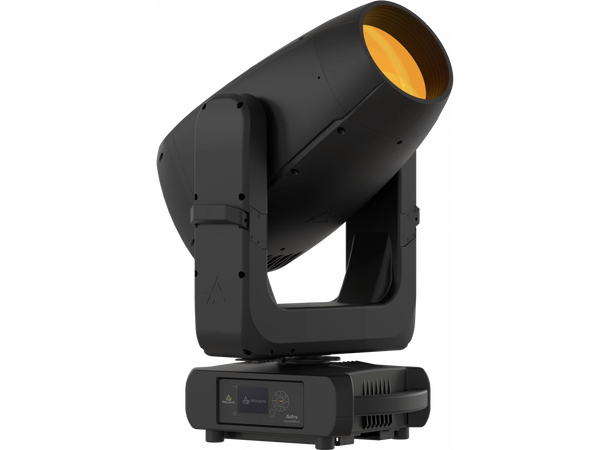

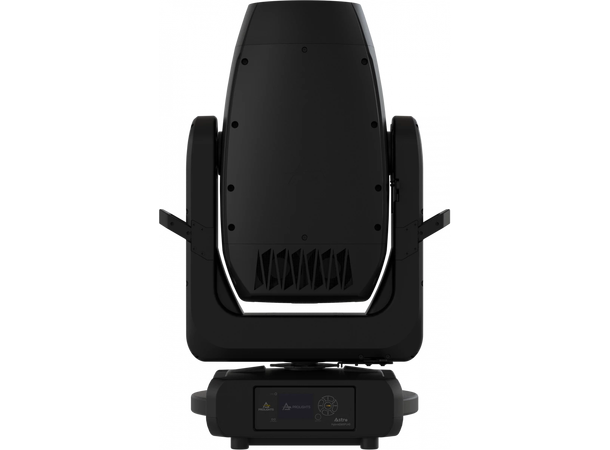

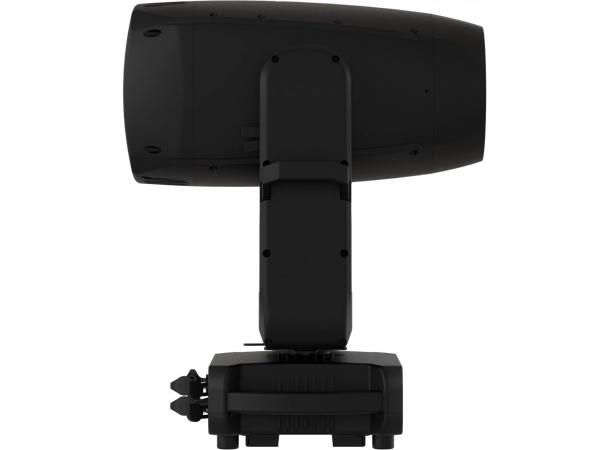

The Astra Hybrid260IP is an advanced hybrid moving luminaire equipped with a powerful 260W Phosphor Laser source, designed to excel in both indoor and outdoor environments thanks to its IP65-rated construction.
A groundbreaking 165?mm front lens channels its laser energy into a sharply focused 0.6° beam, achieving an extraordinary 420,000 lux at 20 meters - far exceeding the output of traditional discharge 480W hybrids. With a 100× zoom range spanning from 0.6° to 52°, this fixture delivers everything from tight aerial beams to expansive stage spot, offering unmatched versatility for any show or event.
Beyond its formidable beam and zoom capabilities, the Astra Hybrid260IP boasts infinite Pan and Tilt rotation for fluid, dynamic movement effects and a comprehensive color system that includes linear CMY and CTO mixing plus 27 color filters on dedicated wheels. Add 12 rotating gobos, 29 static gobos, 8 prisms on overlapping wheels, and two frost filters (soft and heavy) into the mix, and the creative possibilities become virtually endless - whether illuminating mid-air or crafting intricate projected textures.
Despite its powerful performance and extensive feature set, the fixture remains surprisingly lightweight at just 34?kg, thanks to its durable magnesium alloy housing, while pull-out handles integrated into the arm simplify handling and rigging. This rugged design thrives in the challenging conditions of large arenas, outdoor festivals, touring stages, and permanent installations alike, positioning the Astra Hybrid260IP as a true all-weather champion that professional rental houses and production teams can rely on for robust, high-impact lighting solutions.
IP65 hybrid moving light equipped with a 260W white phosphor Laser source
Linear zoom ranging from 0.6° to 52°
Pan&Tilt infinity rotation 360°, CMY and CTO, 27 color filters, 12 rotating and 29 fix gobos, 8 prisms, 2 frost
Technical specifications
LIGHT SOURCE
Source: 260W Phosphor Laser source
CCT: 7'000K
Lux: 417'219lx @20 m full
Source life expectancy: > 12.000 h
OPTICS
Zoom range: 0,6° - 52,7° motorised linear zoom
Lens diameter: 165mm / 6.5''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised
COLOUR SYSTEM
Colour mixing: linear CMY
CCT: linear CTO correction 2.700 K ~ 7.000 K
Colour wheel: open + 27 colour filters on two colour wheels
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Rotating gobos: 12 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 8,4 mm - image: 5 mm - thickness: 0,5 mm
Fixed gobos: 29 fixed gobos + open
FX generator: prisms overlap for spectacular aerial effects
Circular prism: (prism disk 1) 8f and 6f - (prism disk 2) 16f and 6f with bi-directional rotation, indexing, interchangeable
Linear prism: (prism disk 1) 6f and 4f - (prism disk 2) 6f and 4f with bi-directional rotation, indexing, interchangeable
Rotating prism disk: 2 indipendent disks with 4 prisms each
Frost: dual frost filter, soft-edge and heavy (one interchangeable)
BODY
Pan range: 540° with continuously adjustable, bidirectional rotation
Tilt range: 270° with continuously adjustable, bidirectional rotation
Pan/Tilt resolution: bit 16-bit
Feedback: automatic repositioning after accidental movement
Body: weatherproof IP65 construction with die-cast magnesium alloy
Body colour: black
CONTROL
Protocols: DMX512, RDM, ArtNet, sACN, CRMX
DMX channels: 33 / 37channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1-30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 430W
Standby power: 90 W
Output (at 230V): 6 units on a single power line
Power factor: > 0,96
PHYSICAL
IP rating: 65 for temporary outdoor use (*)
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
Data connection: IP65 Seetronic Ethernet IP in/out connectors
Power connection: Seetronic powerCON TRUE IP65 IN
Dimensions (WxHxD): 435x742x266mm / 17.13''x29.21''x10.47''
Weight: 34,5kg / 76.06lbs
(*)
NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
BOX CONTENT
