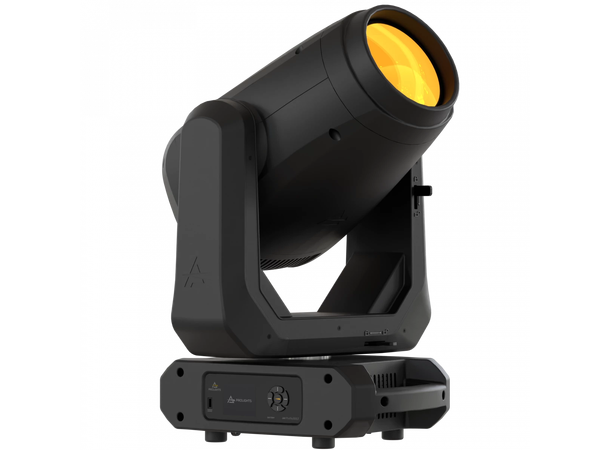

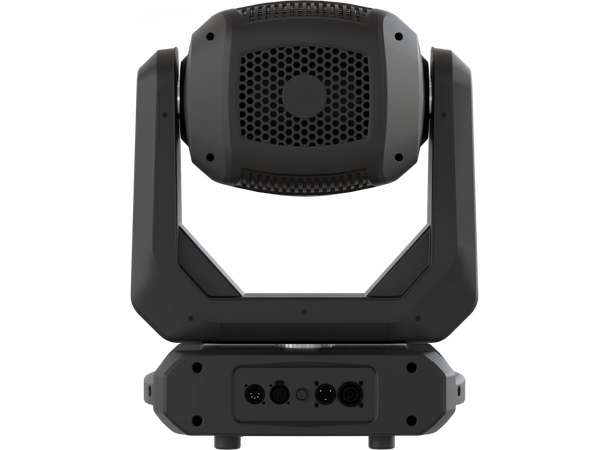

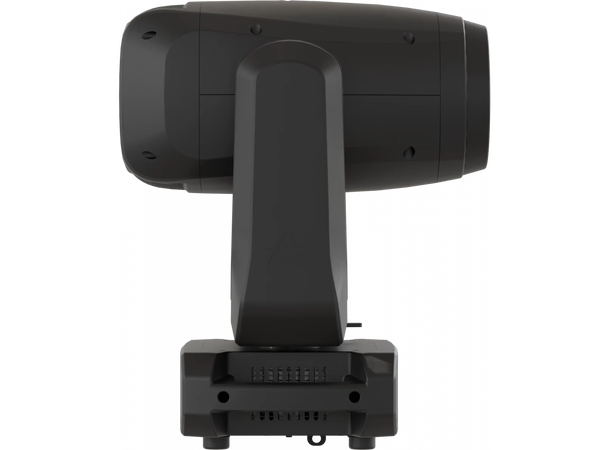

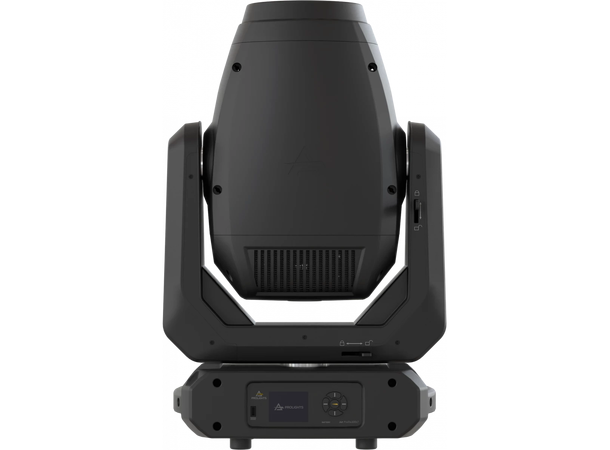

300W LT Profile Moving head, with 4° - 44° zoom and CMY
The Jet Profile300LT is a compact, quiet, and versatile moving LED profile designed for small to medium stages in theater, television, and live performances. Featuring a 300W white LED source and a long-throw optical system with a large 140mm front lens, it delivers a robust 12.000 lumen output.
Despite its super-compact design, it maintains high performance. The motorized zoom offers a range of 4°-44°, making it suitable for aerial effects and long-distance throws key light.
The Jet Profile300LT offers precise beam control with four framing shutters, each with individual plane rotation and full curtain effect capability. Additional features include a linear CMY system, three half-color wheels, a rotating gobo wheel with seven images, animation wheels, soft frost, and a circular prism.
300W White LED source , 12.000 fixture lumen output
Long throw 4°-44 zoom
CMY Color mixing, 4 framing shutters, animation, gobo wheel, soft frost and circular prism
Technical specifications
LIGHT SOURCE
Source: 300W high-power white LED
CCT: 6.500K
Luminous flux: (3,9°) 8'313 lm - (44,1°) 12'065 lm
Lux: (3,9°) 88'597 lx (44,1°) 1'333lx @5 m
Source life expectancy: > 30.000 h
OPTICS
Zoom range: 3,9° - 44,1° motorised linear zoom
Lens diameter: 140mm / 5.51''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised
COLOUR SYSTEM
Colour mixing: CMY colour system on 3 gradually fading colour wheels
CCT: on wheel 3.200 K, 4.500 K and 5.600K
Colour wheel: 9 dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: outer diameter: 20 mm; image diameter: 16 mm; thick: up to 3 mm
FX generator: prisms overlap for spectacular aerial effects
Circular prism: 4f with bi-directional rotation, indexing, interchangeable
Linear prism: 4f with bi-directional rotation, indexing, interchangeable
Frost: linear 0 - 100% light frost filter, interchangeable
BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan range: 540°
Tilt range: 265°
Pan/Tilt resolution: bit 16-bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: black
CONTROL
Protocols: DMX512, RDM, CRMX
DMX channels: (STD) 37 / (EXT) 42channel
Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 491W
Standby power: 85 W
Output (at 230V): 7 units on a single power line
Power factor: > 0,96
PHYSICAL
IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Neutrik XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
Dimensions (WxHxD): 403x630x250mm / 15.87''x24.8''x9.84''
Weight: 21,4kg / 47.18lbs
CERTIFICATIONS / APPROVALS
BOX CONTENT
