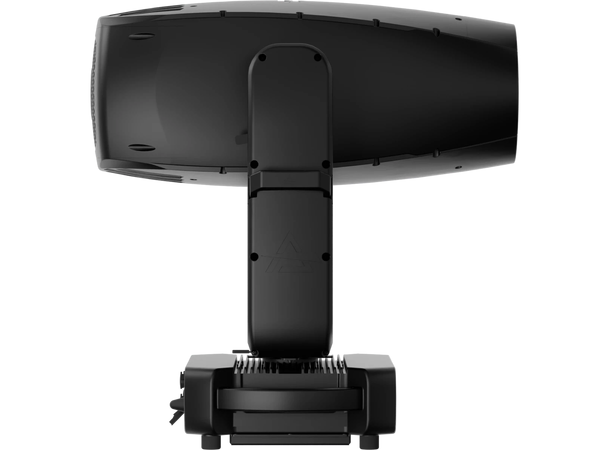

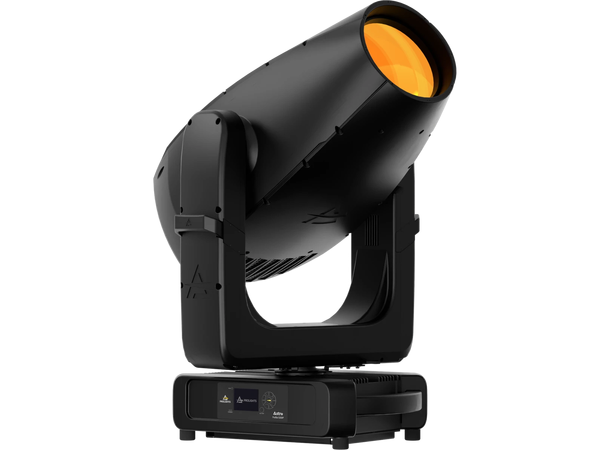

The Astra Profile1200IP is an advanced, large format IP65 LED moving profile, engineered to be bright and offer robust performance under any indoor and outdoor conditions.
This unit boasts a stunning 51.000 lumen (fixture output with goniometer), ensuring exceptional brightness.
The large 185mm front lens projects a full and consistent beam of light, adjustable from 5° to 55° via its motorized zoom system and precision internal optics being an ideal for use as key light or via automated tracking systems.
The Astra Profile1200IP’s comprehensive features include linear CMY+CTO color mixing and a dedicated color wheel, dual rotating gobo wheels and a 4-layer framing shutter system on individual planes and capable of producing a curtain effect. Additionally the effect section includes an animation wheel, dual frost filters, dual prism, and a motorized iris, enhancing its flexibility and creative potential.
For seamless integration and user convenience, the Astra Profile1200IP is equipped with CRMX wireless connectivity and supports multiple ethernet protocols, making it a versatile and
user friendly choice for various settings.
MAIN FEATURES
IP65 1200W White LED source 7000K, 51.000 fixture lumen output (goniometer)
5°-55° zoom
CMY+CTO Color mixing, one color wheel, 4 framing shutters, 2 rotating gobo wheels, 1 animation wheel, 2 frost, 2 prisms, iris"
TECHNICAL SPESIFICATION
LIGHT SOURCE
Source: 1’400W White LED (driven @1’200W)
CCT: 7.000K
Luminous flux: (5,4°) 22’589 - (53,5°) 52’250
Lux: (5,4°) 121’954 lx (53,5°) 3’954lx @5 m
CRI: > 70 (CCT 5.600K and CRI > 90 with filter on color wheel)
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
Zoom range: 5,4° - 53,5° motorised linear zoom
Lens diameter: 185mm / 7.28’’
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised
COLOUR SYSTEM
Colour mixing: linear CMY
CCT: linear CTO correction 2.700 K ~ 7.000 K
Colour wheel: open + 5,600K high CRI filter + 5 colour filters
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
Gobo size: preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm
Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
Gobo size: preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm
FX generator: prisms overlap for spectacular aerial effects
Circular prism: 4f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: dual frost filter, soft-edge and heavy (one interchangeable)
Iris: 5 - 100% motorised iris
BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan range: 540°
Tilt range: 270°
Pan/Tilt resolution: bit 8 / 16-bit
Feedback: automatic repositioning after accidental movement
Body: weatherproof IP65 construction
Body colour: black
CONTROL
Protocols: DMX512, RDM, ArtNet, sACN, CRMX
DMX channels: 45channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
Other: Ethernet pass through in case of failure
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 1843W
Output (at 230V): 1 units on a single power line
Power factor: > 0,96
PHYSICAL
IP rating: 65 (*)
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
Data connection: IP65 Art-Net RJ45 IN/OUT
Power connection: Seetronic powerCON TRUE IP65 IN
Dimensions (WxHxD): 490x877x310mm / 19.29’’x34.53’’x12.2’’
Weight: 55kg / 121.25lbs
(*) NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
