NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

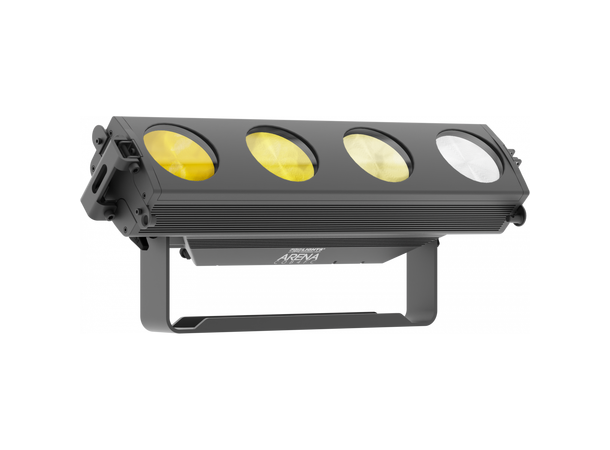

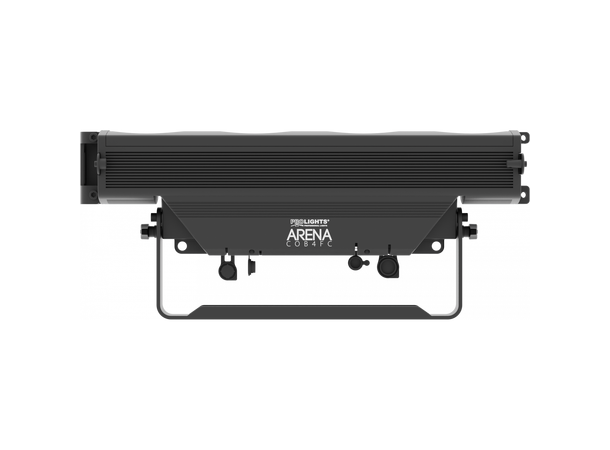

ARENACOB4 FC is a proper, full color replacement for an “old school” 4 cell Blinder.
Each of the ARENACOB4 FC’s LED Pods deliver a consistent, powerful punch with individual control of each cell. The clever rigging system allows the creative freedom to use the fixture as a building block offering virtually limitless possibilities.
With an IP65 housing, magnetic lens options, individual control of each LED cell, clever rigging system and cell spacing that matches a standard blinder the ARENACOB4 is not only powerful but also unbelievably flexible.
Features:96x3,5W RGBW COB pods
Magnetic lens options 40°, 24°(inc)

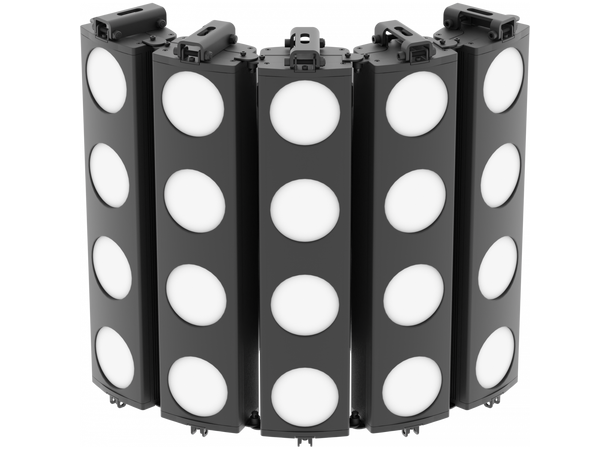

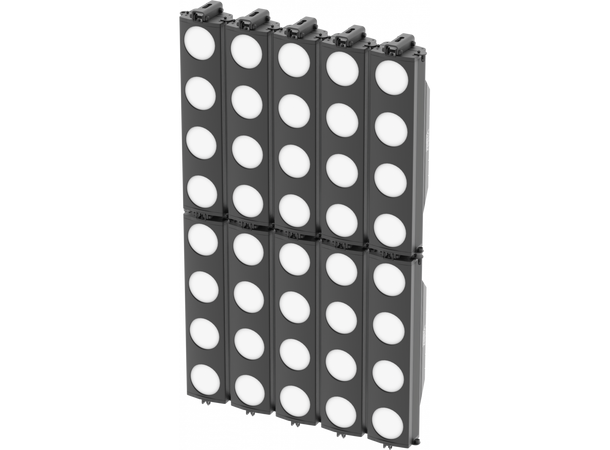

Modular rigging system
Same cell spacing and lens diameter as a traditional blinder
IP65 rating with noiseless passive cooling
Inbuilt effects generator
LIGHT SOURCESource:
96x3,5
W
RGBW LEDs
Luminous Flux:
6230
lm
Lux:
(24°) 3167
lux
@3m Full
Source Life Expectancy:
>50.000 h
OPTICSBeam Angle:
(inc) 24° - (opt) 40
°
Field Angle:
36
°
Pixel pitch:
150
mm
Lens Diameter:
100
mm
Lens Type:
Dichroic parabolic reflector in combination with HD fresnel lens
Additional Optics:
40°(opt), 32° without magnetic lens
Other:

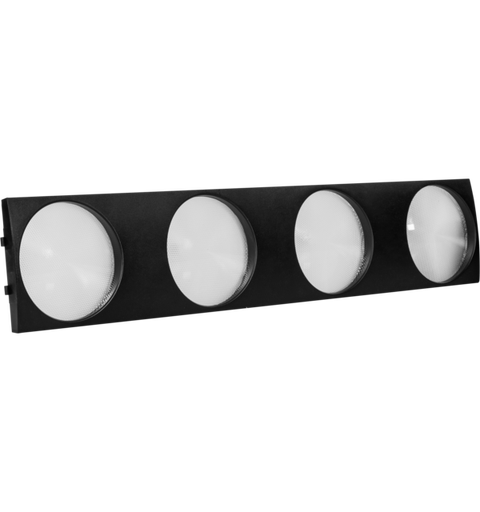

Magnetic replacement of front lens
DYNAMIC EFFECTSPixel Patterns:
Preprogrammed dynamic and static patterns
FX Generator:
Adjustable foreground/background color, index, speed, direction
Static Color Mode:
Selection of static color
Manual Color Mode:
Manual adjustment of color
Auto Mode:
Built-in programs with execution speed adjustment
Special Features:
Halo DWE dimming and amber-shift simulation
CONTROLProtocols:
DMX512, RDM
Dmx Channels:
HALO 1/4ch - STD 4/6/15ch - EXT16/19/25
ch
Pixel Control:
Pixel2Pixel control
RDM:
RDM ready for fixture remote monitor and settings
Display:
Black OLED touch display
Firmware Upgrade:
Yes, via USB-DMX interface (UPBOX1) not included
Master/Slave:
for synchronized operation of more units linked in a chain
ELECTRONICSDimmer:
Linear 0~100% electronic dimmer
Dimmer Curves:
4
Different dimming curves available
Strobe/Shutter:
1-28
Hz, electronic
Battery Backup:
Battery backup for user operation without connecting to the main power
Operating Temperature:
-20/45°
Flicker:
Flicker free operation
ELECTRICALPower Supply:
100-240V \u2013 50/60Hz
Power Consumption (at 230V):
229
W
Power Consumption (at 120V):
230
W
Power Output (at 230V):
15
units on a single power line
Power Output (at 120V):
7
units on a single power line

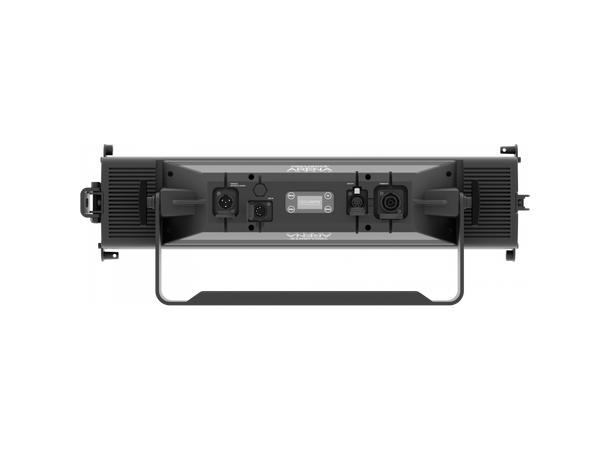

PHYSICALSignal Connection:
5p IP in/out
Power Connection:
Seetronic Powerkon IP65 in/out
IP:
65
Protective vent to prevent condensation, dust, compensate pressure
Cooling:
Natural cooling of the peculiar chassis and to absence of fans

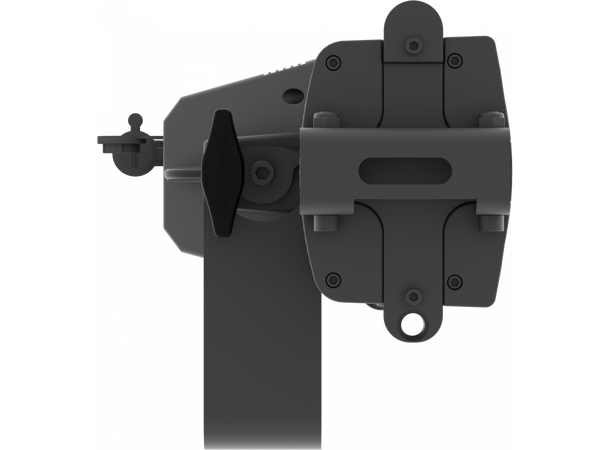

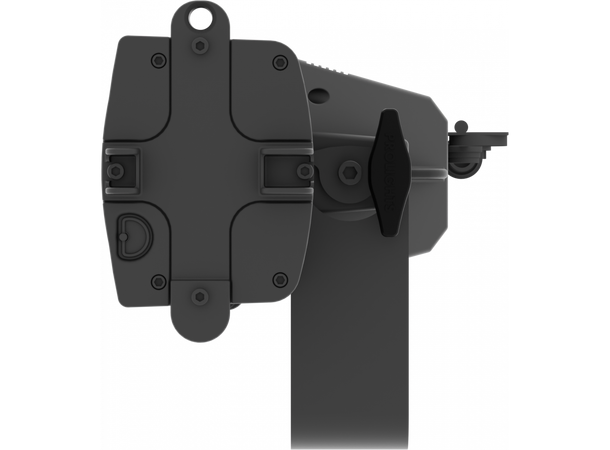

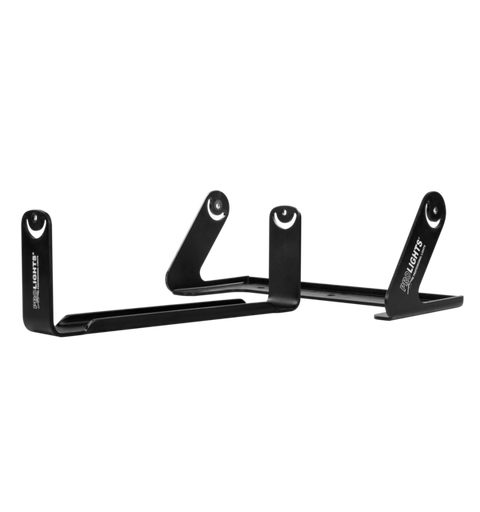

Suspension And Fixing:
Hanging bracket suitable for safe hanging and for floor positioning
Dimensions (WxHxD):
619x167x264
mm
Weight:
7,9
Kg
