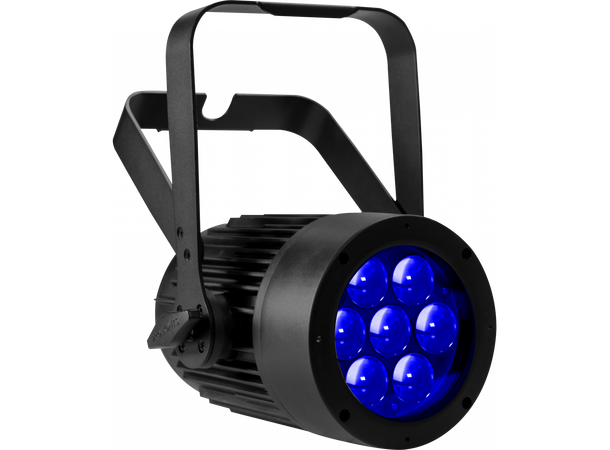

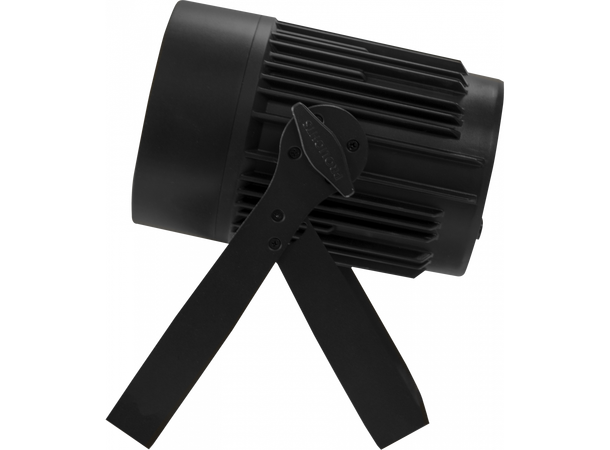

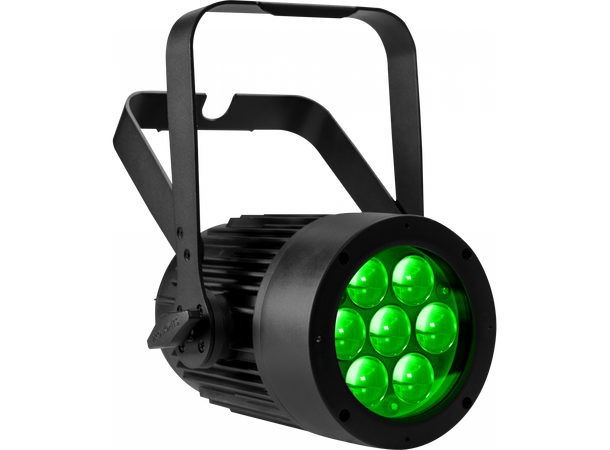

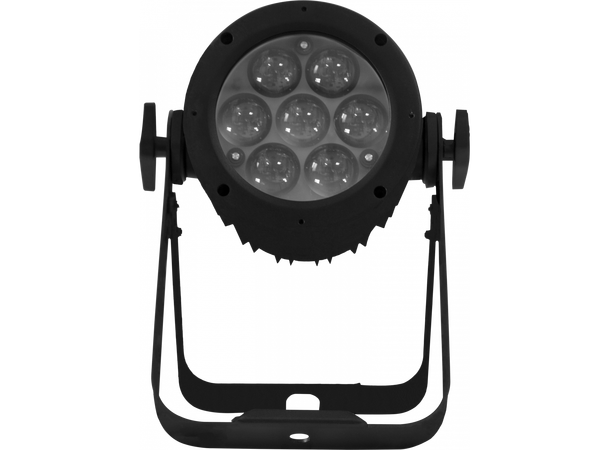

MINIVERSAPAR is a compact indoor LED zoom par designed for rental-company with a multi-purpose concept combining high brightness, wide zoom range and advanced color mixing in one unique fixture. MINIVERSAPAR is equipped with 10°-40° unrivaled zoom range, high efficiency, perfect chromatic uniformity, HD dimming technology and very silent operation.
Features:7x10W RGBW FullColor LED
Wide zoom range from 10-40 (1:4 zoom)
Silent operation for Studio application
LIGHT SOURCE
- Source: 7x10W RGBW LEDs
- Luminous Flux: (10°) 1012lm (40°) 1335lm
- Lux: (10°) 4415 lux, (40°) 378lux @3m
- Source Life Expectancy: >50.000 h
OPTICS
- Zoom: 10 °- 40° Motorised linear zoom
- Lens Type: Honey-Comb gapless plano convex optics
COLOR SYSTEM
- Color Mixing: RGBW/FC
- White Presets: 2800-10'000K
- Color Wheel: Virtual color wheel with presets
- Macros: Several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
- Static Color Mode: Selection of static color
- Manual Color Mode: Manual adjustment of color
- Auto Mode: Built-in programs with execution speed adjustment
- Sound Mode: Music activation through internal microphone, sensitivity contr.
BODY
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black
CONTROL
- Protocols: DMX512
- DMX Channels: 5/7/10ch
- Display: 4-Chars display
- Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
- Dimmer: Linear 0~100% electronic dimmer
- Dimmer Curves: Different dimming curves available
- Strobe/Shutter: 1/28 Hz, electronic
- Operating Temperature: -10° ~ +40°
- Flicker: Flicker free operation
ELECTRICAL
- Power Supply: 100-240V \u2013 50/60Hz
- Power Consumption (at 230V): 69,2W
- Power Consumption (at 120V): 70W
- Output (at 230V): 54 units on a single power line
- Output (at 120V): 11 units on a single power line
PHYSICAL
- Cooling: Forced air with low noise fan
- USB: USB port for USB Wi-Fi receiver (optional)

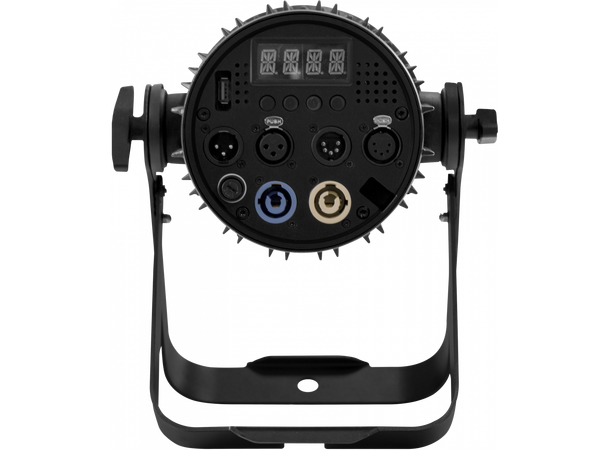

- Signal Connection: 3p+5p in/out
- Power Connection: PowerCON in
- IP: 30 Protective vent to prevent condensation, dust, compensate pressure
- Dimensions (WxHxD): 235x156x301mm
- Weight: 3,7kg
