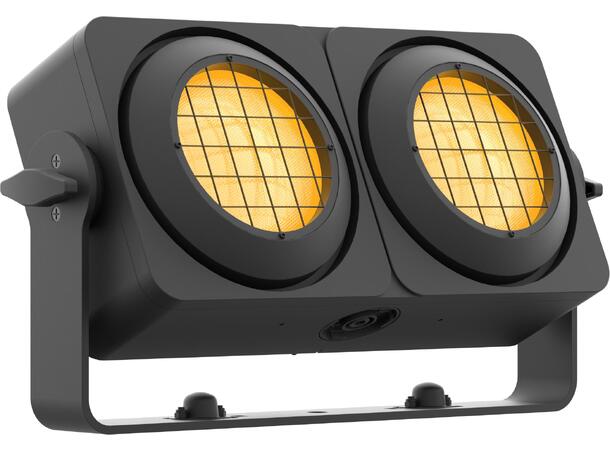

Sunrise 2IP is an IP rated and convection cooled modular 2x1 LED Blinder, designed to be a perfect touring solution to replace classic halogen fixtures of any sizes.
The fixture is designed with on-board, fast-locking mechanism in order to combine multiple units together and using them as brick, turning the Sunrise 2IP into a 4x1 or a 2x2 blinder easily. The Sunrise 2IP is equipped with 2x75 W COB Warm White LEDs pixel controlled and its optical system is capable to output the same performance and beam angle of the fluorescent bulbs, including dimmer ramp with red-shift.
Features:
2x75W Warm White LED with Amber backlight for tungsten simulation

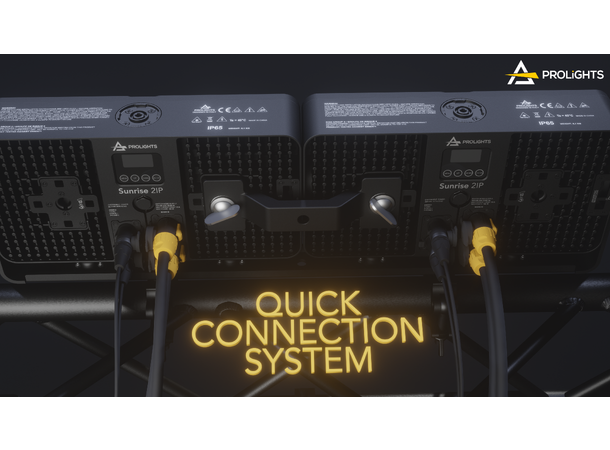

Modular fast-locking assembly to combine multiple units together
IP rated and convection cooled
LIGHT SOURCE
Source: 2 x 8 W Amber + 2 x 75W Warm White LEDs
CCT: 2.700K
Luminous flux: 10'088lm @full
Lux: 1'076lx @3 m full
Lux: 387lx @5 m full
CRI: > 93
TLCI: > 91
TM30 Rf: > 91
TM30 Rg: > 97
Source life expectancy: > 70.000 h
OPTICS
Beam angle: 60°
Field angle: 100°
Lens type: parabolic reflector
DYNAMIC EFFECTS
Static colour mode: selection of static dimmer
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
Special features: tungsten emulation activation
BODY
Body: sturdy die-cast aluminium body
Body colour: RAL 9004
Other: on board mechanics for modular assembly of multiple fixtures
CONTROL
Protocols: DMX512, RDM
DMX channels: 1 / 2 / 6 / 12channel
Pixel control: pixel2pixel control
RDM: RDM ready for remote monitoring and settings

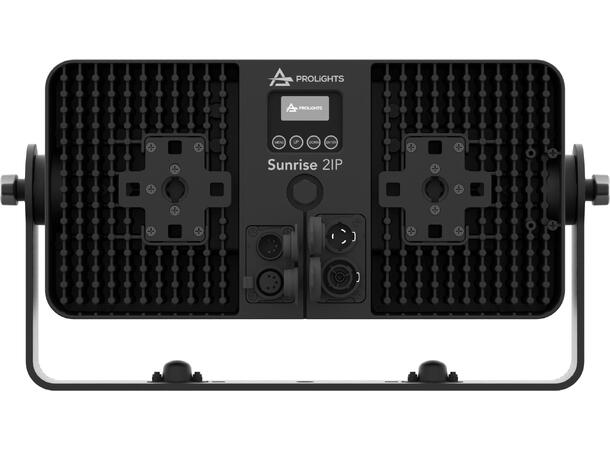

Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain
Other: 16bit control of dimmer
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 ~ 30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 160W
Output (at 230V): 16 units on a single power line
Power factor: > 0,94
PHYSICAL

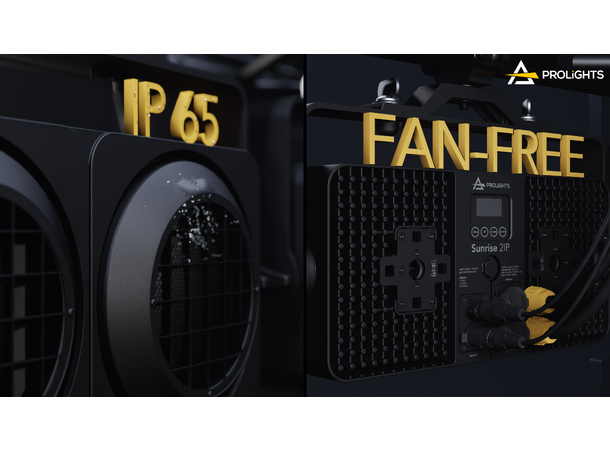

Cooling: passive cooling and fan-free
Suspension and fixing: bracket for truss rigging and hardware for connection of more units
Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
IP rating: 65 for temporary outdoor application, not for fixed installation
IK rating: 08
Dimensions (WxHxD): 432x230x102mm
Weight: 7,6kg
BOX CONTENT
1 x SUNRISE2IP
1 x 1,5 meters power cable (SCHUKO plug - SEETRONIC IP65 power connector)

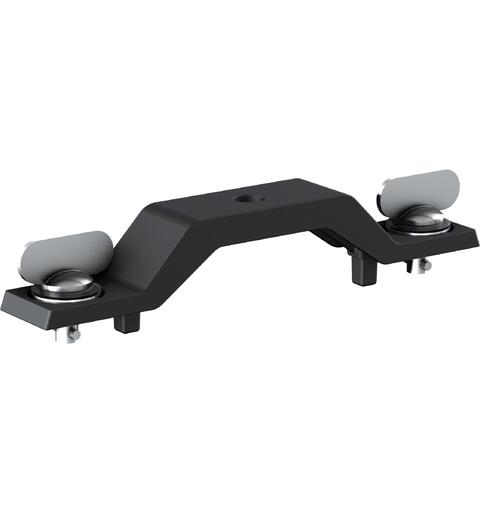

1 x SR2IPOS
User Manual
