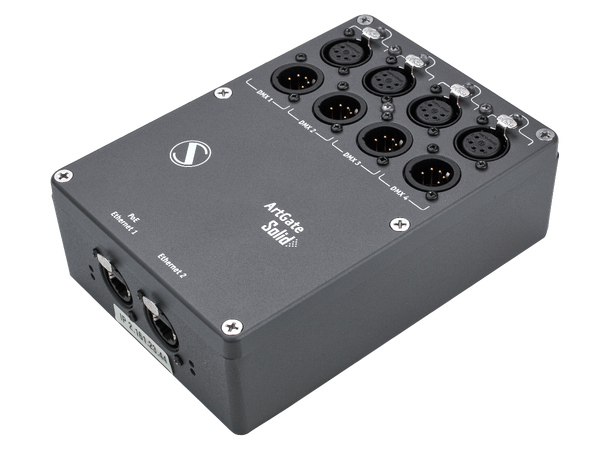

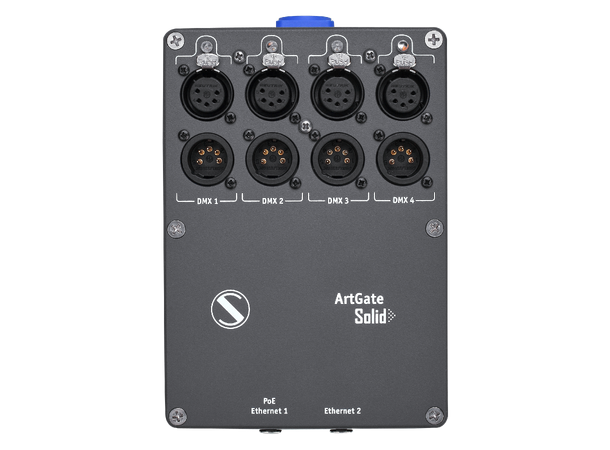

Bidirectional DMX512-Ethernet converter, splitter, booster, intelligent merger in thick metal case (IP44). Supports wide range of network protocols for DMX data transmission: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL.
Various merging modes available: HTP, LTP, Auto, Priority, Backup, Trigger, XFade (see Merging options). Able to merge up to 4 incoming ArtNet/sACN/KiNet/RTTrPL streams in any combination into DMX512 output for perfect show backup. All DMX ports may be used as inputs or outputs. Can be managed by web interface, ArtGate utility, or any standard software supporting ArtNet. Available as IP65 waterproof version for outdoor installations.
- Solid metal case (IP44)
- Up to 4 DMX512 ports (XLR5)
- 2 Ethernet ports (EtherCON)
- PoE support
- Maximum surge protection – power supply optimized for voltage from 100 to 315 V
- Full galvanic isolation of all ports
- Easy installation and programming
- Simple user-friendly web interface
- Configurable DMX port direction
- Configurable parameters of DMX signal
- Support network protocols: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL
- Variable merging options: HTP, LTP, Auto, Priority, Backup, Trigger, XFade. Merged data may be outputted to physical DMX ports, and/or looped back to Ethernet as new network universe
- Full RDM E1.20 support (controller/responder)
- Static scenes (presets) stored in non-volatile memory
- Ability to work as standalone splitter/merger
- Minimum loading time, fastest recovery after short power failure
- Master IP that never gets lost
