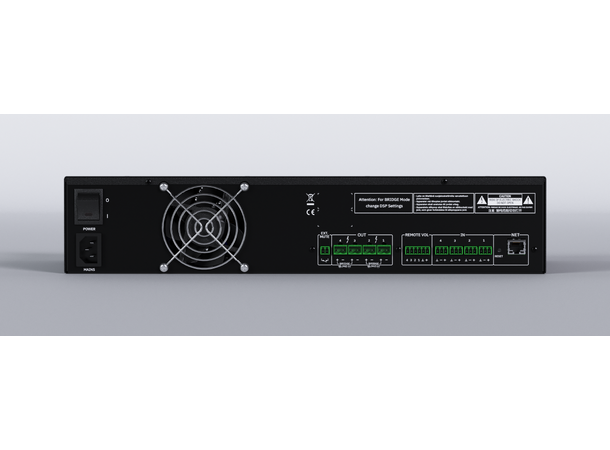

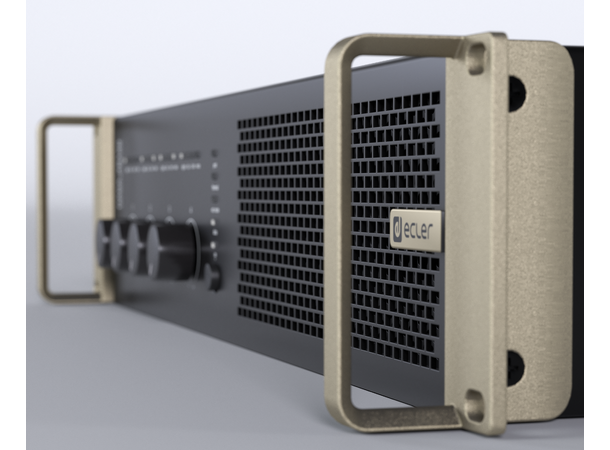

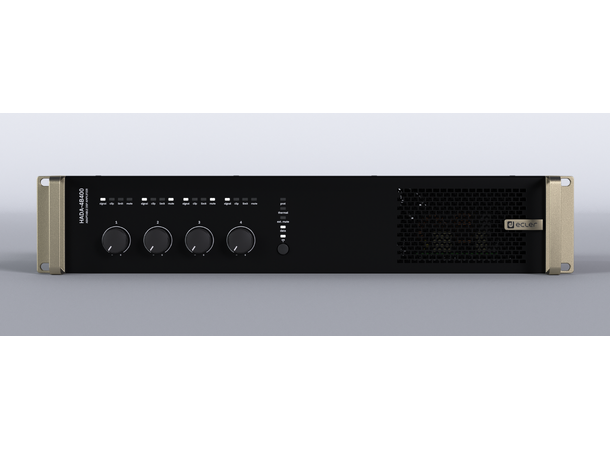

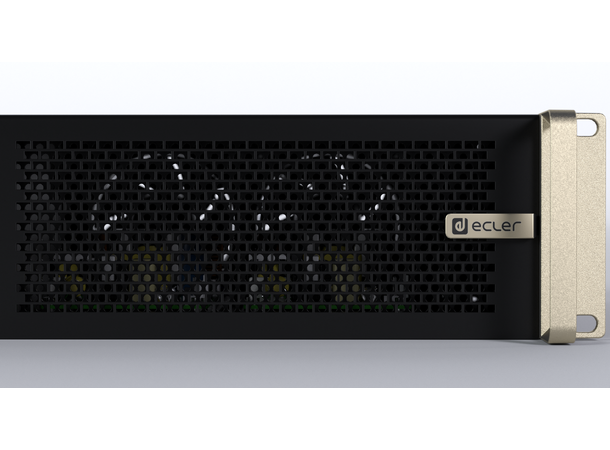

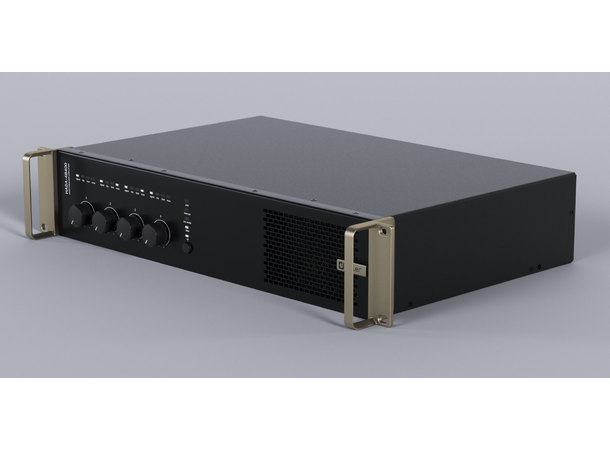

HADA-4B400
4x400W digital amplifier supporting low and high impedance loads, internal DSP configurable via HADA DSP Manager software.
Main features
- 4 x 400W outputs @ 4ohms
- 2 x 800W @ HiZ (100/70V) in bridge mode
- 4 analogue inputs on Euroblock connectors
- 4 GPI for remote volume control
- 1 External Mute
- Internal matrix mixer and signal processing
- HADA DSP Manager software
- Third party control via TCP/IP
Technical specifications
- Output channels: 4
- Output connection: 2-pin Euroblock
- Input channels: 4 analogue
- Input config: Digital matrix 4x4
- Max output @8 ohm: 400W
- @4 ohm: 400W
- @2.7 ohm: 300W
- @2 ohm: 225W
- @4 ohm bridge: 700W
- @8 ohm bridge: 800W
- @100V bridge: 800W
- @70V bridge: 800W
- Voltage gain: 31-38 dBV
- Input sensitivity: -12 to 12dBV
- Frequency response: 20Hz-20kHz
- THD+Noise: <0.01%
- Crosstalk: >80dB
- Power supply: Universal SMPS PFC
- PFC: >0.96
- Power 1/4 @230VAC: 621W
- Power 1/8: 345W
- Idle: 20W
- Standby: 9W
- Amplification: Class D
- Cooling: Fan variable speed
- Max fan noise: 40dB
- Latency: 500uS
- Digital processing: 64bit
- GPIs: x4 (0-3.3V)
- Ethernet: Base-Tx 100Mb
- Sampling rate: 96kHz
- Resolution: 24bit
- Dynamic range: 113dB
- Dimensions: 482.6x88x281.5mm
- Weight: 5.4kg
- Shipping weight: 7.5kg
