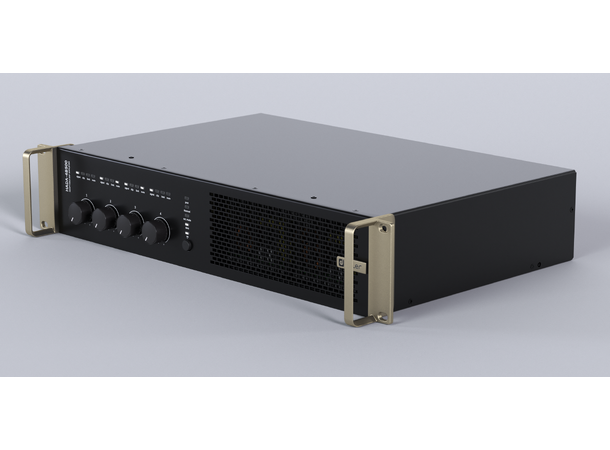

HADA-4B500
4x500W digital amplifier supporting low and high impedance loads, internal DSP configurable via HADA DSP Manager software, bridge mode for large-scale applications.
Main features
- 4 x 500W outputs @ 4ohms
- 2 x 1000W @ HiZ (100/70V) in bridge mode
- 4 analogue inputs on Euroblock connectors
- 4 GPI for remote volume control
- 1 External Mute
- Internal matrix mixer and signal processing
- HADA DSP Manager software
- Third party control via TCP/IP
Technical specifications
- Output channels: 4
- Max output @8 ohm: 250W
- @4 ohm: 500W
- @2.7 ohm: 360W
- @4 ohm bridge: 1000W
- @8 ohm bridge: 1000W
- @100V bridge: 1000W
- @70V bridge: 1000W
- Voltage gain: 31-37 dBV
- Frequency response: 20Hz-20kHz
- THD+Noise: <0.01%
- Crosstalk: >80dB
- PFC: >0.92
- Power 1/4 @230VAC: 827W
- Power 1/8: 427W
- Idle: 25.5W
- Standby: 20W
- Amplification: Class D
- Cooling: Fan variable speed
- Max fan noise: 46dB
- Latency: 500uS
- Digital processing: 64bit
- Ethernet: Base-Tx 100Mb
- Sampling rate: 96kHz
- Resolution: 24bit
- Dynamic range: 113dB
- Dimensions: 482.6x88x281.5mm
- Weight: 5.6kg
- Shipping weight: 7.78kg
