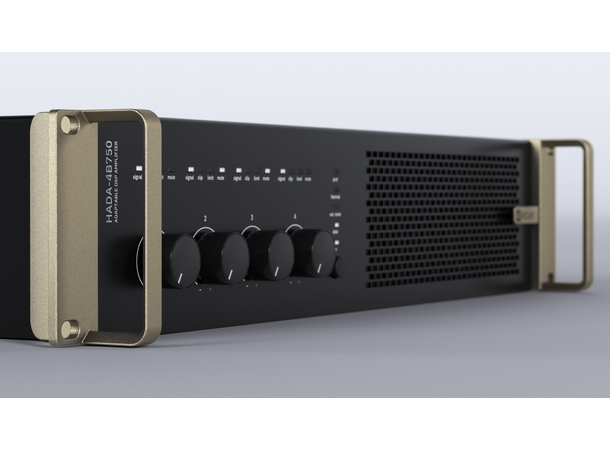

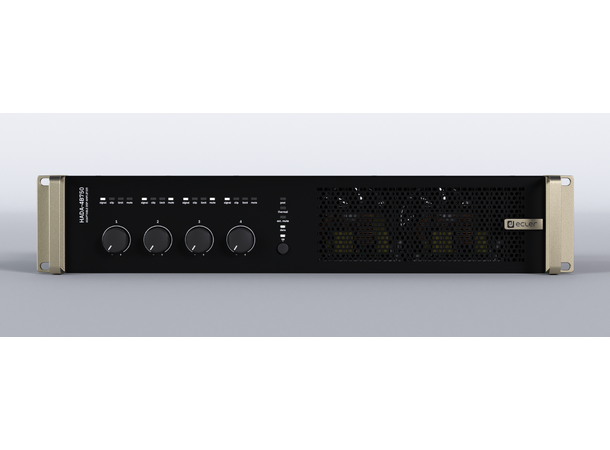

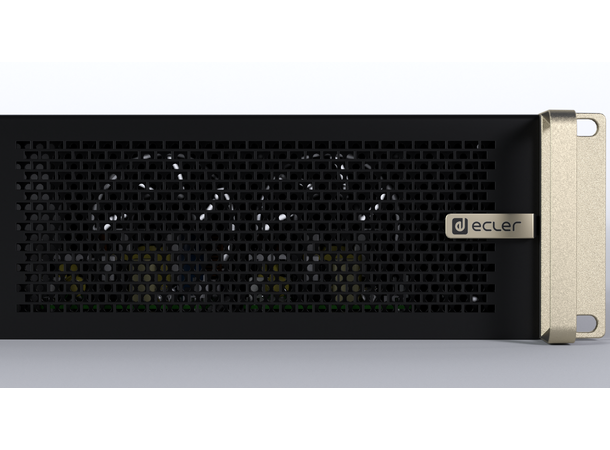

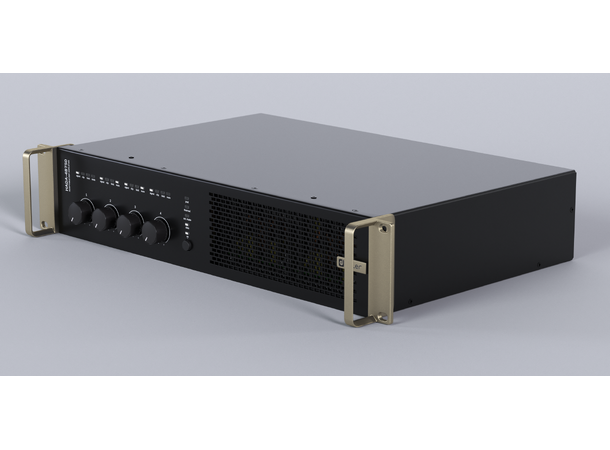

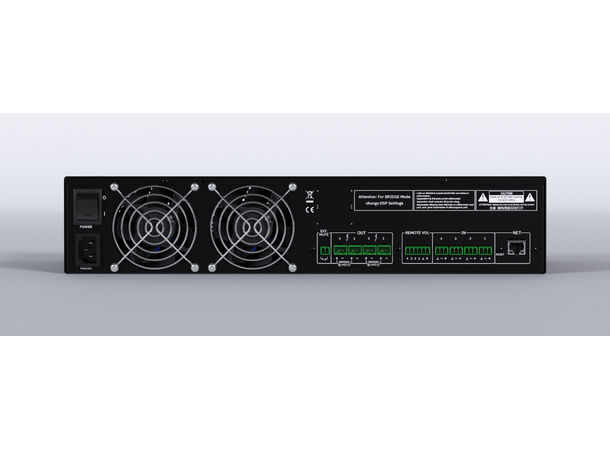

HADA-4B750
4x750W digital amplifier providing robust sound performance, Class D efficiency, versatile DSP adjustments, and multiple control options.
Main features
- 4 x 750W outputs @ 4ohms
- 2 x 1500W @ HiZ (100/70V) in bridge mode
- 4 analogue inputs on Euroblock connectors
- 4 GPI for remote volume control
- 1 External Mute
- Internal matrix mixer and signal processing
- HADA DSP Manager software
- Third party control via TCP/IP
Technical specifications
- Output channels: 4
- Max output @8 ohm: 400W
- @4 ohm: 750W
- @2.7 ohm: 600W
- @2 ohm: 450W
- @4 ohm bridge: 1400W
- @8 ohm bridge: 1250W
- @100V bridge: 1500W
- @70V bridge: 1500W
- Voltage gain: 31-38 dBV
- Frequency response: 20Hz-20kHz
- THD+Noise: <0.01%
- Crosstalk: >80dB
- PFC: >0.96
- Power 1/4 @230VAC: 1220W
- Power 1/8: 601W
- Idle: 23W
- Standby: 10W
- Amplification: Class D
- Cooling: Fan variable speed
- Max fan noise: 46dB
- Latency: 500uS
- Digital processing: 64bit
- Ethernet: Base-Tx 100Mb
- Sampling rate: 96kHz
- Resolution: 24bit
- Dynamic range: 113dB
- Dimensions: 482.6x88x281.5mm
- Weight: 6.0kg
- Shipping weight: 8.1kg
